Out of Stock

STP SURFACE SS NO TOUCH INFRARED EXIT BUTTON

Name: STP SURFACE SS NO TOUCH INFRARED EXIT BUTTON
Brand: STP
SKU: STP-NT200S
Price: 37.3 GBP
Availability: OutOfStock

£37.30 GBP

£37.30 GBP ~~Regular price: £0.00 GBP~~

(VAT Incl.)

Shipping calculated at checkout.

Adjustable door-open
IP65 (sensor unit only)

Out of stock

EAN: 71861-71861

SKU: STP-NT200S

Vendor: STP

Order within xx hours for delivery on

Product Specification

Voltage: 12–24 Vdc
Current draw: 45 mA max
Relay: COM/NO/NC contacts
Operating temperature: -10°C to +70°C

Box Content

STP-NT200S - Surface stainless steel no touch infrared exit button

Documents

Datasheet

Technical Features

Type: Surface stainless steel no touch infrared exit button
Illumination: Halo normally red, turning green when activated
Sensor: Infrared proximity sensor
Back-plate: Single gang stainless steel, screen printed ‘DOOR RELEASE’
Adjustable proximity range: 4 cm to 15 cm (+/- 25%)
Door-open period: Adjustable 0.5–20 s or toggle mode
Protection rating: IP65 (sensor unit only)

STP SURFACE SS NO TOUCH INFRARED EXIT BUTTON

£37.30 GBP

£37.30 GBP ~~Regular price: £0.00 GBP~~

(VAT Incl.)

Overview

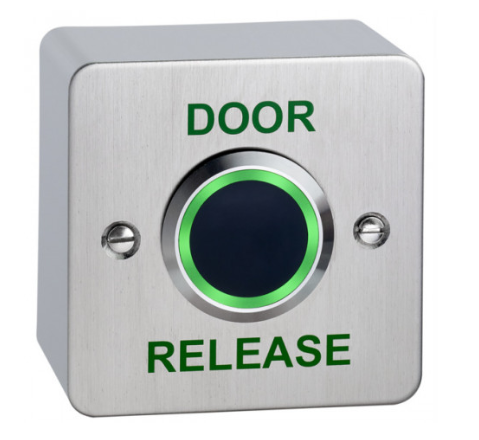

The SURFACE SS NO TOUCH INFRARED EXIT BUTTON STP-NT200S is a contactless proximity switch designed for hygienic, high-traffic environments like hospitals and laboratories. It features a durable, single-gang stainless steel faceplate screen-printed with "DOOR RELEASE" and includes a surface-mount back box for easy installation. The device utilizes an infrared sensor with an adjustable detection range of 4cm to 15cm and a programmable door-open relay period ranging from 0.5 to 20 seconds. For clear user feedback, an integrated LED halo glows red in standby mode and switches to green upon activation. Rated IP65 for environmental protection, this versatile button operates on 12-24V DC and provides standard COM/NO/NC relay contacts for seamless access control integration.
