STP STEALTH05

Name: STP STEALTH05
Brand: STP
SKU: STEALTH05
Price: 139.7 GBP
Availability: InStock

£139.70 GBP

£139.70 GBP ~~Regular price: £0.00 GBP~~

(VAT Incl.)

Shipping calculated at checkout.

Dual Door Smart Security

In stock, 1 unit

EAN: 5056599062085

SKU: STEALTH05

Vendor: STP

Order within xx hours for delivery on

Product Specification

Double slimline design for double doors
600lbs holding force on each side
Integrated lock monitoring for system feedback
Dual voltage compatibility (12V/24V DC)
Fail-safe operation for safety compliance
MOV surge and spike protection
Anti-residual magnetism protection
Compact design ideal for narrow frames
Stealth black professional finish

Box Content

1 × STP STEALTH05 Double Slimline Monitored Maglock
2 × Armature Plates
Top Mounting Plate
Fixing Screws and Installation Hardware

Documents

Datasheet

Technical Features

<ul>
<li>Brand: STP (Security Trade Products)</li>
<li>Model: STEALTH05</li>
<li>Product Type: Double Slimline Electromagnetic Maglock</li>
<li>Monitoring: Lock Status Monitoring (per side)</li>
<li>Holding Force: 275 kg (600 lbs) per side</li>
<li>Operating Voltage: 12V DC / 24V DC (Selectable)</li>
<li>Current Draw: 500mA @ 12V DC / 250mA @ 24V DC</li>
<li>Operation Mode: Fail-safe (Power to Lock)</li>
<li>Relay Output: COM / NO / NC (per side)</li>
<li>LED Indicator: Red/Green Status LED (each side)</li>
<li>Operating Temperature: -10°C to +55°C</li>
<li>Voltage Tolerance: ±15%</li>
<li>Mounting Type: Surface Mounted</li>
<li>Finish: Stealth Black</li>
<li>Fire Rated: Yes</li>
</ul>

STP STEALTH05

£139.70 GBP

£139.70 GBP ~~Regular price: £0.00 GBP~~

(VAT Incl.)

Overview

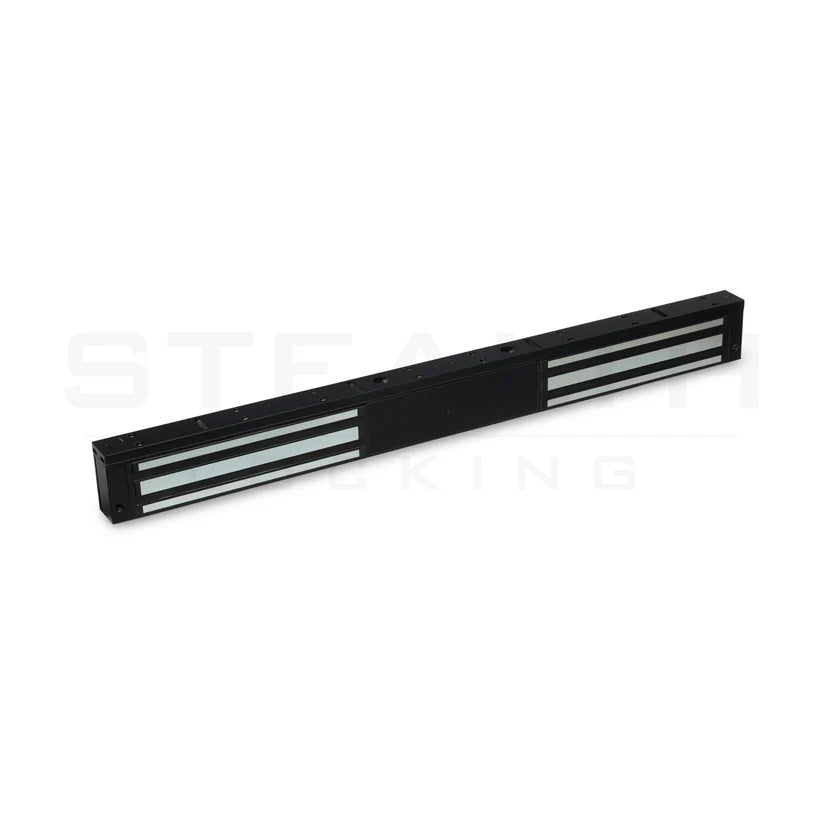

The STP STEALTH05 Black Double Slimline Monitored Maglock is a professional electromagnetic locking solution engineered specifically for double-door security applications. Featuring dual slimline magnets, each side provides up to 600lbs (275kg) holding force, ensuring reliable locking performance while maintaining a compact profile suitable for narrow frames. Integrated monitoring enables access control systems to confirm lock status, improving security management and system feedback. The lock supports selectable 12V or 24V DC operation, allowing flexible installation across various control systems. Built-in surge protection and anti-residual magnetism enhance durability and consistent operation. With fail-safe functionality and fire-rated construction, it is ideal for commercial buildings, offices, and controlled access environments requiring dependable double-door security.
