Out of Stock

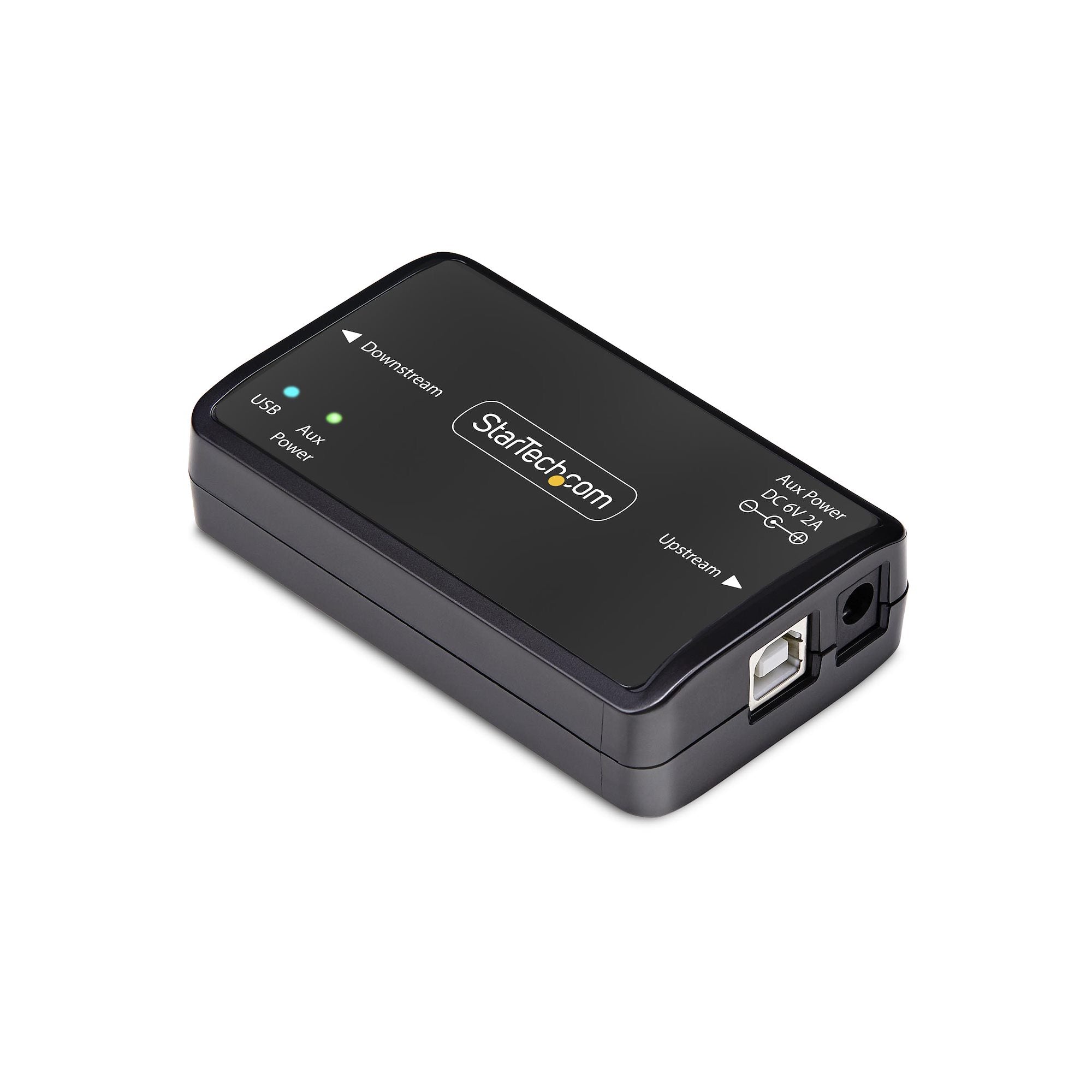

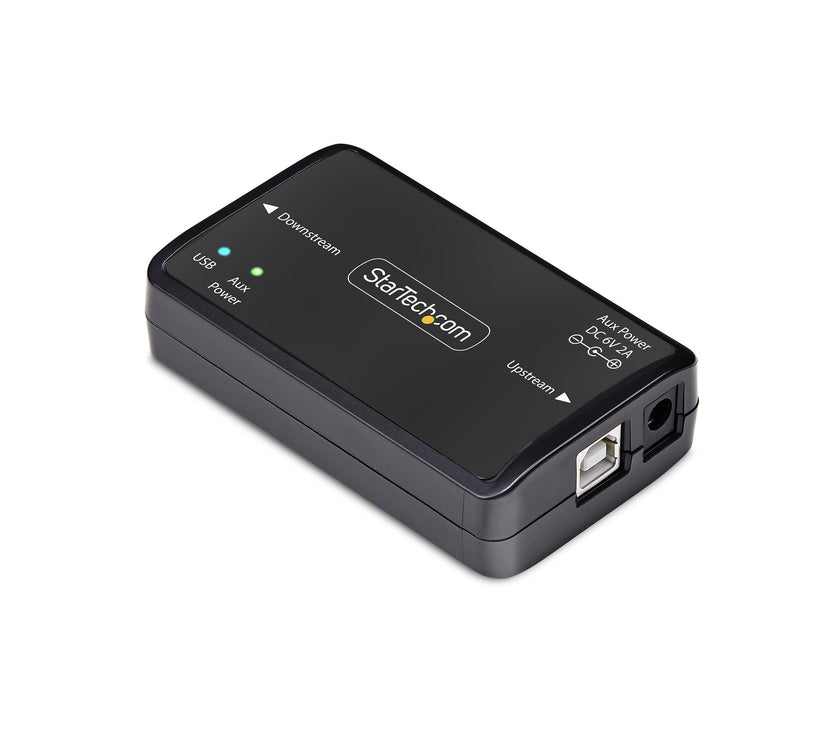

StarTech.com USB Isolator 6KV

Name: StarTech.com USB Isolator 6KV
Brand: StarTech
SKU: V377674
Price: 56.08 GBP
Availability: OutOfStock

£56.08 GBP

£56.08 GBP ~~Regular price: £0.00 GBP~~

(VAT Incl.)

Shipping calculated at checkout.

Plug-and-Play Simplicity
Electrical Protection

Out of stock

EAN: 65030909464

SKU: V377674

Vendor: StarTech

Order within xx hours for delivery on

Product Specification

Total USB Power Output: 5V
Connector A: 1 - USB 2.0 Type-A
Connector B: 1 - USB 2.0 Type-B
External Ports: 1 - Barrel Power Connector (Size M, OD: 5.50, ID: 2.10)
Type and Rate: USB 1.1 - 1.5 Mbit/s; USB 2.0 - 12 Mbit/s
Isolation: 6KV
Operating Temperature: -22 to 167°F (-30 to 75°C)
Storage Temperature: -40 to +185°F (-40 to +85°C)

Box Content

1 - USB Isolator
1 - 3ft (0.9m) USB-B to USB-A Cable
1 - Adhesive Strip
1 - DIN Rail Mounting Kit

Documents

Datasheet

Technical Features

USB Isolator: Protect USB devices and peripherals from ground loops and voltage spikes up to 6,000V with this galvanic isolator; Compact plug-and-play in-line isolator supports up to USB 2.0 (12Mbps) devices and 5V/250mA; DIN rail mountable; TAA-compliant
Protect Critical Equipment: Protect the host computer & connected device in automation, testing labs, & manufacturing; Suitable for mission-critical devices that need isolated protection from voltage fluctuations, electrical noise, & interference
Durable Construction: Enhanced durability, wear protection, & flame retardancy with UL rated PC-ABS housing; Rated IP40 for dust/water resistance; Extended temp range -22 to 167°F (-30 to 75°C)
Specifications: 6000V DC isolation up to 1 min; 5V 250mA or 5V 500mA (optional power supply); 3ft (0.9m) USB-B to USB-A cable; USB 1.1 (1.5Mbps) & 2.0 (12Mbps); Type M barrel plug; CE/LVD (2014/35/EU) & IEC/EN 62368-1 compliant; ABS & PC 94V-0 housing

StarTech.com USB Isolator 6KV

£56.08 GBP

£56.08 GBP ~~Regular price: £0.00 GBP~~

(VAT Incl.)

Overview

Safeguard sensitive computing equipment and USB devices from harmful voltage spikes, ground loops, and electrical interference with this USB Galvanic Isolator. Protect mission-critical devices from potential electrical hazards with 6,000V isolation for up to 1 minute. The voltage isolator is engineered to provide galvanic isolation even in harsh environments, with an operating temperature range of -22 to 167°F (-30 to 75°C), and IP40 housing.
