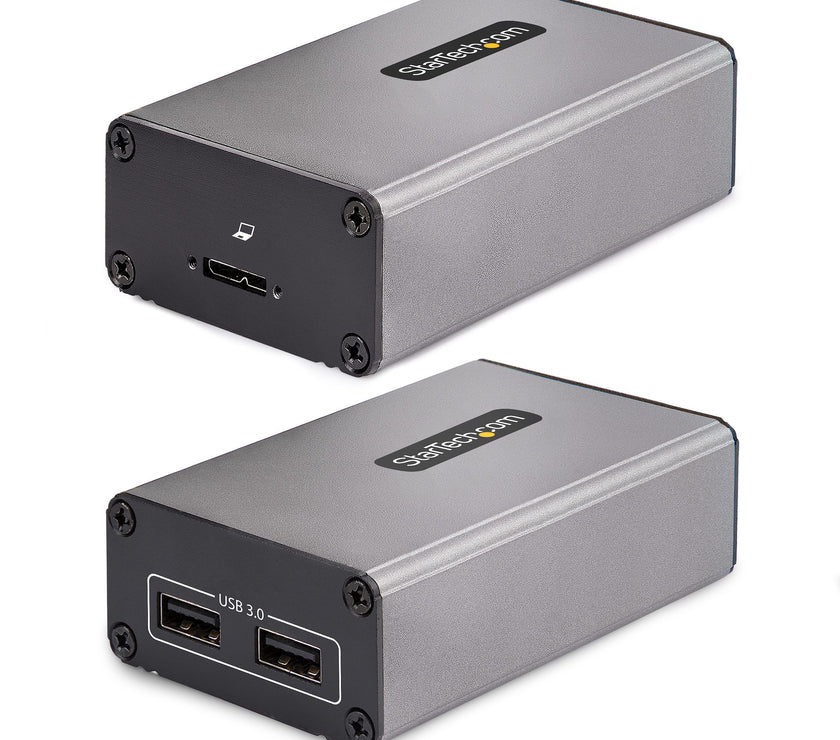

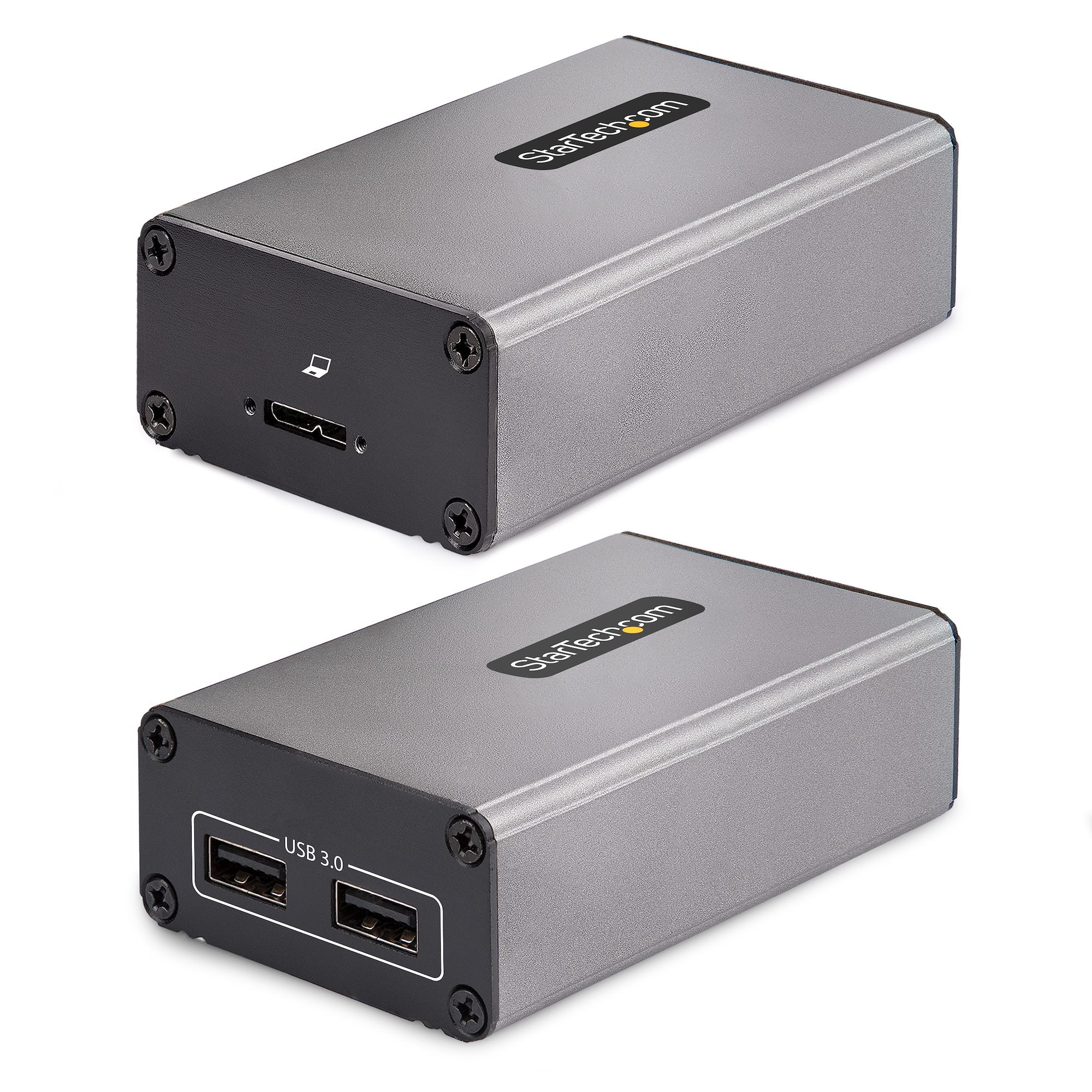

StarTech USB Fiber Extender

StarTech USB Fiber Extender

£1,034.41 GBP
Sale price: £1,034.41 GBP Regular price: £0.00 GBP
(VAT Incl.)
Shipping calculated at checkout.
  • Reliable Data Transfer
  • Durable Design
Out of stock
EAN: 65030897389
SKU: V294595
Vendor: StarTech
Order within xx hours for delivery on
Quantity
  • Interface: Fiber Ethernet

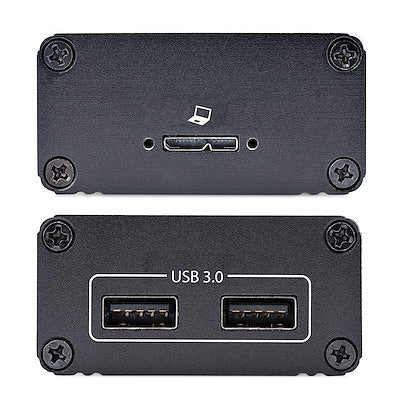

  • Connector A: 2 × USB Type-A (9-pin, 5 Gbps)
  • Connector B: 1 × Fiber Optic LC Duplex
  • External Ports: 1 × Fiber Optic LC Duplex
  • Host Connectors: 1 × USB 3.0 Micro-B (10-pin, SuperSpeed)
  • Operating Temperature: 32°F to 122°F (0°C to 50°C)
  • Storage Temperature: -4°F to 158°F (-20°C to 70°C)
  • 1 - Local Extender
  • 1 - Remote Extender
  • 1 - 50 cm USB Type A to USB Micro B Cable For Host Connection
  • 1 - Power Adapter
  • 1 - Quick-Start Guide

Datasheet

Overview

With this high-performance USB over Multimode Fiber Extender you can extend 5Gbps USB 3.2 Gen 1 signals over an OM3 LC to LC fiber cable with a range of up to 1150ft (350m). This USB fiber extender enables you to exceed the inherent distance and bandwidth limitations of copper CAT cable-based USB extenders. You can use this extender for various applications such as high-resolution (HD/4K) USB webcams (i.e. Logitech BrioPro, Google Camera), sensors, remote surveillance and monitoring equipment, controlling machines/equipment at a distance, SCADA systems, Point of Sale (POS) systems, printing/scanning, and remote data storage.

Technical Features
  • USB 3.2 Gen 1 Over Fiber Extender: Extends two USB 3.2 Gen 1 (5Gbps) devices up to 1150 ft (350 m) over OM3 multimode LC to LC fiber cable; durable aluminum construction for high wear environments
  • Connect Remote USB Devices: Functions as a two-port USB hub for cameras, POS devices, printers, scanners, plotters, keyboard/mouse, and storage; includes connection and power LEDs for activity and status
  • Reliable Data Transfer: Optical fiber is immune to EMI, ensuring signal integrity over long distances without degradation or interference
  • Active USB Extender: Remote receiver powered by secure locking adapter (5V, 0.9A per port); local transmitter is USB bus powered; includes screw-locking USB cable
  • Easy Setup: Driverless installation compatible with Windows, macOS, Linux; includes 2 × 10G MMF SFP+ modules; supports USB 3.2 Gen 1/2.0/1.1; not compatible with LAN equipment
