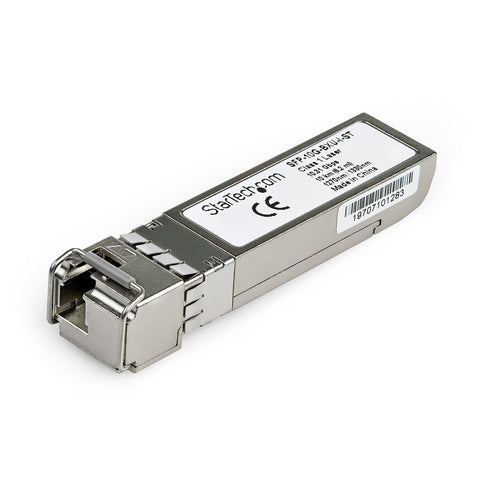

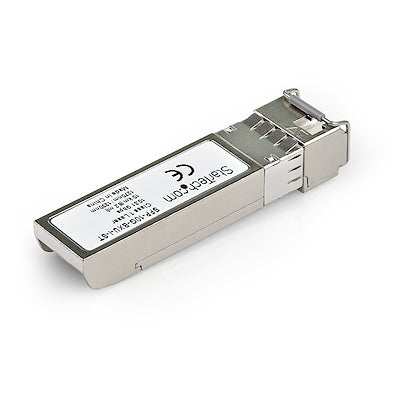

StarTech.com SFP-10G-BXU-I SFP - SM

StarTech.com SFP-10G-BXU-I SFP - SM

£104.70 GBP
Sale price: £104.70 GBP Regular price: £0.00 GBP
(VAT Incl.)
Shipping calculated at checkout.
  • Single Mode Fiber
  • LC Connector
Out of stock
EAN: 65030885867
SKU: V241713
Vendor: StarTech
Order within xx hours for delivery on
Quantity
  • Standard: 10GBASE-BX
  • Speed: 10Gbps
  • Direction: 10G Bi-Directional Upstream
  • Fiber type: Single Mode (SMF)
  • Connector type: LC Connector
  • Wavelength: 1270nm Tx / 1330nm Rx
  • Features: Digital Diagnostic Monitoring (DDM)
  • Maximum distance: Up to 10km (6.2mi)

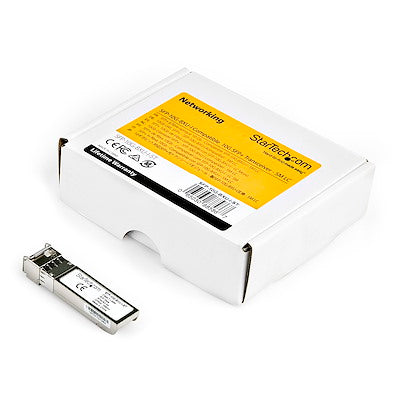

  • 1 - SFP+ Transceiver

Datasheet

Overview

The StarTech SFP-10G-BXU-I-ST is a Cisco-compatible SFP+ fiber transceiver for 10 Gigabit Ethernet (10GBASE-BX) networks, specifically an upstream module (BXU) for single-mode fiber, using a single fiber strand with different wavelengths (1270nm Tx, 1330nm Rx) for data transmission up to 10 km, pairing with a downstream module like the SFP-10G-BXD-I-ST for full duplex communication. It's hot-swappable, supports Digital Diagnostics Monitoring (DDM), and is designed for reliable network performance in compatible Cisco switches and routers.

Technical Features
  • 100% Cisco SFP-10G-BXU-I compatible: 10 Gigabit Ethernet BiDi Fiber Single Strand SFP+ works with Cisco switches like ASR9000, ASR1000, NCS5500, C3850, NCS540, and others
  • Increase bandwidth on existing infrastructure: Sends and receives over a single strand of fiber optic cable instead of two
  • Programmed & tested for compatibility: Compatible with OEM routers and switches; MSA compliant with DDM reporting transceiver status to most SNMP network management tools
