StarTech PCIe to Mini PCIe Adapter

StarTech PCIe to Mini PCIe Adapter

£34.15 GBP
Sale price: £34.15 GBP Regular price: £0.00 GBP
(VAT Incl.)
Shipping calculated at checkout.
  • Low profile installation
  • Pass-through design
Out of stock
EAN: 65030845793
SKU: V239895
Vendor: StarTech
Order within xx hours for delivery on
Quantity
  • Connector Type(s): 1 x PCI Express x1
  • Internal Ports: 1 x IDC (10 pin, Motherboard Header), 1 x USB B (4 pin), 1 x Mini PCI Express x1 (52 pin) Slot
  • Operating Temperature: 0°C to 55°C (32°F to 131°F)
  • Storage Temperature: -20°C to 85°C (-4°F to 185°F)
  • Humidity: 5% ~ 95% RH
  • Interface: Mini PCI Express
  • Bus Type: PCI Express
  • Card Type: Standard Profile (Low Profile bracket included)

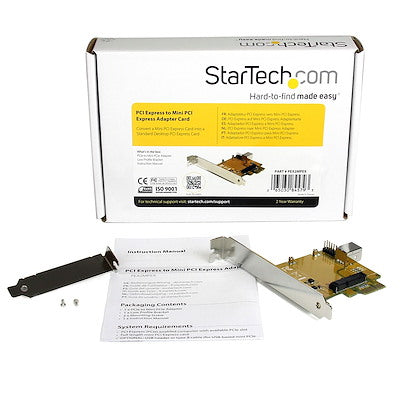

  • 1 - PCIe to Mini PCIe Adapter

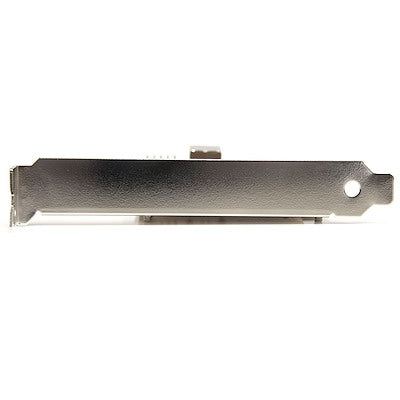

  • 1 - Low Profile Bracket
  • 2 - Mounting screws
  • 1 - Instruction Manual

Datasheet

Overview

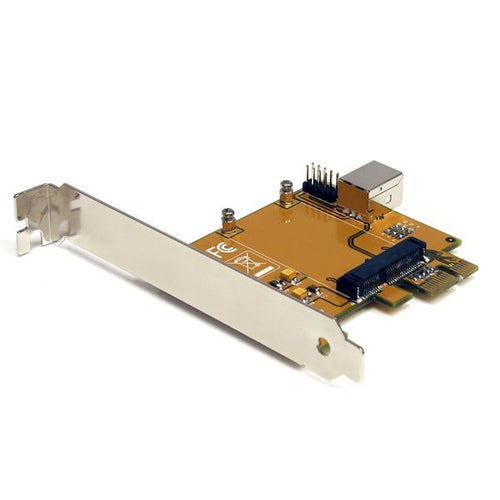

The PEX2MPEX PCI Express to Mini PCI Express Adapter Card enables Mini PCI Express cards (Mini Cards) to be used in a standard PCI Express card slot. These PCIe Mini Cards, which are typically designed for laptops or small form factor ITX computers, can be used normally inside more conventional desktop computers. The adapter card features a complete PCIe to Mini PCIe pass-through design that eliminates data transfer rate bottlenecks, while the included full and low profile installation brackets makes this adapter card compatible with most computer chassis.

Technical Features
  • Compatibility: Fits standard full-length Mini PCI Express cards
  • Design: Complete pass-through from Mini PCI Express to PCI Express
  • Installation: Low-profile bracket included
