StarTech PCIe Serial Card

StarTech PCIe Serial Card

£49.46 GBP
Sale price: £49.46 GBP Regular price: £0.00 GBP
(VAT Incl.)
Shipping calculated at checkout.
  • Out-of-band hardware
  • Data transfer rate of 460Kbps
Out of stock
EAN: 65030868297
SKU: V209411
Vendor: StarTech
Order within xx hours for delivery on
Quantity
  • Operating Temperature: -10°C to 80°C (14°F to 176°F)
  • Storage Temperature: -20°C to 100°C (-4°F to 212°F)
  • Humidity: 5~85% RH
  • Hardware Ports: 2
  • Interface: Serial
  • Bus Type: PCI Express
  • Card Type: Standard Profile (Low-profile bracket included)
  • Port Style: Integrated on Card
  • Chipset ID: SystemBase - SB16C1052PCI
  • 1 - serial card
  • 2 - low-profile brackets
  • 1 - driver CD
  • 1 - quick-start guide

Datasheet

Overview

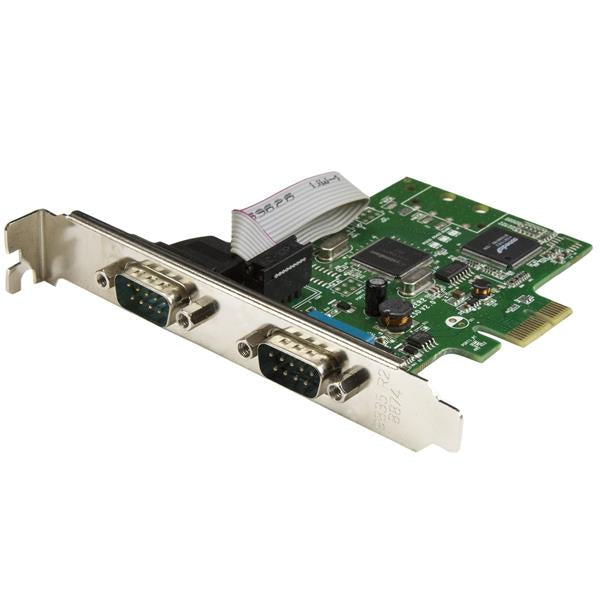

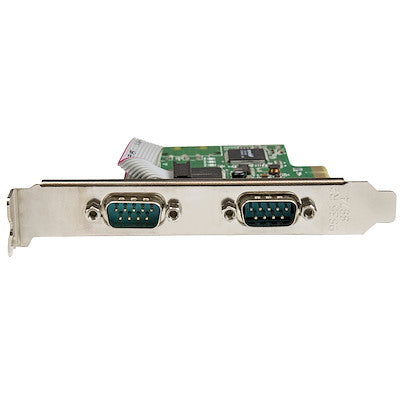

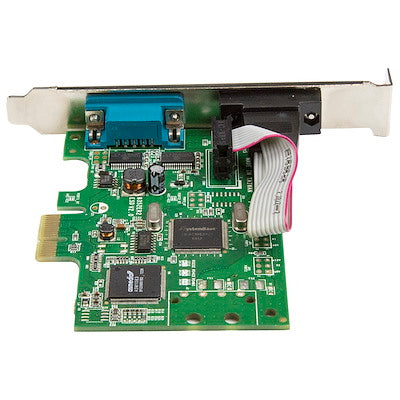

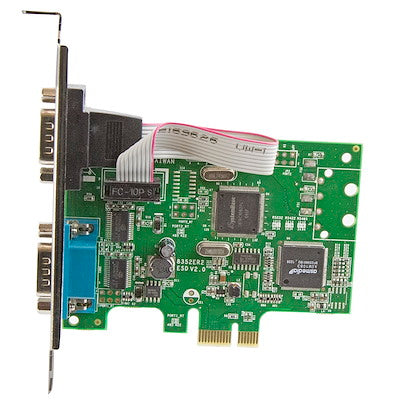

This PCI Express serial card adds two high-performance RS232 serial ports to your desktop computer or server, for connecting your serial-based devices and equipment The PCIe serial card can be installed into an available PCI Express slot, to provide two high-performance 16C1050 RS232 serial UART channels/ports. It offers a convenient solution for connecting modern or legacy equipment to newer computer systems that don't have RS232 ports. The serial card is compliant with PCI Express 1.0a specification, and it's compatible with 1x, 2x, 4x, 8x and 16x PCI Express slots.

Technical Features
  • Dual-Channel UART: 16C1050 UART for full compatibility with 16C1050 devices
  • Maximum Data Transfer Rate: 460Kbps
  • PCIe Compliance: PCI Express 1.0a specification, compatible with 1x, 2x, 4x, 8x, and 16x PCIe bus
  • FIFO: 256-byte deep FIFO per transmitter and receiver
  • Flow Control: In-band software flow control (programmable Xon/Xoff) and out-of-band hardware flow control (RTS/CTS)
  • Data Bits Support: 5, 6, 7, or 8 data bits
  • Bracket Options: Standard profile bracket installed; optional dual low-profile brackets included
