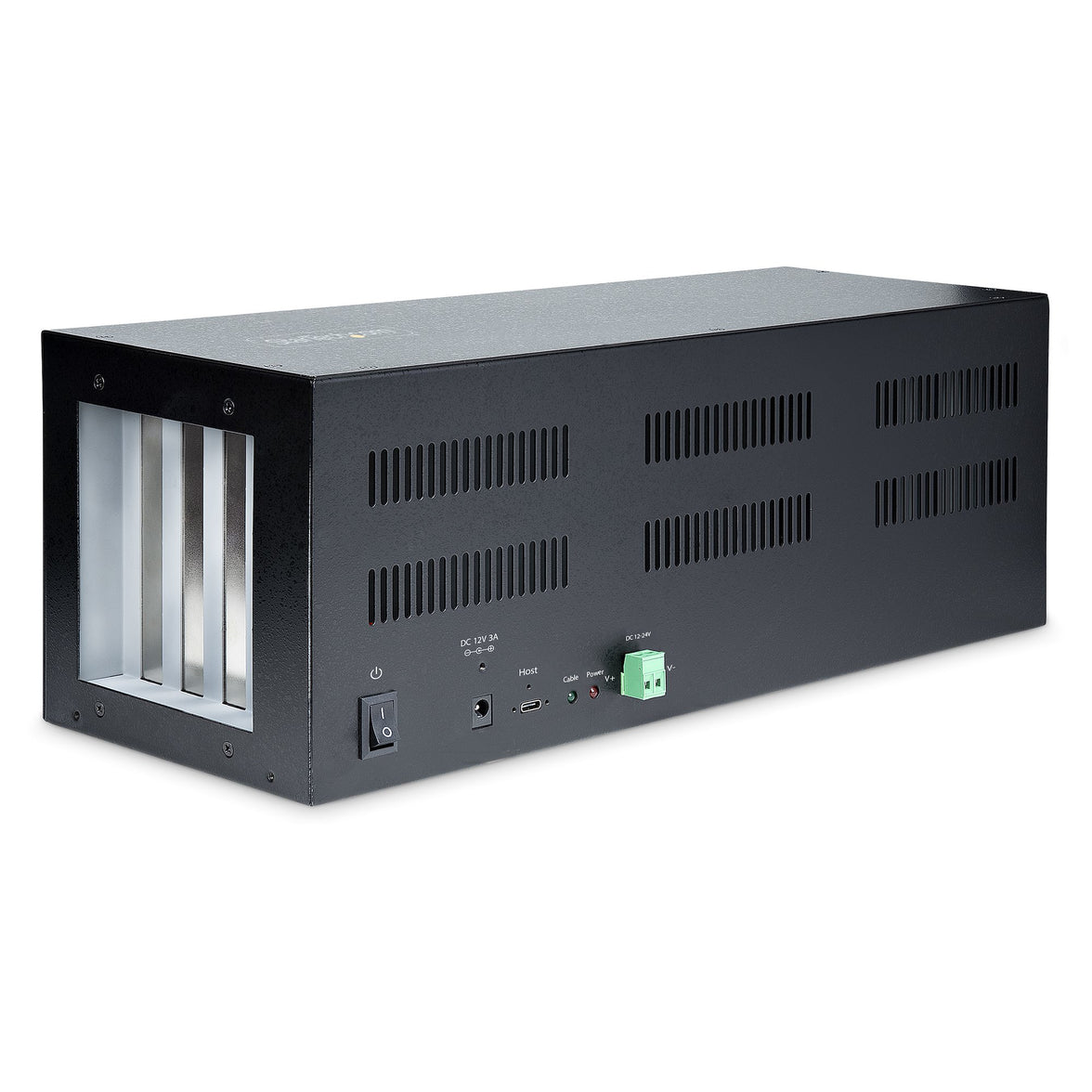

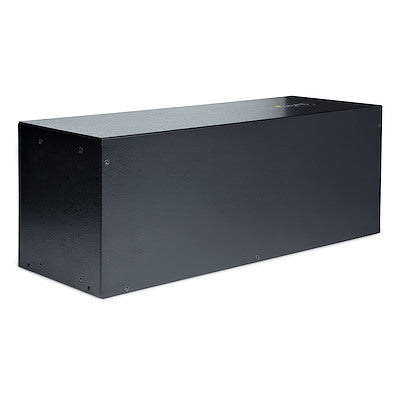

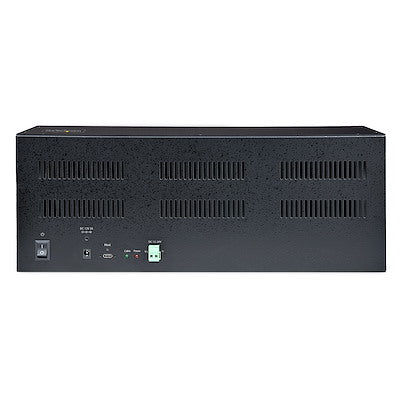

StarTech.com PCIe Expansion Slots

Name: StarTech.com PCIe Expansion Slots
Brand: StarTech
SKU: V302289
Price: 401.14 GBP
Availability: OutOfStock

£401.14 GBP

£401.14 GBP ~~Regular price: £0.00 GBP~~

(VAT Incl.)

Shipping calculated at checkout.

External PCIe Expansion Box
Upgrade or swap cards with ease

Out of stock

EAN: 65030894630

SKU: V302289

Vendor: StarTech

Order within xx hours for delivery on

Product Specification

Operating Temperature: 0 to 60°C (32 to 140°F)
Storage Temperature: -20 to 75°C (-4 to 167°F)
Humidity: 5 to 95% (non-condensing)
Interface: PCI Express
Bus Type: PCI Express
Card Type: Standard Profile (Low-profile bracket included)
Port Style: Integrated on Card
Industry Standards: PCI Express 2.0, USB Type-C
Chipset ID: ASMedia - ASM1806

Box Content

1 - PCIe to PCIe Expansion Chassis
1 - PCIe Host Adapter Card
1 - 6ft (1.8m) USB Type-C to C Male to Male Cable
1 - Low-Profile Bracket
1 - Universal Power Adapter
1 - Terminal Block Connector
2 - Mounting Brackets
4 - Mounting Brackets Screws
1 - Quick-Start Guide

Documents

Datasheet

Technical Features

Expansion Chassis for PCIe Cards: Adds four external PCIe x1 slots to a desktop or server; includes PCI Express 2.0 x2 proprietary USB-C host card with locking port and 5.9ft (1.8m) USB-C locking cable.
Rugged Construction: Built with SECC steel for durability up to 140°F (60°C); vented chassis for cooling; quiet operation; includes 12V 3A power adapter; terminal block port supports 12-24 VDC.
Hassle-Free Upgrades: Connect add-on cards such as USB, Ethernet, SFP, Serial, and I/O cards to systems with limited expansion slots; reduces deployment time and cost.
Compatibility: OS independent; works with Windows, macOS, and Linux; installed cards may require drivers; not intended for GPU use.

StarTech.com PCIe Expansion Slots

£401.14 GBP

£401.14 GBP ~~Regular price: £0.00 GBP~~

(VAT Incl.)

Overview

The robust expansion chassis supports 4 PCIe x1 add-on cards and features up to 10Gbps of total bandwidth. The expansion chassis connects to the host using a proprietary USB-C PCIe x2 adapter card and a locking USB Type-C cable. Take advantage of features such as Wake-on-LAN (WoL), support for PCI Express Advanced Error Reporting (AER), backwards compatibility, and multiple power capabilities.
