StarTech Parallel Header Slot Plate

StarTech Parallel Header Slot Plate

£4.02 GBP
Sale price: £4.02 GBP Regular price: £0.00 GBP
(VAT Incl.)
Shipping calculated at checkout.
  • PVC jacket
  • Unshielded ribbon cable
Out of stock
EAN: 65030828468
SKU: V239923
Vendor: StarTech
Order within xx hours for delivery on
Quantity
  • Product Height: 0.5 in [1.2 cm]
  • Weight of Product: 1.8 oz [50.0 g]
  • Product Width: 4.7 in [12.0 cm]
  • Color: Gray
  • Wire Gauge: 28 AWG
  • Cable Length: 16.0 in [406.4 mm]
  • Product Length: 16.0 in [40.6 cm]
  • 1x 16in DB25 Parallel Female to IDC 25 Pin Header Slot Plate

Datasheet

Overview

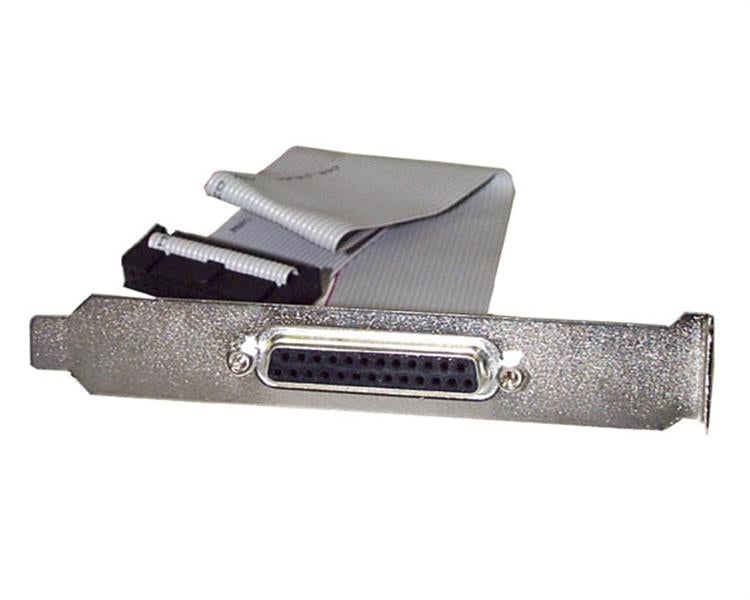

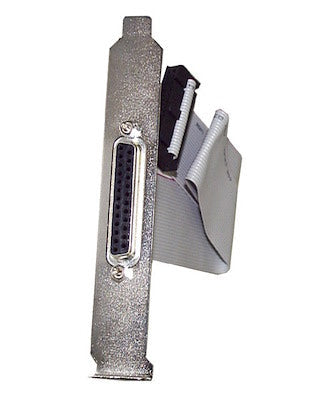

The StarTech Parallel Header Slot Plate (PLATE25F16) is a simple yet effective adapter cable designed to add a legacy DB25 female parallel port to a computer's expansion slot. It connects internally to a 26-pin IDC header on the motherboard and provides a standard parallel port for peripherals like old printers or scanners.This product is highly regarded for its easy installation and ability to enable the use of legacy hardware on modern PCs, assuming the motherboard has the required internal header.

Technical Features
  • Connector A: 1 x DB25 (25 pin, D-Sub) Female port, mounted on the slot plate
  • Connector B: 1 x IDC (26 pin, Motherboard Header) Female socket, designed to connect to the 26-pin parallel header on a compatible motherboard
  • Cable Length: Approximately 16 inches (406.4 mm or 1.33 ft)
  • Cable Type: Flat, gray, unshielded ribbon cable
  • Wire Gauge: 28 AWG
  • Jacket Material: PVC (Polyvinyl Chloride)
  • Product Weight: Approximately 45.0 grams (1.6 oz)
  • Environmental Compliance: RoHS compliant
