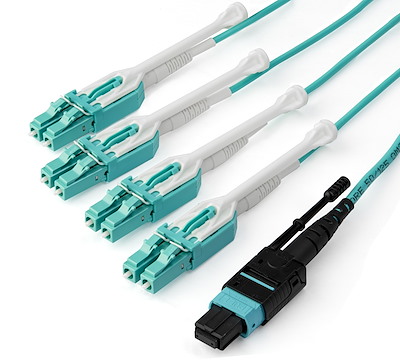

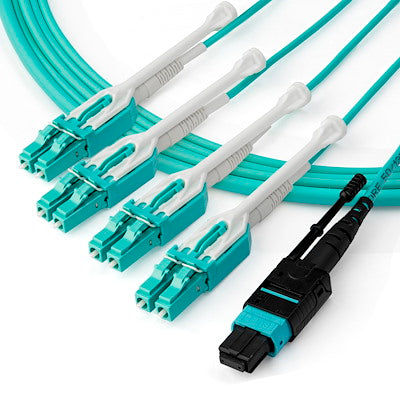

StarTech.com MTP / LC Fan-Out Cbl

This MPO/MTP to 4x LC breakout cable lets you fan out a single 40Gbps connection from a 40GBase-SR4 QSFP+ transceiver to four 10Gbps LC SFP+ transceivers. The push-and-pull tabs optimize accessibility and let you install or remove the connectors with one hand, without having to use additional tools. Plus, the slim uniboot design of the LC connectors saves space and improves cable management. The MPO cable is housed in a plenum-rated jacket and is ideal for installations where CMP fire rating is required. Each OM3 fiber cable has been individually tested for insertion loss and return loss. The full test report is included in each cable bag.

• Type: OM3 Fiber Cable; MTP(F)/PC to 4x LC/PC Duplex Breakout; single 40 Gbps connection to four LC duplex connectors; ideal for high-density server, switch, QSFP+, and SFP+ connections
• Quality Construction: OFNP jacket emits low smoke/fumes; 50/125µm fiber core/cladding immune to EMI; MTP Push-Pull Tabs with flexible extensions for easy installation/removal
• Ratings and Reliability: Individually tested for signal integrity; test report included; rated for plenum and in-wall installations; MTP/MPO and LC connectors with PC polished ends maintain low insertion loss
• Compatibility: Supports 40 Gbps for high-density applications like SANs, data servers, and QSFP+ transceivers; connects 40GBase-SR4 QSFP+ module to four LC SFP+ transceivers
