StarTech.com MTP / LC Fan-Out Cbl

Name: StarTech.com MTP / LC Fan-Out Cbl
Brand: StarTech
SKU: V243890
Price: 35.97 GBP
Availability: OutOfStock

£35.97 GBP

£35.97 GBP ~~Regular price:~~

(VAT Excl.)

Shipping calculated at checkout.

Plenum Rated
OFNP Fiber

Out of stock

EAN: 65030878432

SKU: V243890

Vendor: StarTech

Order within xx hours for delivery on

Product Specification

Length: 1m (3.3ft)
Color: Aqua (OM3)
Speed: 40 Gbps

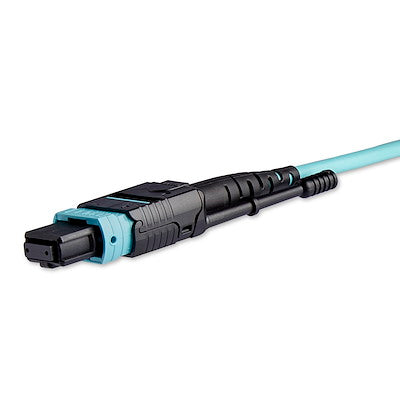

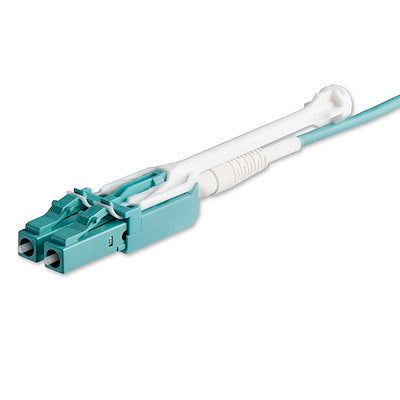

Connector Type: MTP(F)/PC to 4x Duplex LC Breakout
Wavelength: 850nm or 1300nm VCSEL
Modal Bandwidth: 2000MHz·km at 850nm
Cable OD: 3.0mm (MTP), 2.0mm (LC)
Insertion Loss: Below 0.5dB (MTP), 0.2dB (LC)

Box Content

1 - fiber optic cable

Documents

Datasheet

Technical Features

OM3 FIBER CABLE: MTP(F)/PC to 4x LC/PC Duplex Breakout Multimode Fiber Cable features a single 40 Gbps connection to four LC duplex connectors; Ideal for high density connections between servers, switches, QSFP+ and SFP+ transceivers
QUALITY CONSTRUCTION: OFNP jacket emits low-smoke and fumes if combusted; 50/125µm fiber core/cladding is immune to EMI; MTP Push-Pull Tabs with Flexible Extensions facilitates convenient installation and removal
RATINGS AND RELIABILITY: Individually tested for signal integrity; Test report included with each cable; Rated for plenum and in-wall installations; MTP/MPO and LC connectors with PC polished ends maintains low insertion loss
COMPATIBILITY: OM3 MTP/MPO multimode cable supports 40 Gbps for high-density network applications such as SANs, data servers, and QSFP+ transceivers; Connect from a 40GBase-SR4 QSFP+ module to four LC SFP+ transceivers

StarTech.com MTP / LC Fan-Out Cbl

£35.97 GBP

£35.97 GBP ~~Regular price:~~

(VAT Excl.)

Overview

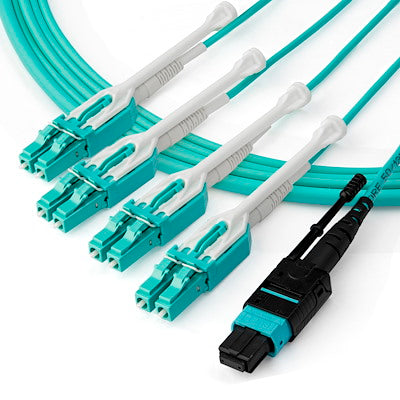

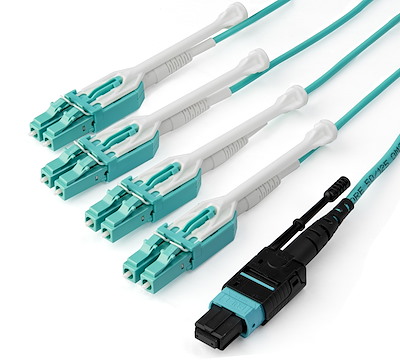

This MPO/MTP to 4x LC breakout cable lets you fan out a single 40Gbps connection from a 40GBase-SR4 QSFP+ transceiver to four 10Gbps LC SFP+ transceivers.The push-and-pull tabs optimize accessibility and let you install or remove the connectors with one hand, without using additional tools. Plus, the slim uniboot design of the LC connectors saves space and improves cable management. The MPO cable is housed in a plenum-rated jacket and is ideal for installations where CMP fire rating is required.
