StarTech.com MTP / LC Fan-Out Cbl

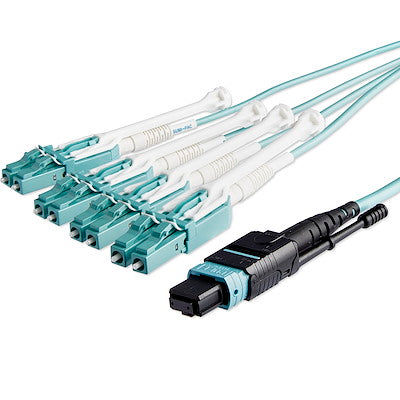

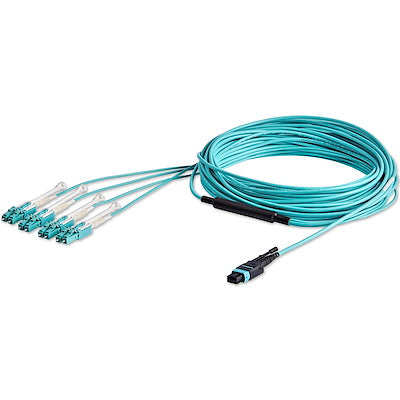

This MPO/MTP to 4x LC breakout cable lets you fan out a single 40Gbps connection from a 40GBase-SR4 QSFP+ transceiver to four 10Gbps LC SFP+ transceivers. The push-and-pull tabs optimize accessibility and let you install or remove the connectors with one hand without using additional tools. Plus, the slim uniboot design of the LC connectors saves space and improves cable management. The MPO cable is housed in a plenum-rated jacket and is ideal for in-wall installations or anywhere CMP fire rating is required. Each OM3 fiber cable has been individually tested for insertion loss and return loss. The full test report is included in each cable bag.

• Type: OM3 Fiber Cable, MTP(F)/PC to 4x LC/PC Duplex Breakout Multimode Fiber Cable
• Connection: Single 40 Gbps connection to four LC duplex connectors, ideal for high-density connections between servers, switches, QSFP+ and SFP+ transceivers
• Construction quality: OFNP jacket emits low smoke and fumes if combusted; 50/125µm fiber core/cladding immune to EMI; MTP Push-Pull Tabs with flexible extensions for easy installation and removal
• Ratings and reliability: Individually tested for signal integrity; test report included; rated for plenum and in-wall installations; MTP/MPO and LC connectors with PC polished ends maintain low insertion loss
• Compatibility: Supports 40 Gbps for high-density network applications such as SANs, data servers, and QSFP+ transceivers; connects from a 40GBase-SR4 QSFP+ module to four LC SFP+ transceivers
