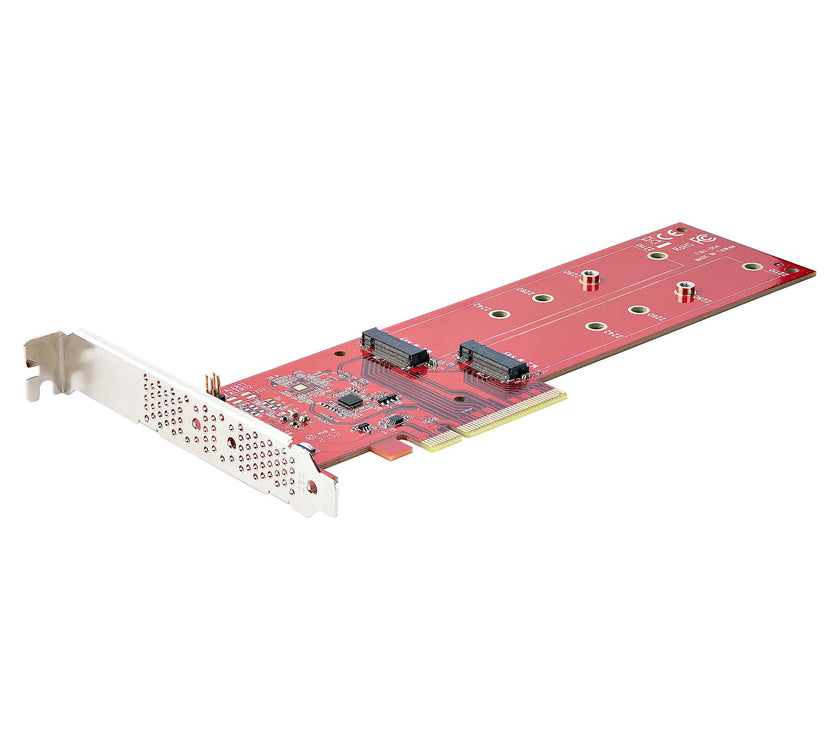

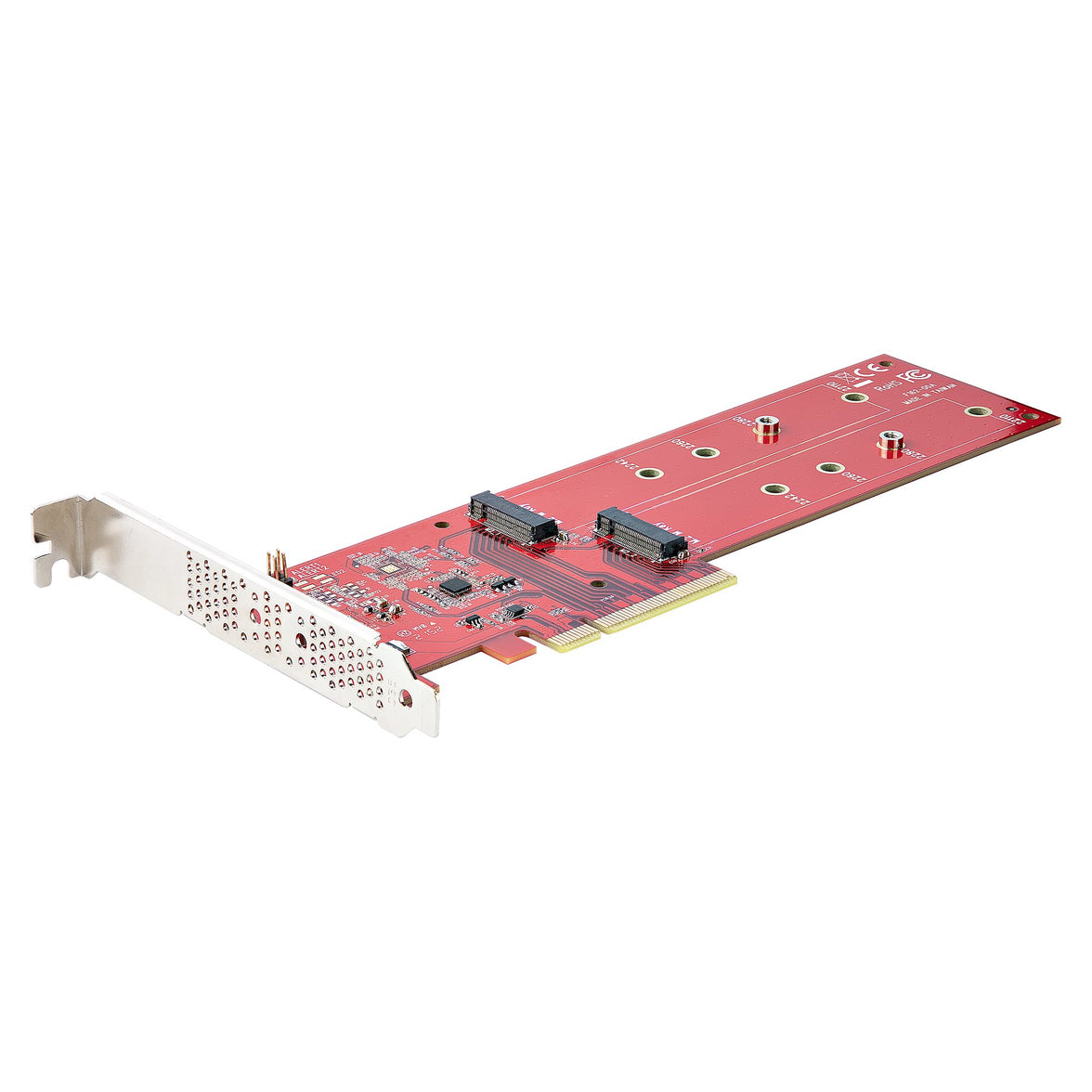

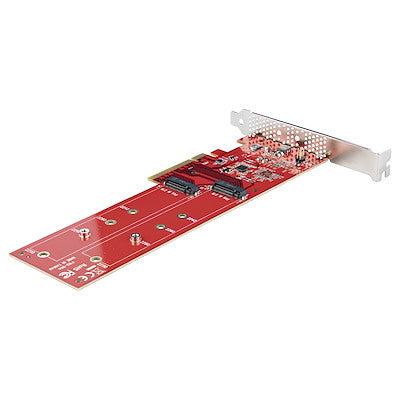

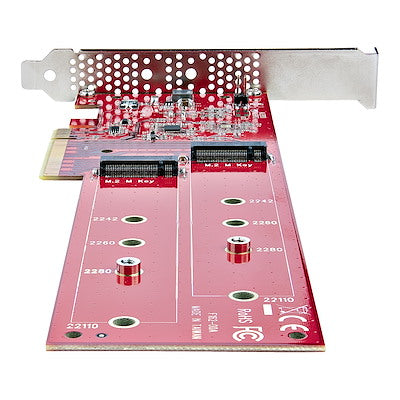

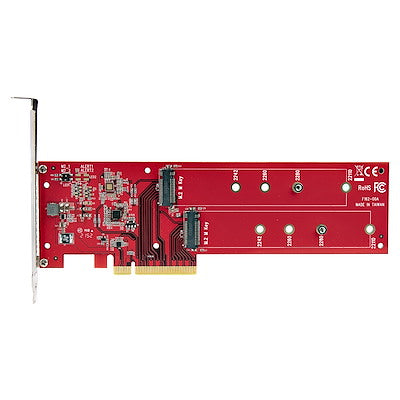

StarTech.com M.2 PCIe SSD Adapter

This Dual M.2 PCIe SSD Adapter adds two high performance PCIe M.2 SSDs (NVMe and AHCI) into the PCIe x8 or x16 slot of a desktop, workstation, or server. Take full advantage of the fast performance and compact size of PCIe M.2 internal solid-state drives, with read and write speeds up to 7.8GBps per drive. No on-board chip leads to wide system compatibility. This card requires PCIe bifurcation, meaning it easily integrates into any system with an available x8 or x16 PCIe slot that supports PCIe bifurcation.

• High performance: Install 2x PCIe M.2 SSDs (NVMe or AHCI) via x8 or x16 PCIe 4.0 slot for ultra-fast data access; Read/write speeds up to 7.8GBps per drive
• Wide compatibility: Tested with Samsung 980 Pro, 970 EVO, 950 EVO, SM951, and other 2242/2260/2280/22110mm PCIe M-Key M.2 SSDs; Not compatible with SATA-based M.2 drives
• Backwards compatibility: Works with PCIe 3.0 motherboards with PCIe bifurcation and available x8/x16 PCIe slot; Compatible with Windows, Windows Server, and Linux
• Software RAID functionality: Enables access to M.2 PCIe SSDs individually; OS or 3rd party RAID software allows RAID 0, RAID 1, or JBOD setup

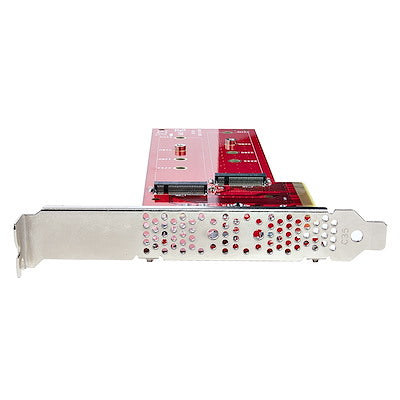

• Vented brackets: Includes full profile bracket and low-profile (half-height) bracket; Vented design improves airflow to prevent overheating and drive throttling
