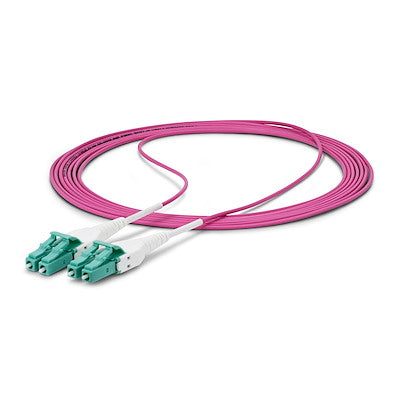

StarTech.com LC/LC Fiber Cable

StarTech.com LC/LC Fiber Cable

£48.47 GBP
Sale price: £48.47 GBP Regular price: £0.00 GBP
(VAT Incl.)
Shipping calculated at checkout.
  • Optimal Performance
  • OFNR Riser Rated
Out of stock
EAN: 65030920827
SKU: V427634
Vendor: StarTech
Order within xx hours for delivery on
Quantity
  • Length: 30 meters (100 feet)
  • Color: Erika Violet (OM4)
  • Connector: LC/LC UPC
  • Fiber Type: 50/125µm multimode
  • Wavelength: 850nm/1300nm LED/VCSEL
  • Modal Bandwidth: 2000 MHz/km at 850nm
  • Jacket: OFNR (Riser)
  • Cable Outer Diameter: 1.6mm
  • Minimum Bend Radius: 7.5mm (0.29 in)
  • 1 - 30m OM4 Multimode Fiber Optic Cable LC - LC

Datasheet

Overview

This OM4 LC to LC Multimode Duplex Fiber Optic Patch cable delivers reliable connectivity across 40 and 100 Gigabit networks. The TIA-standard Erika Violet jacket clearly distinguishes OM4 from Aqua OM3/OM4 cabling, eliminating guesswork in critical network setups. The compact uniboot connector design enables easy insertion and removal in high-density installations.

Technical Features
  • Erika Violet OM4: OM4 multimode fiber cable immune to EMI, supporting up to 100Gbps; Erika Violet jacket follows TIA standards for OM4, avoiding confusion with Aqua cables; compact uniboot design improves airflow and access in dense installations.

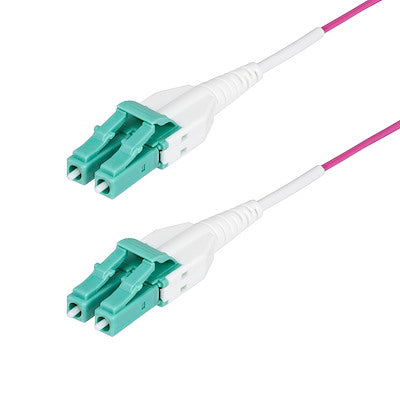

  • Quality Construction: LC/LC connectors with UPC polished ends enhance return loss; molded strain reliefs reduce wear from bending; Aramid yarn increases tensile strength.
  • Safety and Reliability: Individually tested for OM4 performance with included test report; OFNR riser-rated jacket limits flame spread in riser spaces; attenuation of 3dB/km meets TIA standards.
  • Wide Compatibility: Supports 1/10/40/100 Gbps full duplex, backward compatible with OM3, ideal for SANs, data servers, fiber switches, and LC-based SFP/SFP+ transceivers.
