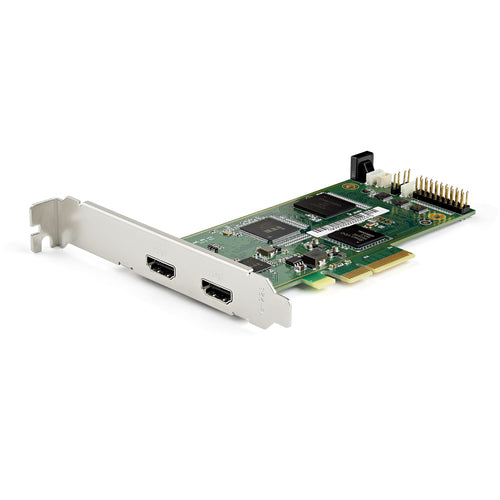

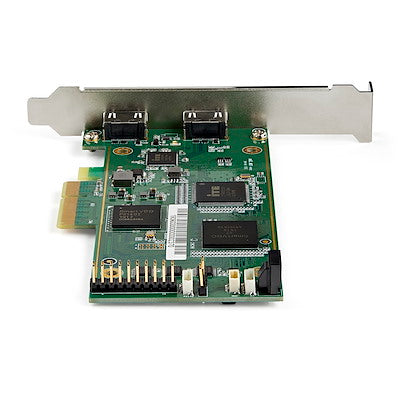

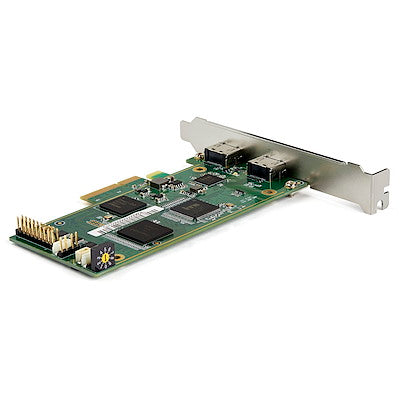

StarTech HDMI Capture Card

StarTech HDMI Capture Card

£185.52 GBP
Sale price: £185.52 GBP Regular price: £0.00 GBP
(VAT Incl.)
Shipping calculated at checkout.
  • Pass-Through Port
  • H.264 Encoding
Out of stock
EAN: 65030883801
SKU: V271393
Vendor: StarTech
Order within xx hours for delivery on
Quantity

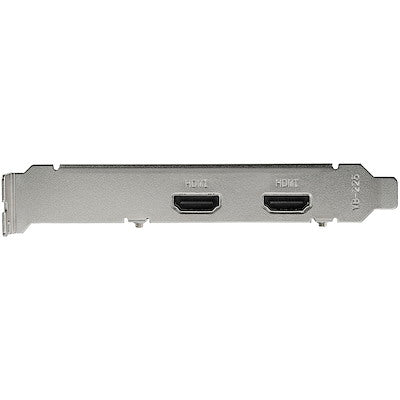

  • Connector A: 2 x HDMI (19 pin)
  • Connector B: 1 x PCI Express x4
  • Operating Temperature: 0°C to 40°C (32°F to 104°F)
  • Storage Temperature: -5°C to 40°C (23°F to 104°F)
  • Humidity: 20–80% RH Non-Condensing
  • AV Input: HDMI 2.0
  • AV Output: HDMI
  • Audio: Yes
  • Industry Standards: NTSC, PAL-M, PAL-60, PAL
  • 1 - PCI Express HDMI Capture Card
  • 1 - Low-Profile Bracket
  • 1 - Quick-Start Guide

Datasheet

Overview

You can install the HDMI capture card into any low-profile or full-profile PCIe slot, including fixed workstations such as 2U or 4U rack-mounted servers or media centers. With frame rates up to 60fps (frames per second) and H.264 encoding, this PCIe HDMI capture card is perfect for capturing ultra high-definition video for editing, compiling, and archiving. HDR10 is available through HDMI 2.0a support.

Technical Features
  • 4K Video Capture: PCIe HDMI capture card (x4 slot) captures unprotected 4K 60Hz video via HDMI 2.0; 4096x2160p 60fps, HDR10, 2ch audio, 16:9 & 4:3 aspect ratio; simultaneous watch & record
  • Applications: Record conference calls, camera feeds, medical imaging; includes Streamcatcher; supports OBS; live streaming via RTSP/RTMP; compatible with Teams & Zoom
  • Compatibility: Supports H.264 (MPEG-4) encoding; out-of-the-box solution with included or third-party software; comes with low & full profile brackets
  • OS Compatibility: Windows 8–11; NTSC/PAL systems; HDCP compliant, cannot capture protected content like Blu-ray or Mac video output
