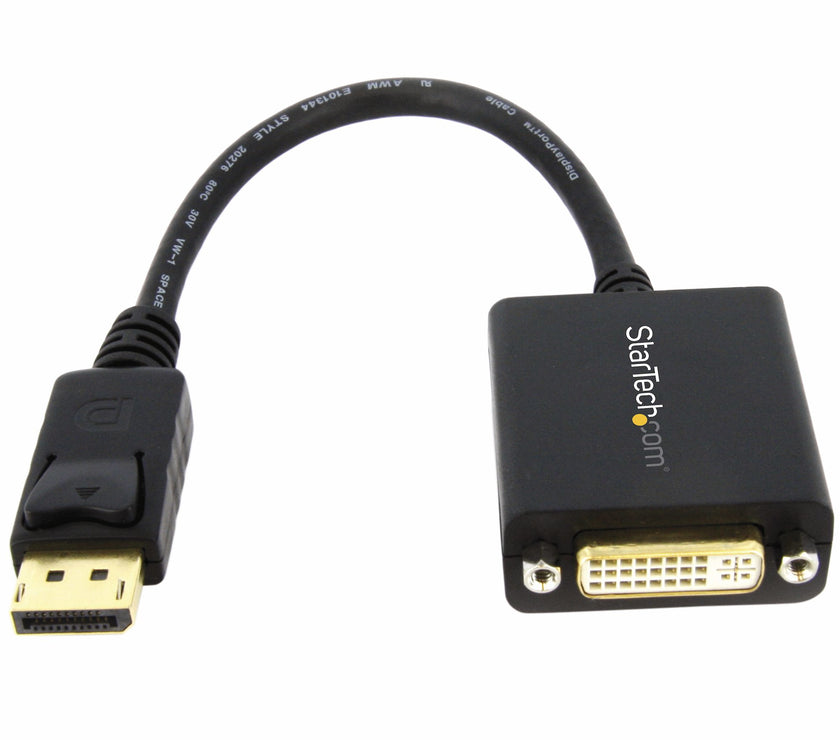

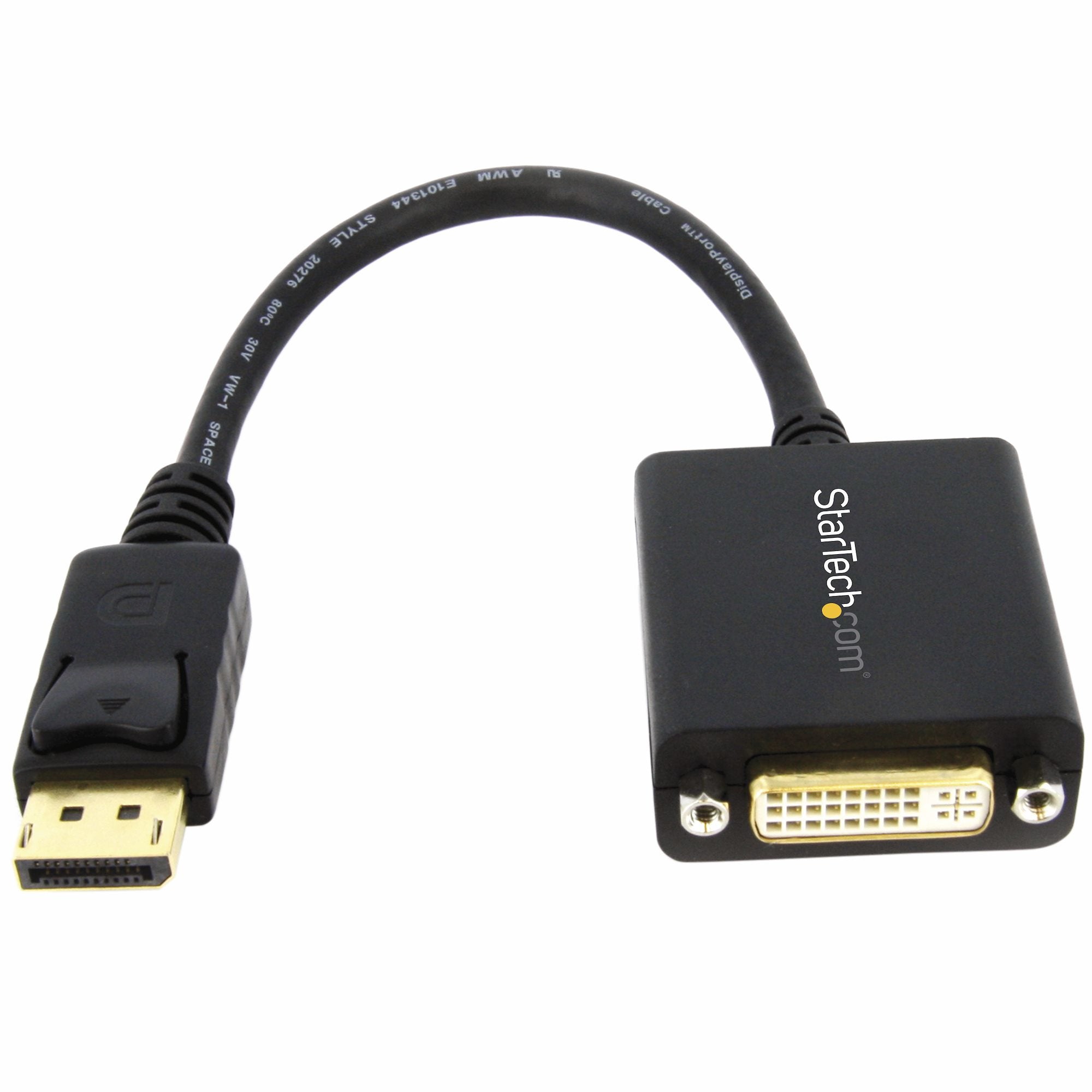

StarTech.com DisplayPort to DVI Adapter

StarTech.com DisplayPort to DVI Adapter

£8.36 GBP
Sale price: £8.36 GBP Regular price: £0.00 GBP
(VAT Incl.)
Shipping calculated at checkout.
  • Passive video converter
  • Easy to use
In stock, 31 units
EAN: 65030836869
SKU: V208980
Vendor: StarTech
Order within xx hours for delivery on
Quantity

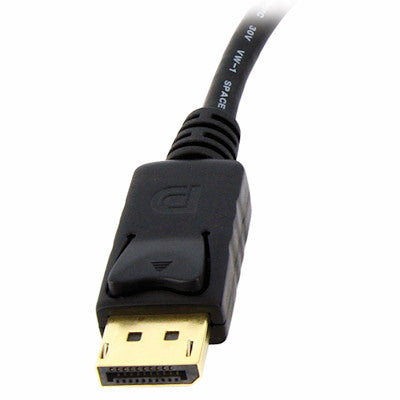

  • Connector A: 1 - DisplayPort (20 pin)

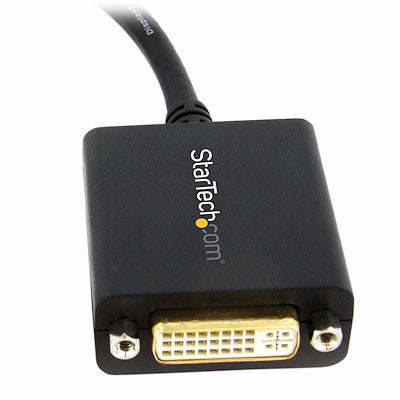

  • Connector B: 1 - DVI-I (29 pin)
  • Operating Temperature: 0°C to 45°C (32°F to 113°F)
  • Storage Temperature: -10°C to 80°C (14°F to 176°F)
  • Humidity: 10%–85% RH
  • Adapter Type: Passive
  • AV Input: DisplayPort 1.2
  • AV Output: DVI-I (Digital Only) – Single-Link
  • Audio Support: No
  • 1 - DisplayPort to DVI Converter

Datasheet

Overview

The DP2DVI2 DisplayPort® to DVI Video Adapter Converter lets you connect a DVI monitor to DisplayPort-enabled desktop or laptop computers. Supporting display resolutions of up to 1920x1200 allowing you to take full advantage of single link DVI capability. DP2DVI2 is a passive adapter that requires a DP++ port (DisplayPort++), meaning that DVI and HDMI signals can also be passed through the port.

Technical Features
  • DisplayPort to DVI Adapter: DisplayPort 1.2 HBR2 to DVI-D (digital only) single-link adapter connects DVI display/projector; Supports 1920x1200 / 1080p 60Hz; HDCP 1.4; 6" (15cm) attached cable; DisplayPort Certified
  • Compatibility: Passive video converter supports DP++ sources including workstations, desktops (AMD/Nvidia), laptops, small form factor computers, and docking stations
  • Primary or Secondary Display Support: Connect a DVI monitor or projector or add a second display; Tested with DVI cables up to 25ft; EDID & DDC pass-through ensure compatibility
  • Secure Connection: Latching DisplayPort connector ensures solid host connection; Supports DVI screw-locking cables to prevent accidental disconnection; Compact design
  • Ease of Use: No software or drivers required; Works with any OS; DisplayPort male to DVI female adapter; DVI-I connector with digital-only (DVI-D) signal
