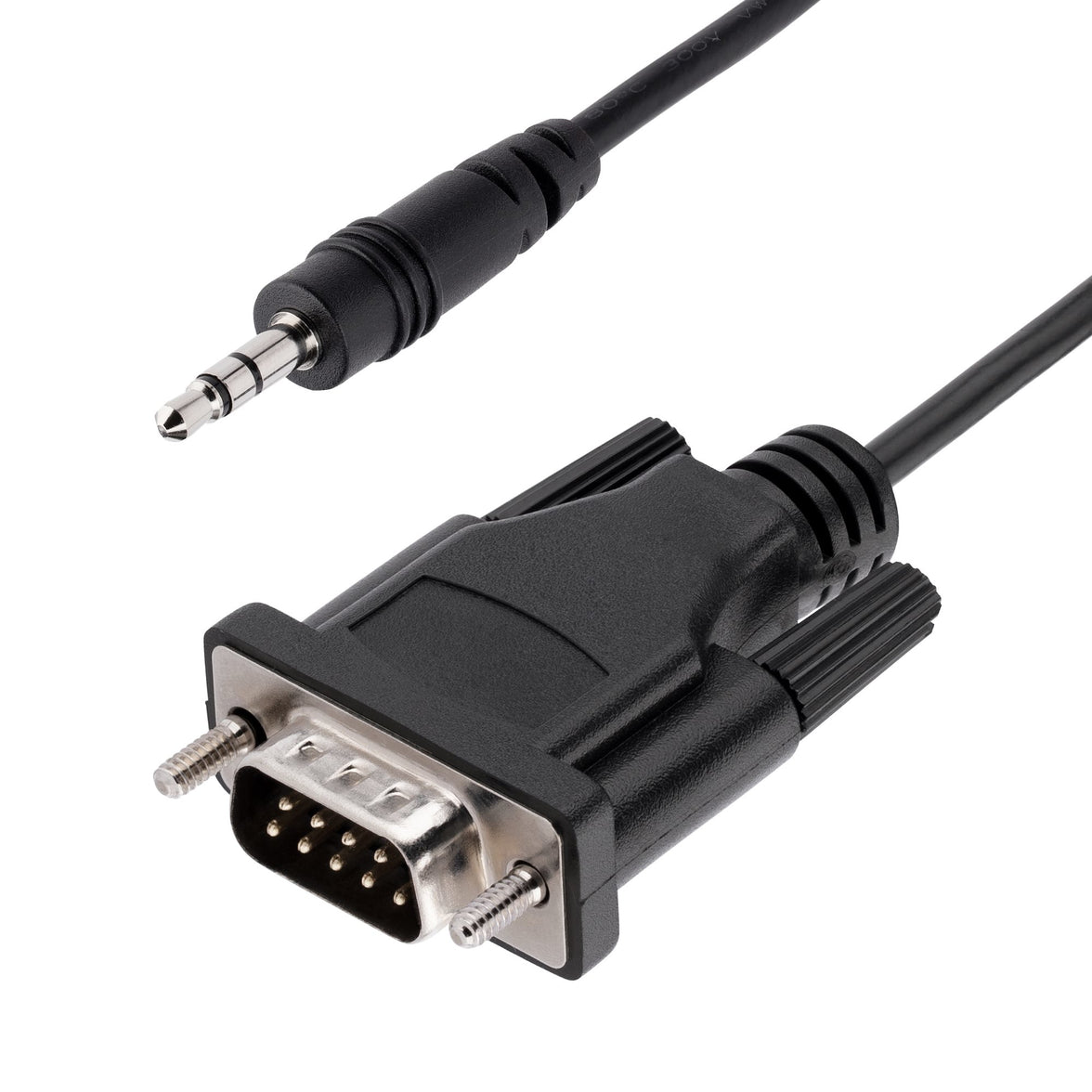

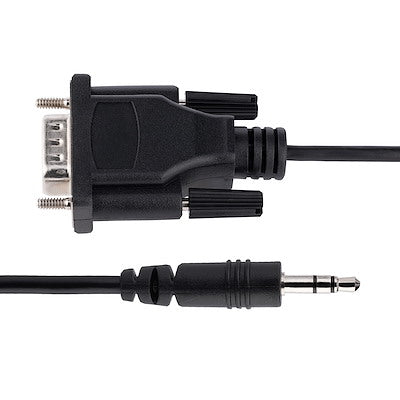

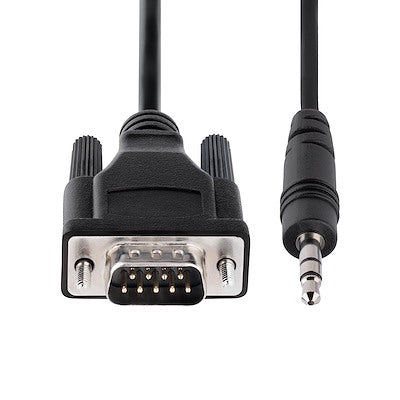

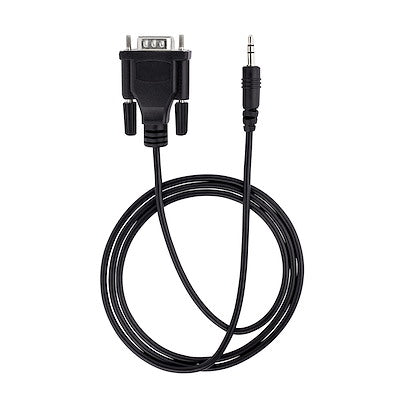

StarTech.com DB9 to 3.5mm Serial

Name: StarTech.com DB9 to 3.5mm Serial
Brand: StarTech
SKU: V298859
Price: 7.99 GBP
Availability: OutOfStock

£7.99 GBP

£7.99 GBP ~~Regular price:~~

(VAT Excl.)

Shipping calculated at checkout.

3.5mm audio jack
Metal shell connectors

Out of stock

EAN: 65030893565

SKU: V298859

Vendor: StarTech

Order within xx hours for delivery on

Product Specification

Length: 3.3ft (1m)
Cable type: DB9 Male to 3.5 mm Male Serial Cable
Color: Black
Wire gauge: 28 AWG
Outer diameter: 3.5mm
Jacket: PVC
Pin configuration: DB9 Pin 3 to 3.5mm Tip
Pin configuration: DB9 Pin 2 to 3.5mm Ring
Pin configuration: DB9 Pin 5 to 3.5mm Sleeve

Box Content

1 - DB9 to 3.5mm RS232 Serial Cable

Documents

Datasheet

Technical Features

DB9 to 3.5 mm serial cable: 3ft (1m) RS232 serial control cable enables configuration or calibration of 3.5mm RS-232 serial devices; for use with TVs, projectors, and digital signage displays requiring 3-conductor RS-232 control via 3.5mm audio jack
Quality construction: 28 AWG copper wires with Al-Mylar shielding and shielded metal shell connectors to prevent EMI interference; molded PVC connectors with strain reliefs and PVC jacket for durability
Compatibility: Works with USB-A and USB-C to DB9 serial adapters (1P3FP-USB-SERIAL / ICUSB232C); DB9 gender changer such as GC9SF may be required (not included)

StarTech.com DB9 to 3.5mm Serial

£7.99 GBP

£7.99 GBP ~~Regular price:~~

(VAT Excl.)

Overview

This serial cable features male DB-9 and 3.5mm connectors. It enables remote serial RS232 calibration of TVs, projectors, and digital signage devices that feature a 3.5mm audio jack. The aluminum-mylar cable shielding and metal shell connectors mitigate EMI. The molded PVC connectors with strain reliefs and PVC cable jacket prevent damage caused by strain and/or abrasion. Secure the DB-9 connector by tightening the integrated thumbscrews. These connector screw locks prevent accidental disconnection which could lead to data loss/corruption.
