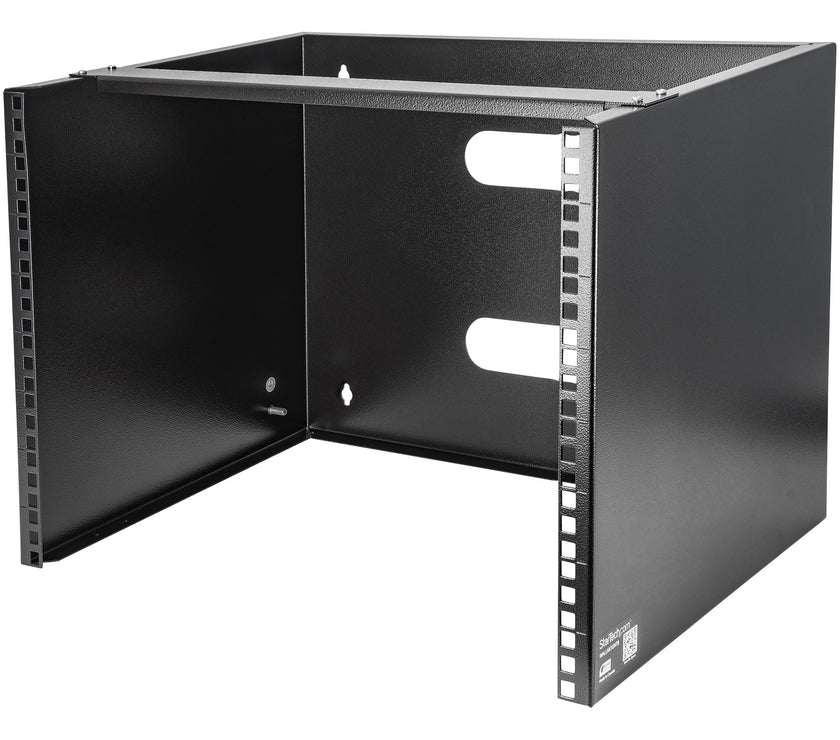

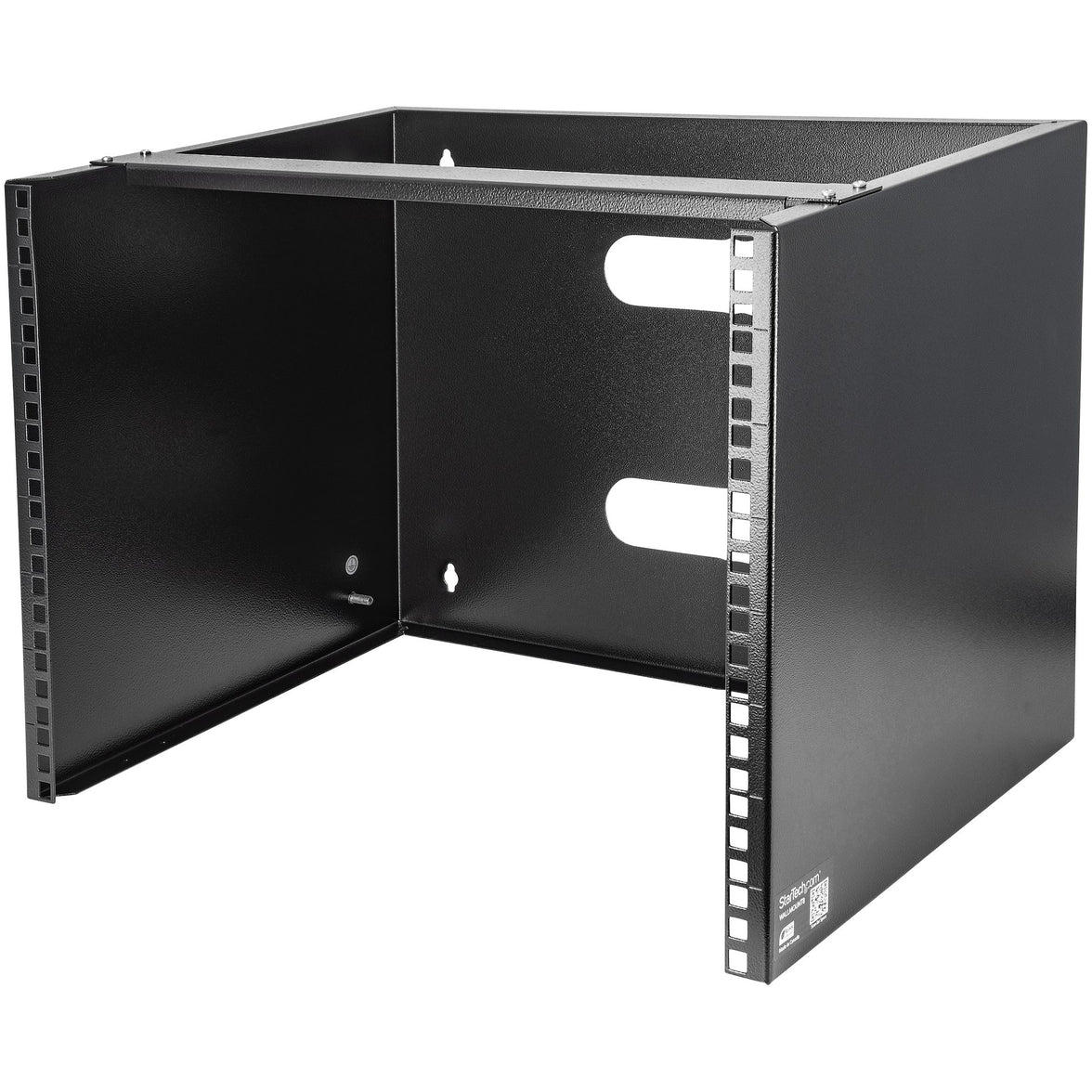

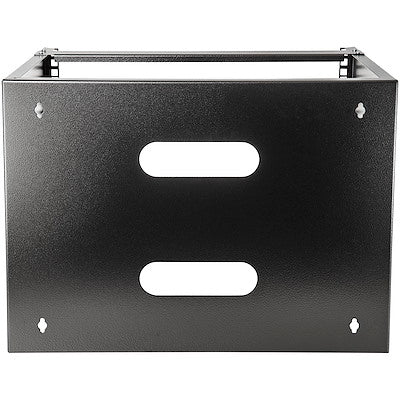

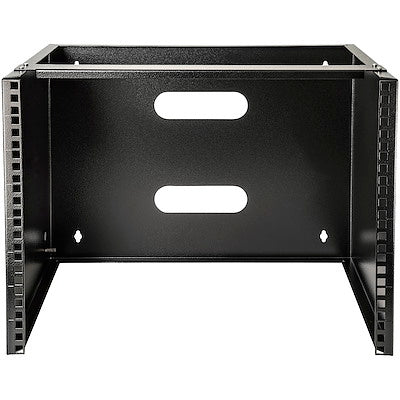

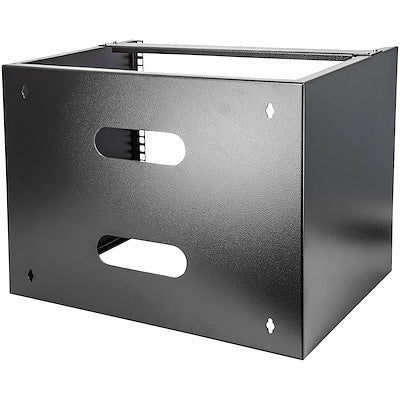

StarTech.com 8U Wall-Mount Rack

StarTech.com 8U Wall-Mount Rack

£117.34 GBP
Sale price: £117.34 GBP Regular price: £0.00 GBP
(VAT Incl.)
Shipping calculated at checkout.
  • Cold-Rolled Steel Construction
  • Easy to Install
Out of stock
EAN: 65030866750
SKU: V241367
Vendor: StarTech
Order within xx hours for delivery on
Quantity
  • Special Features: Ships fully assembled, wall-mountable
  • Mounting Hole Types: Square (for cage nut)
  • Industry Standards: EIA/ECA-310-E
  • Rack Type: 2-Post
  • U Height: 8U
  • Frame Type: Open Frame
  • Wall-Mountable: Yes
  • 1 - Wall-Mount Bracket
  • 24 - M5 Cage Nuts
  • 24 - M5 Screws with washers
  • 1 - M6 K-Nut
  • 6 - Wood Screws
  • 1 - User Manual

Datasheet

Overview

This wall-mount bracket provides 8U of space for mounting shallow rack-mount equipment that's 13.75 in. (34.93 cm) deep or less to the wall, such as patch panels or network switches. The 8U rack optimizes your working space by efficiently mounting your shallow equipment on your wall instead of taking up desk space or other usable surface areas. It's the perfect solution for your space-limited SoHo (small office, home office) environment or server room because it doesn't take up any floor space.

Technical Features
  • Rack Type: 8U Wall Mount Rack, 19-inch wide, low profile; maximum mounting depth 14 in (35 cm), supports networking equipment up to 12 in deep with 2 in for cable routing; maximum weight capacity 80 lbs (36 kg)
  • Construction: Cold-rolled steel for durability and sturdy mounting; includes wall mounting hardware; installs onto 16" studs with mounting holes
  • Installation: Ships fully assembled with M6 screws and M6 cage nuts for easy equipment installation
  • Cable Management: Rear cable routing access for efficient cable organization in network closets, server rooms, classrooms, or wiring closets
