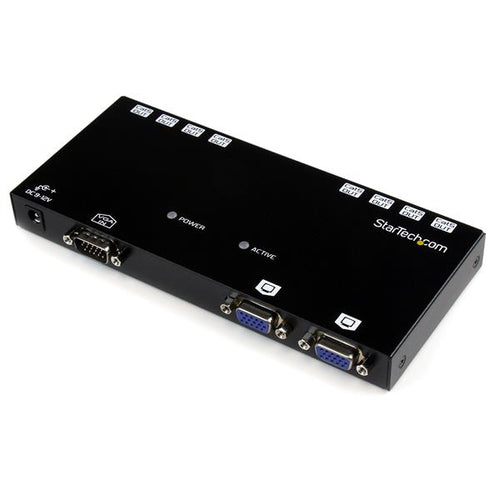

StarTech 8Port VGA Video Extender

StarTech 8Port VGA Video Extender

£231.36 GBP
Sale price: £231.36 GBP Regular price: £0.00 GBP
(VAT Incl.)
Shipping calculated at checkout.
  • Crystal clear picture quality
  • Pure hardware design
Out of stock
EAN: 65030830584
SKU: V240071
Vendor: StarTech
Order within xx hours for delivery on
Quantity

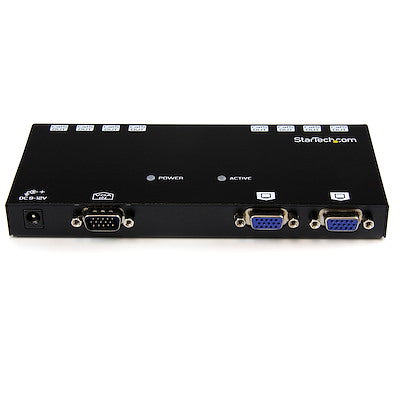

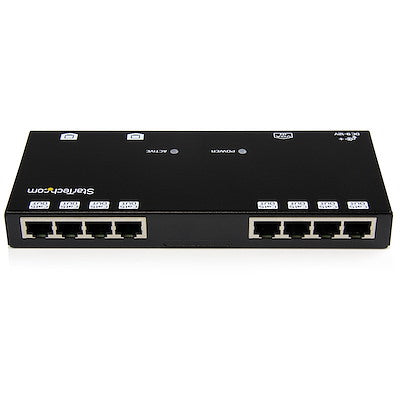

  • Local unit connectors: 8 - RJ-45, 2 - VGA (15 pin, High Density D-Sub), 1 - VGA (15 pin, High Density D-Sub)
  • Ports: 8
  • Cabling: Cat 5 UTP or better
  • Audio: No
  • Daisy-chain: Yes

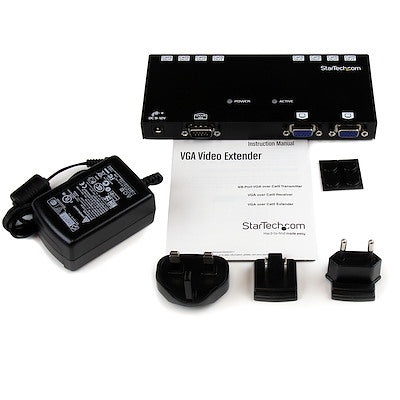

  • 1 - 8 Port VGA Transmitter
  • 1 - Power Adapter
  • 1 - Instruction Manual

Datasheet

Overview

The ST1218T 8 Port VGA Video Extender over Cat 5 is designed for use with our ST121 VGA over Cat 5 extension series, offering convenient VGA video distribution at distances of up to 492 feet (150 meters) using standard Cat 5 (or better) cabling. Comprised of the transmitter unit only, the ST1218T requires one Receiver Unit (ST121R) per display that you are connecting. For added versatility, the VGA over Cat 5 Repeater (ST121EXT) can be used to extend the distance between the transmitter and receiver by an additional 492-feet (150 meters), for a total distance of 984-feet (300 meters). Similarly, up to 3 repeater units can be used between transmitter and receiver, enabling you to connect monitors at each repeater, while still extending the total distance.

Technical Features
  • Base unit: Distributes 8 ports through Cat5 and two VGA ports for local displays
  • VGA extension: Extends VGA video up to 492 ft (150 m)
  • Cascading: Supports multiple transmitter units for extended reach
  • Video quality: Provides crystal clear picture quality
  • Design: Pure hardware, no software or drivers required
  • Compatibility: Works with ST121EXT repeater unit for further extension
