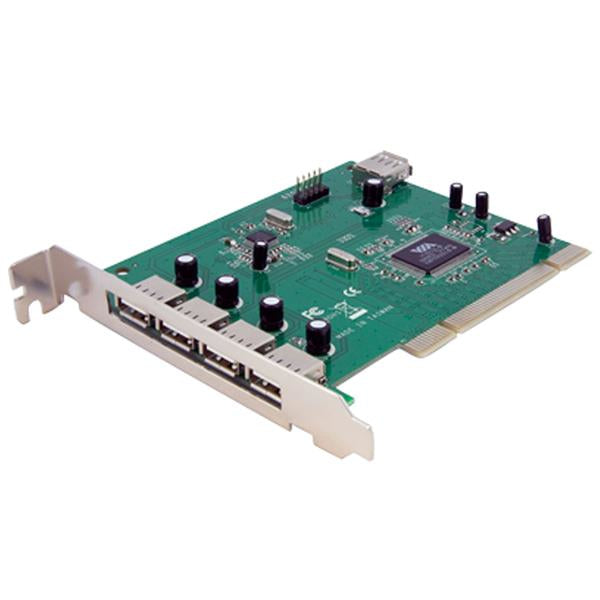

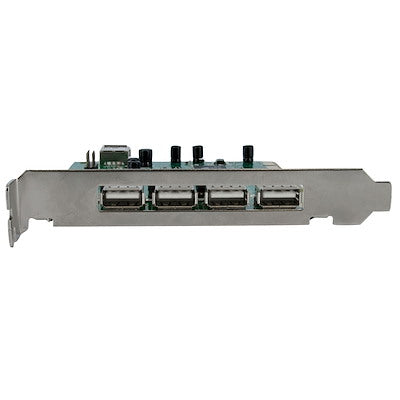

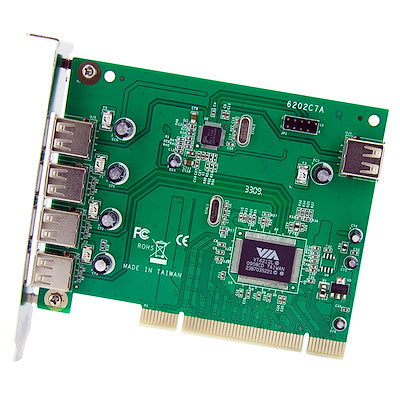

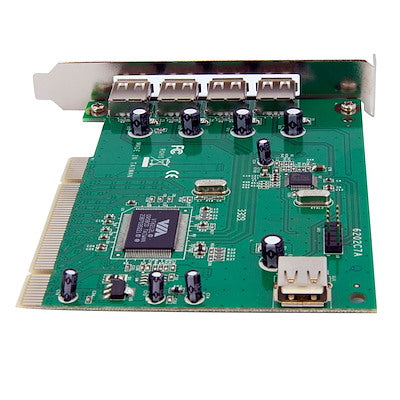

StarTech.com 7 Port PCI USB Adapter Card

Name: StarTech.com 7 Port PCI USB Adapter Card
Brand: StarTech
SKU: V209546
Price: 19.86 GBP
Availability: OutOfStock

£19.86 GBP

£19.86 GBP ~~Regular price: £0.00 GBP~~

(VAT Incl.)

Shipping calculated at checkout.

Plug-and-Play
Hot-Swap compatible

Out of stock

EAN: 65030836531

SKU: V209546

Vendor: StarTech

Order within xx hours for delivery on

Product Specification

Connector Type: 1 × PCI / PCI-X (Universal 3.3 & 5V, 32-bit)
Internal Ports: 1 × USB 2.0 Type-A (4 pin, 480Mbps), 1 × IDC (10 pin, Motherboard Header)
External Ports: 4 × USB 2.0 Type-A (4 pin, 480Mbps)
Total Ports: 7
Interface: USB 2.0
Bus Type: PCI / PCI-X (5 / 3.3V)
Card Type: Standard Profile

Box Content

1 - PCI USB 2.0 Card
1 - Driver CD
1 - Instruction Manual

Documents

Datasheet

Technical Features

USB Ports: 4 external USB 2.0 ports, 3 internal USB 2.0 headers
Speed: High-Speed USB 2.0, up to 480 Mbps
Compatibility: Backwards compatible with USB 1.1/1.0 devices
Power Output: Up to 500mA per port
Standards Compliance: USB EHCI 0.95, UHCI 1.1, PCI 2.2
Device Support: Up to 127 USB devices (with additional hubs)
Features: Plug-and-Play and Hot-Swap compatible

StarTech.com 7 Port PCI USB Adapter Card

£19.86 GBP

£19.86 GBP ~~Regular price: £0.00 GBP~~

(VAT Incl.)

Overview

This PCI USB card adds seven USB 2.0 ports (1 internal USB A Female, 2 internal USB motherboard header, and 4 external USB A Female) to your PCI-capable PC. The PCI USB 2.0 card is a versatile solution that lets you add USB 2.0 connections without having to upgrade the system motherboard. An all-in-one solution, the PCI USB card supports USB 2.0 device connections for full data transfer speeds of up to 480Mbps, and is backward compatible with USB 1.1 devices (max. transfer rate 12Mbps), allowing you to connect any USB device to the computer without having to worry about compatibility issues.
