StarTech 4-Port USB-C Card

StarTech 4-Port USB-C Card

£283.88 GBP
Sale price: £283.88 GBP Regular price: £0.00 GBP
(VAT Incl.)
Shipping calculated at checkout.
  • Dedicated USB Controllers
  • Transferring large files
Out of stock
EAN: 65030920292
SKU: V427647
Vendor: StarTech
Order within xx hours for delivery on
Quantity
  • External Ports: 4 × USB 3.2 Type-C (24 pin, Gen 2, 10Gbps, 15W Power)
  • Internal Ports: 1 × SATA Power (15 pin)
  • Host Connectors: 1 × PCI Express x4
  • Operating Temperature: 0°C to 85°C (32°F to 185°F)
  • Storage Temperature: -25°C to 85°C (14°F to 185°F)
  • Humidity: 20% ~ 80% RH (non-condensing)
  • Total Ports: 4
  • Interface: PCI Express

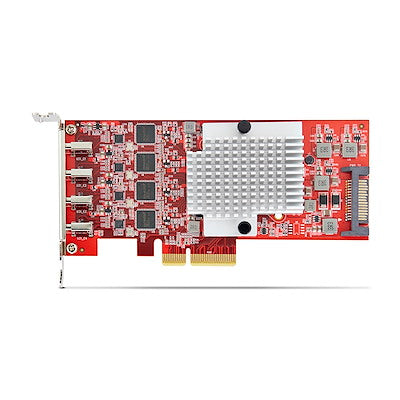

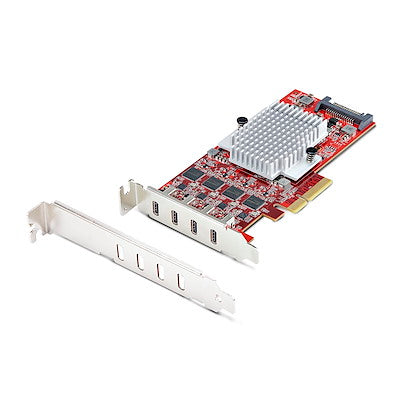

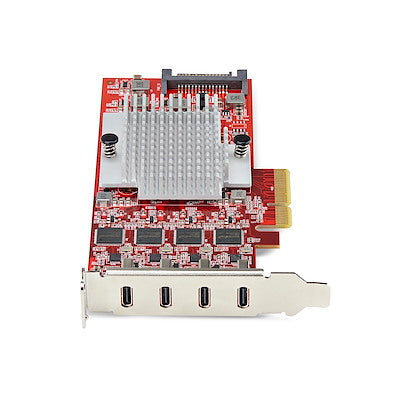

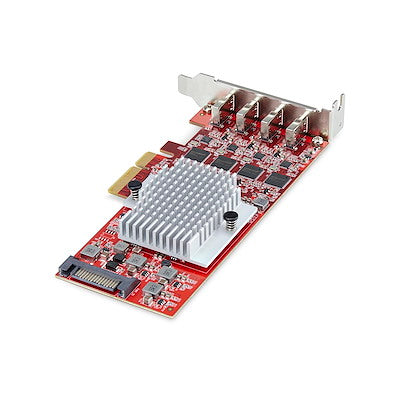

  • 1 - PCIe USB Card (Low-Profile Bracket Installed)
  • 1 - Standard-Profile Bracket
  • 1 - Quick-Start Guide

Datasheet

Overview

Expand the USB connectivity of a desktop computer or server by adding four external USB Type-C 10Gbps ports with this internal PCI Express 3.0 expansion card. Traditional single-controller USB cards share bandwidth across all ports. With its four independent USB controllers, this USB-C expansion card enables each port to achieve up to 10Gbps, reducing bottlenecks and increasing data throughput.

Technical Features
  • High-Performance USB Card: Four-port USB Type-C card with individual controllers for up to 10Gbps per port; PCIe 3.0; TAA-compliant

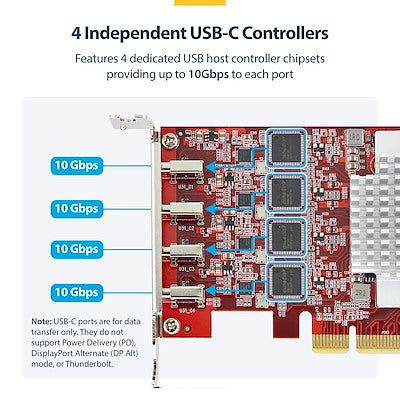

  • Dedicated 10Gbps Per Port: 4 USB controllers provide 10Gbps bandwidth each; ideal for large file transfers, multiple USB-C devices, or 10GbE USB adapters
  • Compatibility: Windows, Linux, macOS; low-profile bracket included (standard profile also); PCIe 3.0 x4 or larger; plug-and-play drivers; supported speeds 10Gbps, 5Gbps, 480Mbps, 12Mbps, 1.1Mbps
  • Auxiliary SATA Power: Built-in SATA connection supplies additional power if needed; up to 5V 3A (15W) per port
