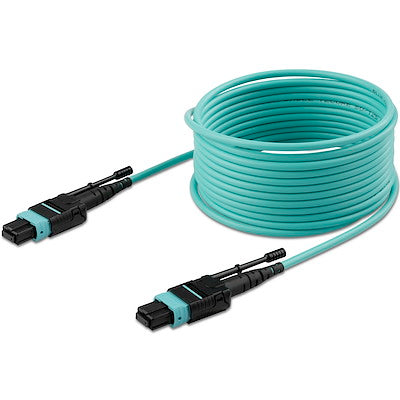

StarTech.com 3m MPO/MTP Fiber Cbl

This MPO/MTP fiber optic cable houses 12 fibers and lets you interface between different networking devices of varying speeds. For example, you can set up a one-to-one connection between two 40Gbps switches or servers. Alternatively, you can connect a 40Gbps switch and break out the 40Gbps into six duplex 10Gbps LC connections on a patch panel or network cassette, which then fans out to individual 10Gbps devices. The MTP connector provides twelve times the density of an SC connector and saves circuit card and rack space. Plus, the push-and-pull tabs optimize accessibility by letting you install or remove the connectors with one hand without needing additional tools.

• Cable Type: OM3 plenum-rated multimode fiber cable (MTP/MPO) supporting up to 40 Gbps; 12-fiber configuration ideal for high-density connections to servers, switches, and SANs

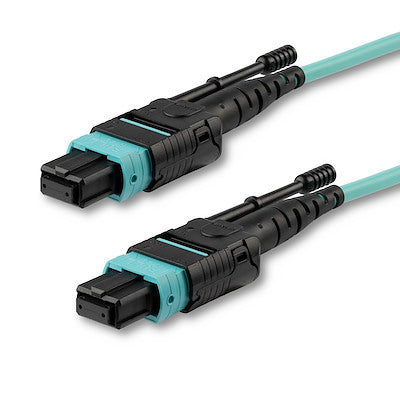

• Quality Construction: OFNP jacket emits low smoke and fumes if combusted; 50/125µm fiber core/cladding immune to EMI; MTP push-pull tabs with flexible extensions for easy installation/removal

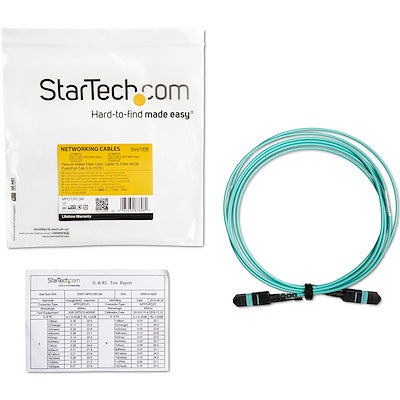

• Ratings & Reliability: Individually tested with included test report; rated for plenum and in-wall installations; 12-fiber MTP/MPO connectors with PC polished ends keep insertion loss below 0.5dB
• Compatibility: Supports 40 Gbps for high-density applications including SANs, data servers, and QSFP+ transceivers
