StarTech.com 3 Bay Backplane

StarTech.com 3 Bay Backplane

Regular price £78.16 GBP
Sale price: £78.16 GBP Regular price: £0.00 GBP
(VAT Incl.)
Shipping calculated at checkout.
  • Removable 3-drive backplane
  • Hot swap
Out of stock
EAN: 65030855297
SKU: V243797
Vendor: StarTech
Order within xx hours for delivery on
Quantity
  • Interface: SATA
  • Front door key lock: Yes
  • Number of drives: 3
  • Drive size: 3.5in
  • Compatible drive types: SAS & SATA
  • Drive installation: Removable
  • Number of internal 3.5 inch bays: 3
  • Fan(s): Yes
  • Fans: 1 x 70 mm
  • Fan bearing type: Sleeve Bearing
  • 1 - 3 SATA HDD Backplane
  • 2 - Bay Key
  • 3 - 18" SATA Cable
  • 1 - Installation screw kit
  • 1 - Instruction Manual

Overview

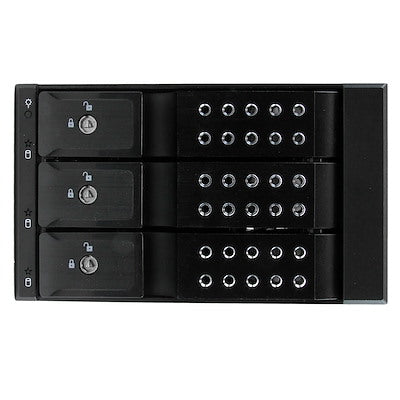

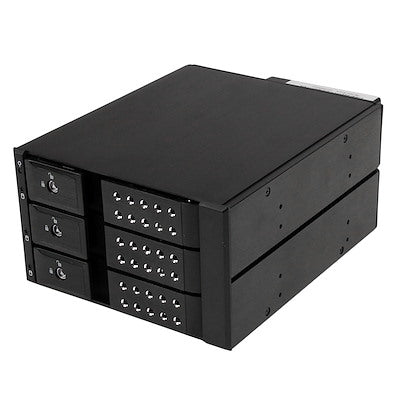

The HSB3SATSASBA Removable 3-drive backplane lets you quickly install and hot-swap 3.5" drives from the front of your computer, by turning two 5.25" bays into a hot-swappable interface for you to connect up to three 3.5” SATA or SAS hard drives (HDD). For added versatility, the hard drive bay can interface with SATA I/II/III and SAS I/II hard drives -- an ideal accommodation for enterprise system applications. For a quick and secure method of installing and removing drives, the backplane features ejection levers and a key-lock design. To help prevent drive failure, the bay provides excellent heat dissipation with a built-in fan, and a vented solid aluminum enclosure.

Technical Features

  • Increased productivity: 3-drive hot swap backplane converts two 5.25in bays into a hot-swappable interface for up to three 3.5in SATA or SAS hard drives (HDD)
  • Maximum compatibility: Interfaces with SATA I/II/III and SAS I/II hard drives; suitable for enterprise system applications; power and status LEDs for each bay

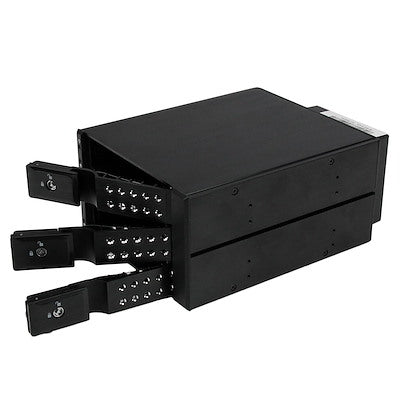

  • Quick setup: Trayless SATA hot swap backplane with individual ejection levers for each bay; key-lock design for optional added security (includes two keys)

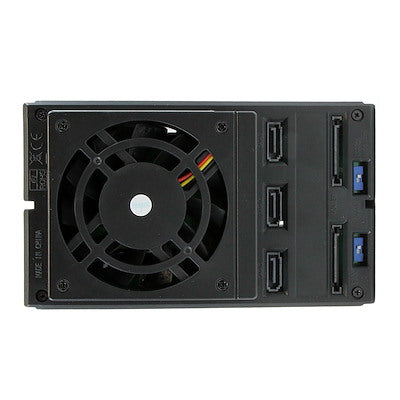

  • Maintain optimal temperature: Vented solid aluminum enclosure for heat dissipation; built-in fan with speed control; UL VO flammability rated
