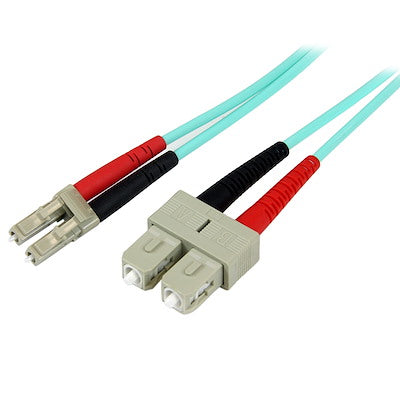

Startech.com 2m LC/SC Aqua Fiber

Startech.com 2m LC/SC Aqua Fiber

Regular price £12.88 GBP
Sale price: £12.88 GBP Regular price: £0.00 GBP
(VAT Incl.)
Shipping calculated at checkout.
  • Multimode Fiber Cable
  • LSZH cable jacket
Out of stock
EAN: 65030827195
SKU: V215660
Vendor: StarTech
Order within xx hours for delivery on
Quantity
  • Cable length: 2m (6.6ft)
  • Color: Aqua (OM3)

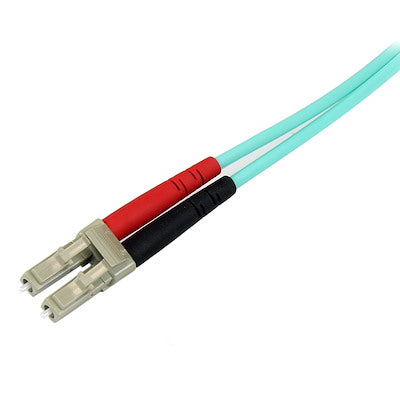

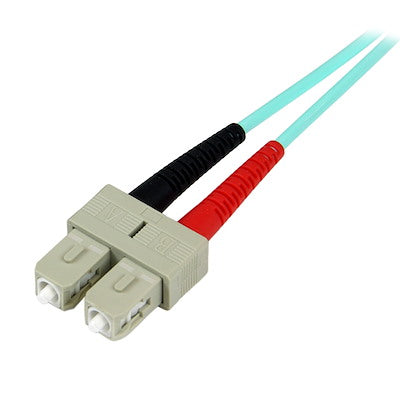

  • Connectors: LC/SC UPC
  • Wavelength: 850nm or 1300nm LED/VCSEL
  • Modal bandwidth: ≥2000 MHz·km at 850nm
  • Cable outer diameter: 2.9mm
  • Bend radius: Static 1.2in (3cm), Dynamic 2.4in (6cm)
  • 1 - 2m 10 Gb Aqua Multimode 50/125 Duplex LSZH Fiber Patch Cable LC - SC

Overview

The A50FBLCSC2 2-meter (6.6ft), 10 Gigabit, Aqua Multimode 50/125 Duplex LSZH Fiber Patch Cable is terminated with one LC (male) connector and one SC (male) connector and is composed of 50/125 micron OM3 aqua fiber to deliver reliable data transfers at blinding speeds making it perfect for fiber cable runs between multiple backbone switches, hubs and routers as well as higher end networking equipment. Suited for a broad range of environments, A50FBLCSC2 is housed in a flame retardant, LSZH (Low-Smoke, Zero-Halogen) cable jacket, taking safety to a new level by ensuring minimal smoke, toxicity and corrosion in the event of a fire – making it the best choice for a wide range of environments, including industrial settings, central offices and schools, as well as residential settings where building codes are a consideration.

Technical Features

  • OM3 fiber cable: OM3 Laser-Optimized Multimode Fiber Cable delivers up to 100 Gbps Ethernet; Full-duplex zip-cord with color-coded TX/RX connectors for servers and Storage Area Networks (SANs)
  • Quality construction: 50/125µm fiber core/cladding immune to EMI; Protective Aramid fiber sheath for tensile strength and crush resistance; LC/SC connectors with UPC polished ceramic ferrules, insertion loss <0.3dB
  • Ratings and reliability: Individually tested for signal integrity; LSZH jacket emits low smoke/fumes in case of fire; TIA/EIA compliant fiber core; Attenuation <2.3dB/km
  • Compatibility: Supports 1/10/40/100 Gbps for high-density networks like SANs, data servers, SFP+, QSFP+; Compatible with 1000BASE-SX, 10GBASE-SR, 40GBASE-SR4, 100GBASE-SR10; Backward compatible with OM2
