StarTech 25U 4 Post Rack

StarTech 25U 4 Post Rack

£265.73 GBP
Sale price: £265.73 GBP Regular price: £0.00 GBP
(VAT Incl.)
Shipping calculated at checkout.
  • Built-in Cable Management
  • Adjustable Mounting Rails
Out of stock
EAN: 65030858519
SKU: V211019
Vendor: StarTech
Order within xx hours for delivery on
Quantity
  • Mounting Rail Profile: L-Shape
  • Mounting Hole Types: Square (For Cage Nut)
  • Industry Standards: EIA/ECA-310-E
  • Rack Type: 4-Post
  • U Height: 25U
  • Frame Type: Open Frame
  • Package Height: 15.9 cm (6.3 in)
  • Package Length: 20.6 cm (8.1 in)
  • Shipping Weight: 31.8 kg (70.0 lb)
  • 2 - Left Vertical Rail
  • 2 - Right Vertical Rail
  • 2 - Base Bracket
  • 8 - Corner Section
  • 4 - Center Section
  • 2 - Top Bracket
  • 48 - M8 Bolt
  • 48 - M8 Washer
  • 1 - M8 (13mm) Wrench
  • 1 - M6 (10mm) Wrench
  • 1 - Phillips Screwdriver
  • 32 - M6 Cage Nut
  • 32 - PVC Cup Washer
  • 32 - M6 Phillips Head Screw
  • 12 - Cable Management Hook
  • 12 - Hook Mounting Screw
  • 4 - Casters
  • 4 - Leveling Feet
  • 16 - M6 Screw
  • 16 - M6 Flat Washer
  • 16 - M6 Flange Nut
  • 4 - Grounding Wires

Datasheet

Overview

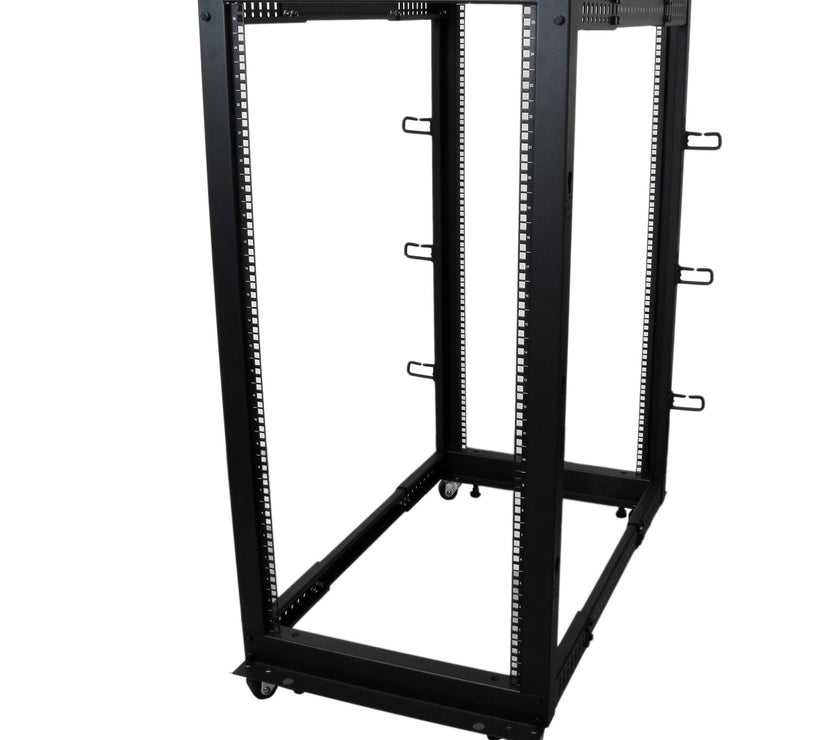

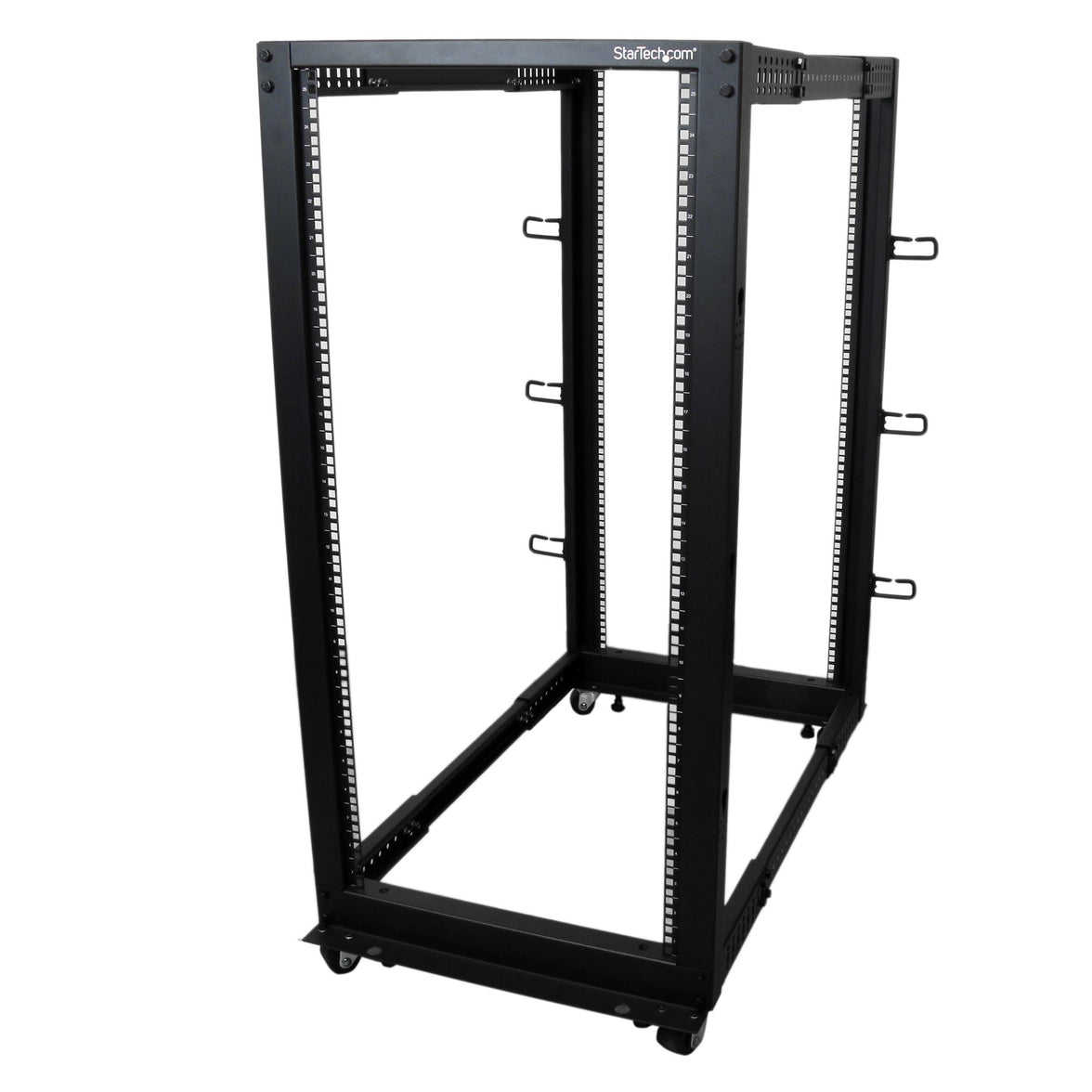

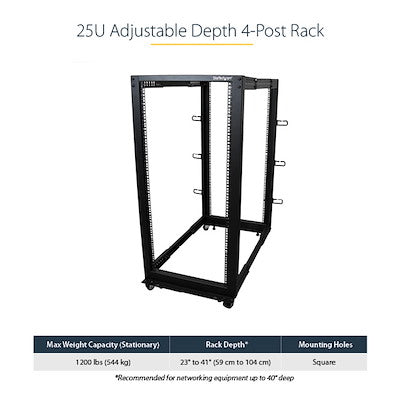

The 4POSTRACK25U 25U Server Rack lets you store your servers, network and telecommunications equipment in a sturdy, adjustable depth open-frame rack. Designed with ease of use in mind, this 25U rack offers easy-to-read markings for both rack units (U) and depth, with a wide range of mounting depth adjustments (22 - 40in) that make it easy to adapt the rack to fit your equipment. This durable 4-post rack supports a static loading capacity of up to 1200lbs (544kg), and offers compliance with several industry rack standards (EIA/ECA-310, IEC 60297, DIN 40494) for a universal design that's compatible with most rack equipment.

Technical Features

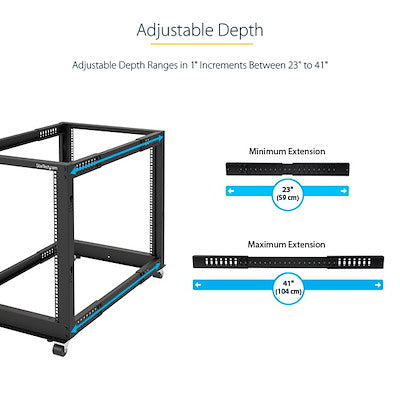

  • Adjustable Depth: 4-Post 25U open frame server rack; 4 vertical rails; Depth adjustable 22" to 40" (56.0cm to 101.7cm); EIA/ECA-310-E compliant; Supports servers, switches, AV, and other IT equipment
  • Easy Assembly: Comes with assembly instructions and online video; Flat-pack shipping; Total height 50.8in (129cm) with casters, 48in (122cm) without casters
  • Cold Rolled Steel: Durable 19in open frame rack; 25U mounting height; Supports 1200lb (544kg) stationary; Includes casters, leveling feet, or base-plate for floor mounting
  • Hardware Included: Cage nuts, screws, cable management hooks, Unit (U) markings, depth adjustment indicators, and assembly tools included
