StarTech.com 2-Port 2.5Gbps NBASE-T PCIe

StarTech.com 2-Port 2.5Gbps NBASE-T PCIe

£140.89 GBP
Sale price: £140.89 GBP Regular price: £0.00 GBP
(VAT Incl.)
Shipping calculated at checkout.
  • Increased network speed
  • Enhance existing hardware
Out of stock
EAN: 65030898140
SKU: V311761
Vendor: StarTech
Order within xx hours for delivery on
Quantity
  • Ports: 2x RJ45 Ports with independent controllers
  • Speed: 2.5/1Gbps and 100/10Mbps
  • Standard: IEEE 802.3bz (2.5GBASE-T)
  • Duplex Mode: Full Duplex
  • Auto MDIX: Supported
  • Interface: PCIe 2.0 x2
  • Chipset: Intel I225-V
  • Jumbo Frames: Up to 9K
  • VLAN Tagging: Supported
  • Wake on LAN (WoL): Supported
  • PXE Boot: Supported
  • 1 - 2-Port PCIe 2.5 Gbps Network Card
  • 1 - Low Profile Bracket
  • 1 - QuickStart Guide

Datasheet

Overview

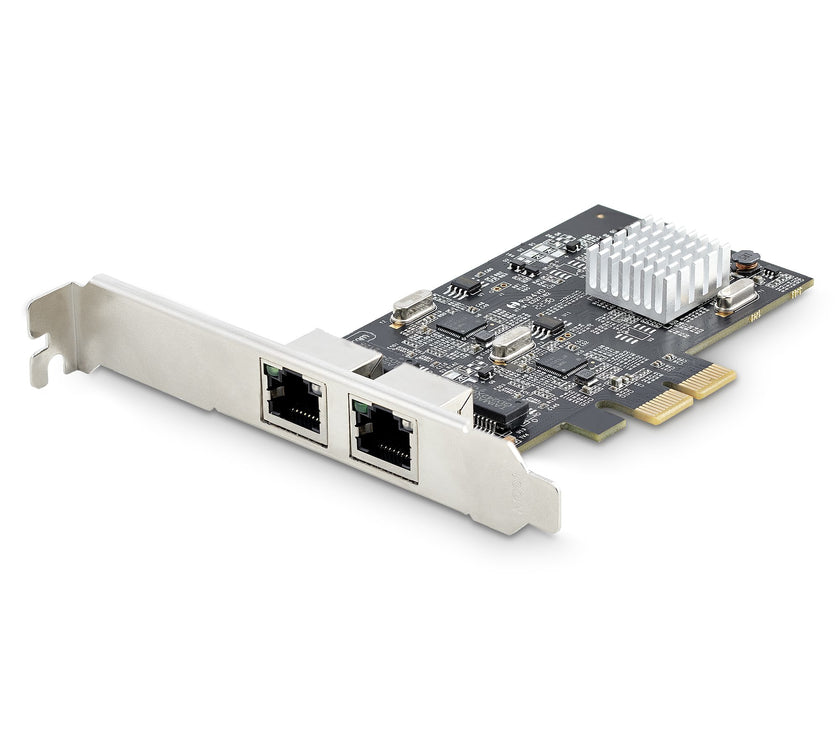

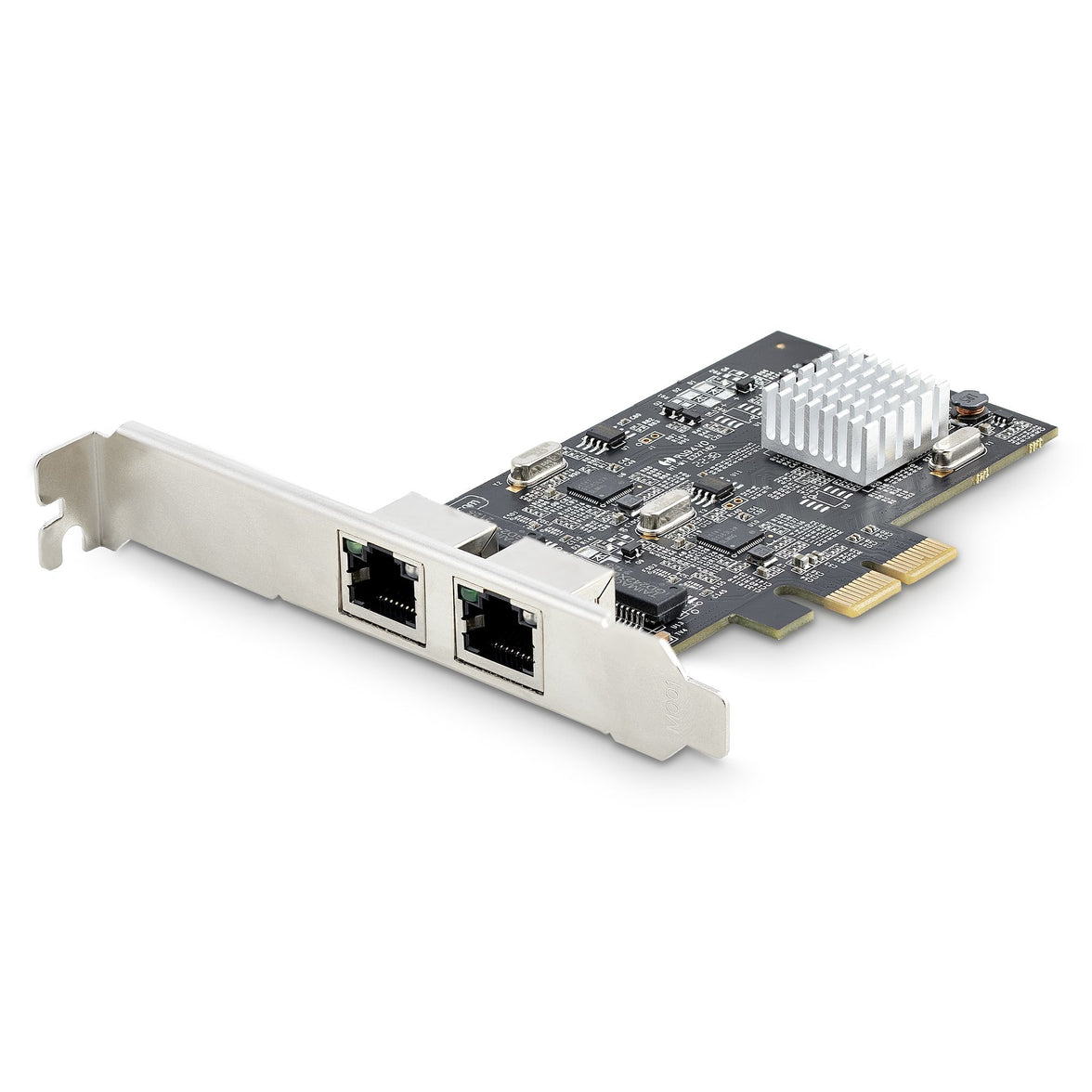

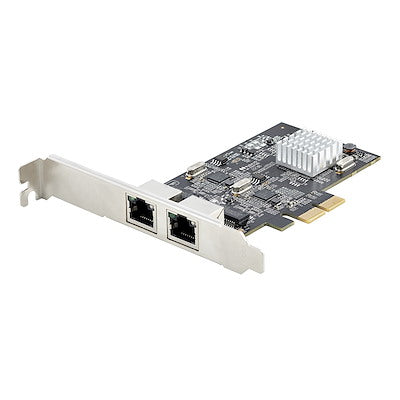

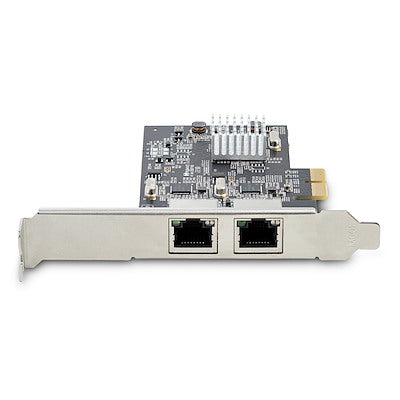

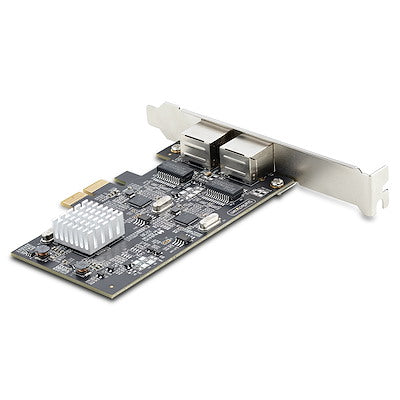

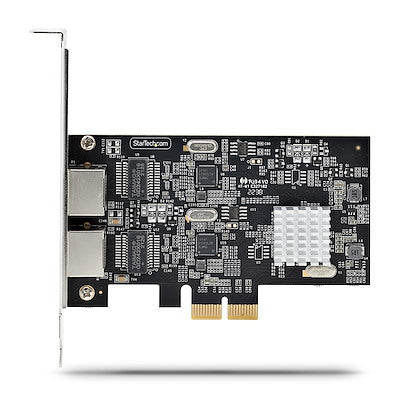

This dual-port 2.5GbE network interface card (NIC) features independent Intel I225-V chipsets for each port with Intel vPro technology, to enhance performance and data integrity across two 2.5G ethernet connections. The variable multispeed options (2.5/1Gbps and 100/10Mbps) enable support for both new and legacy network hardware. Utilize existing Cat5e or CAT6 cabling infrastructure while adding NBASE-T (802.3bz) compatibility for seamless integration. The PCIe network card leverages Intel vPro technology for remote management and troubleshooting capabilities. Improve bandwidth for data-intensive applications, network sharing, FTPs, online or local storage/backup, and the streaming of online content - while reducing network slowdowns. Access up to 2.5GBASE-T speeds using Cat5e (or better) cabling, to maximize existing networks and equipment. To ensure reliable performance, two Intel I225-V chipsets are used, providing independent Ethernet controllers to each port. The network interface card connects via an available x2 PCI Express 2.0 (or higher) expansion slot. The card ships in a standard-profile bracket and includes a low-profile bracket for installation into small form factor systems and servers. This ethernet NIC card is compatible with Windows and Linux.

Technical Features
  • 2.5G ETHERNET CARD: High-performance PCIe 2.5Gbps dual-port network card with Intel I225-V chip; Leverage existing Cat5e/Cat6 cabling (or better); NBASE-T compatible (802.3bz); PCI Express 2.0 x2; Independent Ethernet controllers for reliable performance
  • IT MANAGEABILITY: Intel vPro for remote management and troubleshooting; PXE boot enabled to deployment speeds/updates; 9K jumbo frame for reduced packet overhead; Remotely boot a system using WoL; VLAN support for efficient network management
  • BUILD QUALITY: Built-in heatsink to keep controller chips running cool for optimal performance, LED indicators for link status/speed, LAN transformers maintain signal quality and reduce EMI for reliable communication
  • COMPATIBILITY: 2.5GBASE-T variable speed options (2.5 G/1 G/100 M/10 M) with auto-negotiation; Compatible with Windows and Linux; Low-profile bracket included for hardware compatibility
