StarTech.com 1m MPO/MTP Fiber Cbl

Name: StarTech.com 1m MPO/MTP Fiber Cbl
Brand: StarTech
SKU: V243885
Price: 36.38 GBP
Availability: OutOfStock

£36.38 GBP

£36.38 GBP ~~Regular price:~~

(VAT Excl.)

Shipping calculated at checkout.

Plenum Rated
OFNP Fiber

Out of stock

EAN: 65030879026

SKU: V243885

Vendor: StarTech

Order within xx hours for delivery on

Product Specification

Length & Color: 1m (3.3ft); Aqua (OM3)
Bandwidth: 40 Gbps
Connectors: MTP(F)/PC to MTP(F)/PC
Fiber Type & Pinout: 12-Fiber Type-A Straight Pinout
Wavelength: 850nm or 1300nm VCSEL
Modal Bandwidth: 2000 MHz•km at 850nm
Cable Outer Diameter: 3.0mm
Performance: Insertion Loss below 0.5dB; Return Loss 20dB

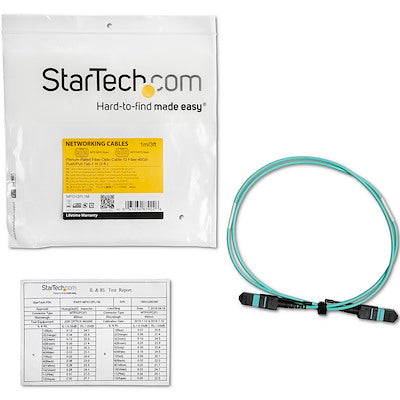

Box Content

1 - fiber optic cable

Documents

Datasheet

Technical Features

OM3 Fiber Cable: MTP/MPO Plenum-Rated OM3 Multimode Fiber; Supports up to 40 Gbps; 12-fiber cable ideal for servers, switches, and Storage Area Networks (SANs)
Quality Construction: OFNP jacket emits low smoke and fumes if burned; 50/125µm fiber core/cladding immune to EMI; MTP Push-Pull Tabs with flexible extensions for easy installation and removal
Ratings and Reliability: Individually tested for signal integrity; Test report included; Rated for plenum and in-wall installations; 12-fiber MTP/MPO connectors with PC polished ends keep insertion loss below 0.5dB
Compatibility: OM3 Multimode cable with MTP connectors; Supports 40 Gbps for high-density networks, SANs, data servers, and QSFP+ transceivers

StarTech.com 1m MPO/MTP Fiber Cbl

£36.38 GBP

£36.38 GBP ~~Regular price:~~

(VAT Excl.)

Overview

This MPO/MTP fiber optic cable houses 12 fibers and lets you interface between different networking devices of varying speeds. For example, you can set up a one-to-one connection between two 40Gbps switches or servers. Alternatively, you can connect a 40Gbps switch and break out the 40Gbps into six duplex 10Gbps LC connections on a patch panel or network cassette, which then fans out to individual 10Gbps devices. The MTP connector provides twelve times the density of an SC connector and saves circuit card and rack space. Plus, the push-and-pull tabs optimize accessibility, by letting you install or remove the connectors with one hand without using additional tools.
