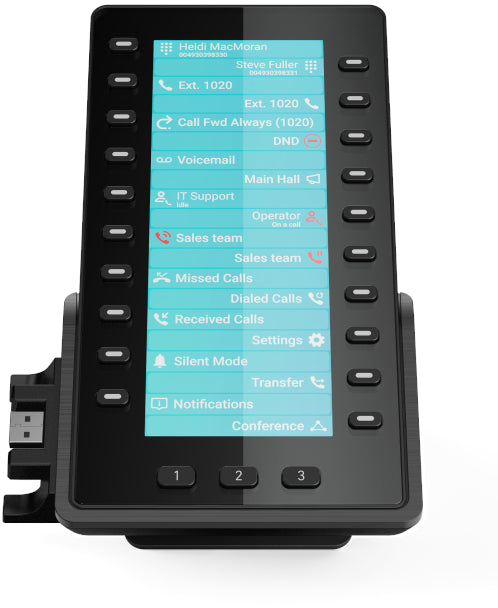

Snom D8C Expansion module for D8XX series

The Snom D8C is an expansion module for all devices in the D8xx series. The expansion module has a large, high-resolution colour display with a very clear user interface. Connected to the phone via USB via plug & play, the Snom D8C expands the phones in the D8xx series with another large screen and a wide range of application options.  The 20 physical (60 virtual) programmable LED Function Keys let you quickly identify the status of a colleague, forward calls, and more. Up to three of the Snom D8C Expansion Modules can be added to each Telephone for a more comprehensive overview. Configuration of the Snom D8C is straightforward and can be done either via the Telephone or via the Snom Web Interface.

• Display and Indicators
• Display - TFT Liquid Display (LCD), True Colour, Backlit
• Size - Diagonal - 172mm (6.86 Inches)
• Size (W x H) - 60mm x 16100
• Resolution - 1,280 x 480 Pixels
• 23 LED Indicators - Function Key Status Indication - 20 Multicolour LEDs, Page Key Indication - 3 Green LEDs
• 23 Hard Keys in Total - 20 SmartLabel Keys (With Multicolour LED), Key Mapping of up to 60 Functions (20 Keys) x 3 Pages, 3 Dedicated Function Keys - Page 1/2/3
• Power Options - USB Powered - 5V
• Power Adapter - When More than One D8C Module is used with One Phone, a Power Supply Unit Needs to be Connected to the Second Module (Power Supply Unit Not Included)
• Wired Interfaces - Daisy Chaining, USB Powering, USB 2.0 Type-A Port, USB 2.0 Type-A Plug
• Power Adapter - Coaxial Power Connector (Socket)
• Plug and Play
• Configurable via Host Phone
• Customisation - Theme and Icon Support, Custom Background Image Support
