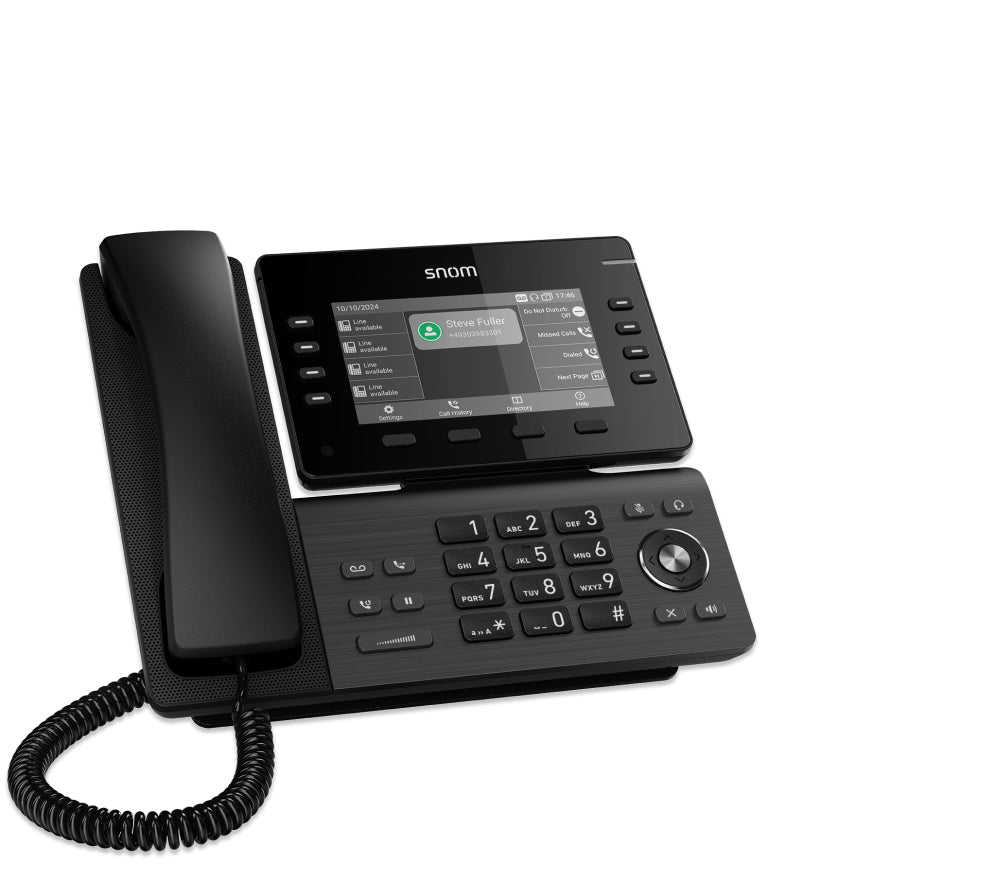

Snom D812 IP phone

The Snom D812 is a powerful yet affordable IP Phone designed for modern offices that are looking for a reliable communication device without having to break the budget. Its large, High Resolution Display provides a clear and intuitive user interface, whilst the 8 programmable SmartLabel Keys offer the flexibility to customise your workflow. Its flexibility and adaptability make it the perfect choice for smaller teams who need efficient communication to larger call centres where stable and reliable telephony are a must. The elegant design of the Snom D812 ensures it fits perfectly into any office, its a state of the art product that meets Snoms high standards that customers have become acustomed to.

• Display and Indicators
  • Display - TFT Liquid Crystal Display (LCD) - IPS Panel, True Colour Backlit, Size - (Diagonal) 127mm - 5 Inches, Size (W X H) - 110mm x 62mm, Resolution - 480 x 272 Pixels
  • 13 LED Indicators - Call Status Indication - 1 Red LED, Message Waiting Indication (MWI) - 1 Red LED, Function Key Status Indication - 8 Multicolour LEDs, Audio Key Status Information - 3 LEDs (1 Red / 2 Green)
• Keypad and Function Keys
  • 39 Hard Keys in Total - 12 Keys (Standard ITU Telephone Keypad), 5 Way Navigation Key, 4 Context Sensitive Function Keys
  • Programmable Function Keys - 8 SmartLabel Keys (with Multicolour LED), Key Mapping of up to 32 Functions (8 Keys x 4 Pages)
  • 5 Dedicated Audio Keys - Mute (with Red LED), Speakerphone (with Green LED), Headset (with Green LED), Volume +/- (Rocker)
  • 5 Dedicated Function Keys - Cancel, Message (with Red LED), Transfer, Hold, Redial, Keyboard Lock
  • Connect Up to 3 Snom D8C Expansion Modules via USB
• Audio Devices, Codecs and Features
  • Casing Microphone, Casing Speaker - Frequency Range - 100 Hz - 8.0 kHz, Speakerphone Mode - Full Duplex, HD Audio, Acoustic Echo Cancellation (AEC)
  • Corded Handset - Microphone, Handset Earpiece - Frequency Range - 150 Hz - 8.0 kHz, Noise Cancellation, HD Audio, Hearing Aid Compatible (HAC)
  • Audio Codecs - G.711 (A-law, μ-law), G.722, G.723.1, G.726, G.729AB, GSM6.10(FR), Opus
  • Dual Tone Multi-Frequency Signalling (DTMF / RFC2833), SIP Info - In Band, Out of Band
  • Related Features - Comfort Noise Generator (CNG), Voice Activity Detection (VAD), Audio Response Time, Adaptive Jitter Buffer, Packet Loss Concealment (PLC)
• Directory Support and Call Features
  • 12 SIP Identities / Accounts, Up to 12 Simultaneous Calls
  • Directory Support - LDAP (Server Based Directory), Local Directory with 2,000 Entries
  • Outgoing Call Features - Speed Dialling via Function Keys, URL Dialling, Local Dial Plan, Redial (via Dialled Calls List), Automatic Redial on Busy, Caller Identification (CLIP), Calling Line Identification Restriction (CLIR), Call Completion (Busy / Unreachable, Intercom, Multicast Paging)
  • Incoming Call Features - Call Waiting / Swapping, Auto Answer, Call Diversion, Call Barring / Blocking, Deny List, Anonymous Calls, Do Not Disturb (DND) Mode
  • Connected Call Features - Mute Microphone, Hold, Music on Hold (If Supported by PBX), Blind Call Transfer, Attended Call Transfer, 2+1 (4+1) Local Conferencing, Call Park / Unpark (If Supported by PBX), Client Matter Code (CMC) - (If Supported by PBX)
  • Related Features - Call History Lists of Missed, Received, Dialled, Rejected and Deflected Calls, Extension Monitoring (Busy Lampfield, Call Pickup - (If Supported by PBX))
• Interfaces and Connections
  • Power Options - Power over Ethernet (PoE), IEEE 802.3af, Class 3, IEEE 802.3az (Optional via Software), Power Adapter - 100 - 240 V AC, 50 - 60 Hz, 5 V DC (SELV), 2 A, 10 W - (Power Adapter Not Included)
  • Wired Interfaces - Power Adapter - Coaxial Power Connector (Socket), Network Connectivity - 2 × RJ45-8P8C Sockets (NET, PC) → Gigabit Ethernet (GbE), USB Connectivity - USB 2.0 Type-A Port, Corded Handset - RJ9-4P4C Socket, Headset - RJ9-4P4C Socket, Snom EHS - Electronic Hook Switch - (Electronic Hook Switch Not Included)
  • Wireless Interfaces - Third Party Headset Support - DECT via Optional Snom A230 DECT USB Dongle - (A230 Dongle Not Included)
  • Network Connectivity - Optional via Snom A210 - WLAN USB Dongle - (A210 Dongle Not Included)
  • Sensors - Hook Switch Sensor
