Snom D7 Colour Expansion Module

Snom D7 Colour Expansion Module

£149.41 GBP
Sale price: £149.41 GBP Regular price: £0.00 GBP
(VAT Incl.)
Shipping calculated at checkout.
  • 16 freely programmable function keys
  • Revised user interface
  • Adjustable set-up angle: 46° and 28°
In stock, 7 units
EAN: 4260059583046
SKU: snomD7C
Vendor: Snom
Order within xx hours for delivery on
Quantity
  • Large high-resolution colour display (6.8")
  • Daisy chain up to 3 modules (requires additional power supplies)
  • Power supplied by the telephone via USB
  • 16 freely programmable function keys
  • 3 virtual pages for up to 48 keys per module
  • Plug and play
  • Revised user interface
  • Adjustable set-up angle: 46° and 28°
  • USB output for USB accessory usage
  • Multicolour LED function keys
  • Theme and icon support
  • Activity page for better overview

- Base unit
- Foot stand
- Connector clips
- Quick installation guide

Datasheet

Overview

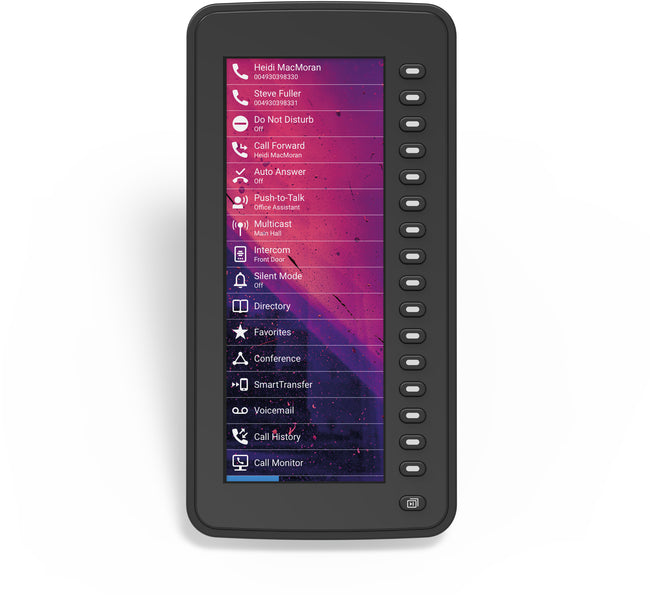

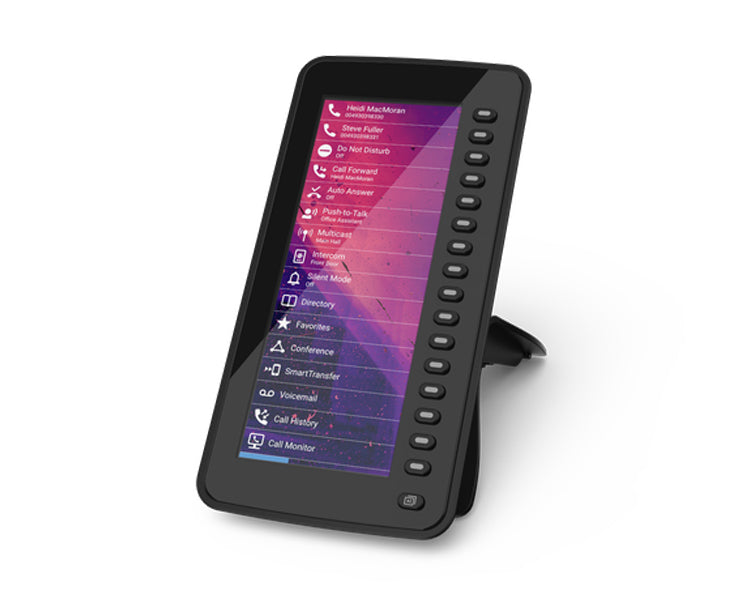

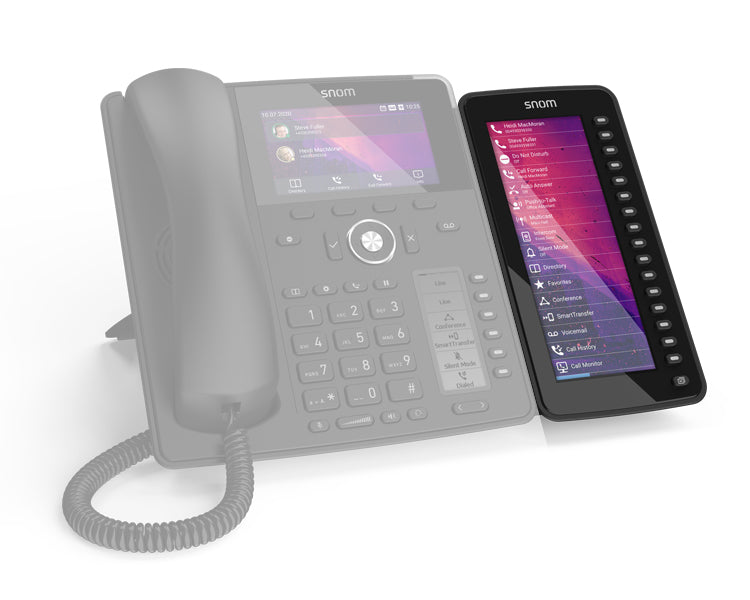

The Snom D7C is a Coulour Expansion Module for the D785, D765, D735 and D717 telephones. The D7C features a high-resolution colour display with a completely redesigned user interface. This module simply connects to the Snom phone via USB, the Snom D7C adds another large screen and many useful functions to many Snom phones. With the help of the 16 physical (48 virtual) freely programmable LED function keys, the status of colleagues can be quickly visualised and the corresponding number can be dialled or a call forwarded. If the corresponding line or the LED function line lights up green, the colleague is available and can take a call.

Technical Features
  • Dimensions approx.:
    • 160 x 105 x 220mm (HxWxL) at high angle
    • 120 x 105 x 220mm (HxWxL) at low angle
  • Input voltage: 5Vdc (SELV)
  • Power supply: USB or 5Vdc power adapter (3), 10 Watts
  • USB: USB 2.0 cable with angled type A plug
  • USB port: USB 2.0 port, type A
  • Environmental conditions:
    • Ambient temperature: 0°C to 35°C (32°F to 95°F)
    • Non-operation: -10°C to 45°C (14°F to 113°F)
    • Humidity: 5% to 95% (non-condensing)
  • Colour: Black
