4 PORT USB CAT5 EXTENDER

4 PORT USB CAT5 EXTENDER

£920.63 GBP
Sale price: £920.63 GBP Regular price: £0.00 GBP
(VAT Incl.)
Shipping calculated at checkout.
  • Multi-View Sharing
  • Easy Meeting Control
  • Team Collaboration
  • Remote Engagement
Out of stock
EAN: 4710469346989
SKU: UCE33100
Vendor: ATEN
Order within xx hours for delivery on
Quantity
  • Video Input:

    Interfaces: 1 x HDMI Type A Female (Black)

  • Video Output:

    Interfaces: 2 x HDMI Type A Female (Black)
    Max. Distance: HDMI up to 15m

  • Video:

    Max. Resolution: HDMI up to 1080p @60Hz
    Compliance: HDCP 1.4, CEC

  • Audio:

    Input: Microphone – 1 x Mini Stereo Jack Female (Pink)
    Output: Stereo Audio – 1 x Mini Stereo Jack Female (Green)

  • Connectors:

    Console Ports: USB 3.0 – 1 x USB Type A Female (Blue)
    Power: 1 x DC Jack (Black)

  • Control:

    IR: 1 x Mini Stereo Jack Female (Black)
    Ethernet: 1 x RJ-45 Female (Silver)

  • Switches:

    Power: 1 x Pushbutton (LED: Green)
    Selection:

    Room Info: 1 x Pushbutton
    Menu: 1 x Pushbutton
    Left / Right / Down / Up (Unlock): Pushbuttons
    Volume: 1 x Knob
    Enter: 1 x Pushbutton
    ESC: 1 x Pushbutton


    EDID Settings: ATEN Default / Display A

  • Power Consumption: DC12V: 14.46W / 87 BTU/h
  • Note:

    Watts indicate typical power consumption without external load
    BTU/h indicates consumption when fully loaded

  • Environmental:

    Operating Temperature: 0–40°C
    Storage Temperature: -20–60°C
    Humidity: 0–80% RH, Non-Condensing

  • Physical Properties:

    Housing: Metal
    Weight: 1.14 kg (2.51 lb)
    Dimensions: 20.00 x 16.92 x 4.40 cm (7.87 x 6.66 x 1.73 in.)
    Carton Lot: 3 pcs

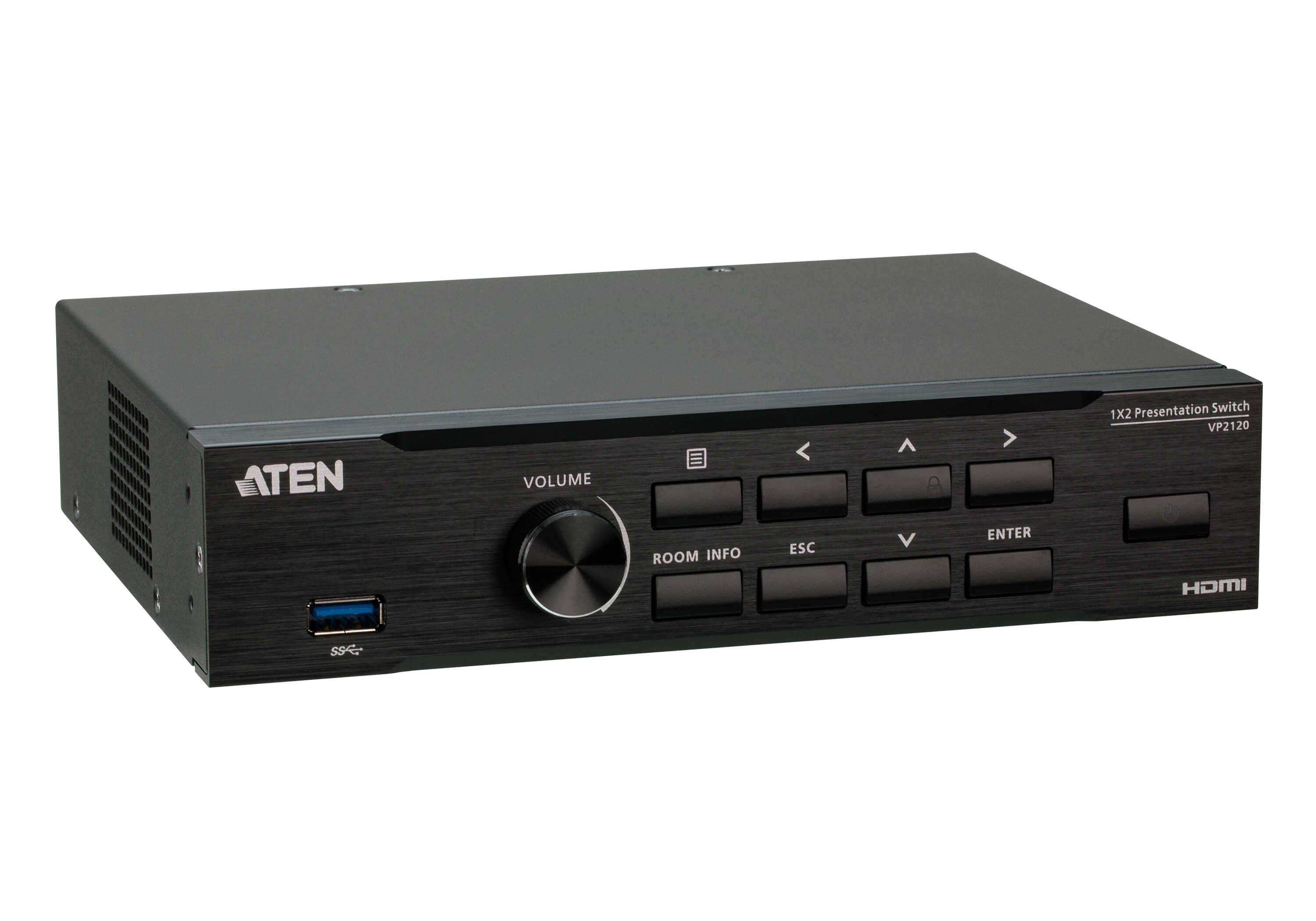

  • 1x VP2120 Seamless Presentation Switch
  • 1x 2XRT-0003G IR Receiver
  • 1x 2XRT-0112G IR Remote Control
  • 1x 0AD8-8012-33MG Power Adapter
  • 1x User Instructions

Datasheet

Overview

The UCE32100 is a 4-port USB 2.0 CAT 5 Extender is a two-unit device that serves as a Local Unit (Tx) and Remote Unit (Rx). It provides a durable, high quality connection that harnesses the full capability of the USB 2.0 standard, to ensure reliable data communication.

Technical Features
  • Brilliant AV Routing:
    • 1 x HDMI input and dual HDMI outputs with 4 bi-directional streaming and matrix display support
    • Seamless switching between streamed sources for fast idea exchange
    • Built-in scaler optimizes input resolutions for best display output
    • Audio DSP mixes microphone and HDMI audio for flexible output
    • Supports HDMI audio de-embedding
  • Launch a Quick Meeting Anytime:
    • Wireless BYOD collaboration via Web GUI and mobile app
    • Multiple quick login options:
      • Auto scan and select room number
      • Scan QR code on VP2120 OSD
      • Use pre-saved QR code
      • Enter IP address and room code
  • Seamless BYOD Collaboration:
    • Multiple control methods: pushbuttons, Web GUI, OSD, IR remote, mobile app
    • Streaming in: view up to 4 sources simultaneously
    • Streaming out: share live content to participants’ devices
    • Host can manage attendee audio/video permissions
    • Multi-view mode with flexible layout adjustment
    • Whiteboard for real-time annotation
    • Chat room for enhanced communication
    • Video capture for meeting recording
    • File sharing for collaboration and follow-up
    • Supports RTMP streaming (e.g., Facebook, YouTube)
  • High-definition Video with Optimum Output:
    • Up to 1920 x 1080 (single stream) and 854 x 480 (quad stream)
    • EDID Expert™ ensures optimal resolution and smooth display
    • Supports HDMI (1080p), CEC, and HDCP 1.4
