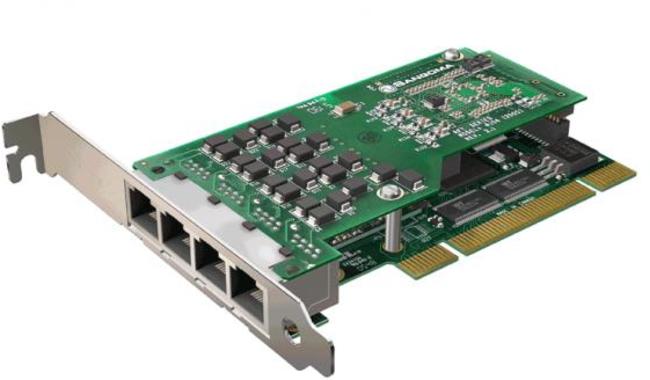

Sangoma A104 4 Port T1/E1/J1 PCI Card

Name: Sangoma A104 4 Port T1/E1/J1 PCI Card
Brand: Sangoma
SKU: A104
Price: 1.2 GBP
Availability: OutOfStock

£1,357.73 GBP

£1,357.73 GBP ~~Regular price: £0.00 GBP~~

(VAT Incl.)

Shipping calculated at checkout.

Port Count (4 Digital Spans)
Digital Standard (T1/E1/J1)
Voice Capacity (Up to 120 Voice Calls)

Out of stock

EAN: 680031526191

SKU: A104

Vendor: Sangoma

Order within xx hours for delivery on

Product Specification

SKU: 02-102032
Shop By Brand: Sangoma
UPC: 680031526184
Model: A104-EKIT
MPN: A104-EKIT
MSRP: $1,987.00
# of Digital Ports: 4
Digital Signaling Type: T1, E1, J1
# of FXS Ports: 0
# of FXO Ports: 4
Bus Type: PCI-Express
Echo Cancellation: No
Low Profile: No
Voice Signaling Methods: CAS, ISDN PRI, PRI, MFC/R2, ATM, PPP, SS7, BSC, HDLC

Box Content

A104 PCI Card
RJ45 Cable(s)
2U Mounting Clips
Installation Guide
Warranty Card

Documents

Datasheet

Technical Features

Model Options: Available as Single T1/E1 port (A101) or Dual T1/E1 port (A102) with daughterboard
Intelligent Hardware: Downloadable FPGA programming with multiple operating modes including T1/E1 and fractional T1/E1, single channel HDLC per line
Channelized Versions: Available as A101-C or A102-C supporting up to 64 DS0s for voice or HDLC data
Power Consumption: 520mA at 5V
Reliability: MTBF greater than 1 million hours (calculated)
Compatibility: PCI 32-bit 5V and 64-bit 3.3V compatible
Operating Temperature: 0°C to 45°C
Configuration: All setup and configuration via software or machine BIOS
DSU/CSU: Fully software-configurable with built-in test modes and remote monitoring
Line Decoding: Supports HDB3, AMI, B8ZS
Framing: CRC4, non-CRC4, ESF, D4 T1/E1
Clocking Modes: Normal and Master
Dimensions: 2U form factor (120mm x 55mm)

Sangoma A104 4 Port T1/E1/J1 PCI Card

£1,357.73 GBP

£1,357.73 GBP ~~Regular price: £0.00 GBP~~

(VAT Incl.)

Overview

Obtainable in both PCI (A104) and PCI Express (Sangoma A104E) form factors, The A104 provides up to 16.4Mbps of full duplex data throughput or 120 voice calls over four T1 and or E1 lines to support high performance PCI-based routing and telephony systems. Advanced clocking features allow E1 and T1 lines to be mixed with full synchronization. As part of Sangoma's AFT range of products, the A104 makes use of the same high performance PCI interface that has been deployed in large quantities all over the world.
