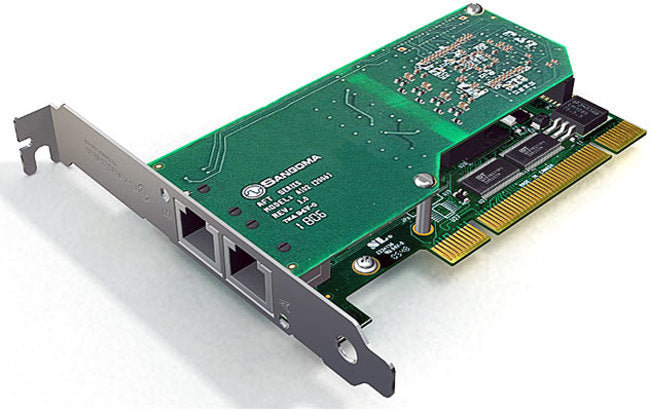

Sangoma A102D Dual Port T1/E1/J1 PCI Card w/EC HW
- Port Count (Dual Port / 2 Spans)
- Digital Standard (T1/E1/J1)
- Bus Type (PCI Express)
Product Specification
Box Content
Documents
Overview
The Sangoma A102-EKIT Telephony card uses the same high-performance PCI Express interface that provides superior performance in critical systems all over the world. The Sangoma A102-EKIT supports up to 60 voice calls or 4.096 Mbps of full-duplex data throughput over two T1, E1, or J1 lines. The Sangoma A102 is also used to lengthen the life of data WAN networks for more than one businesses. They are also compatible in most commercial-grade servers aiding to keep existing hardware routing equipment in-house. With advanced features and API, make customized routing devices to drop in place of existing obsolete setup. Take advantage of hardware and software improvements, as soon as they become available, as like all cards in Sangoma's AFT family, the Sangoma A102-EKIT is field upgradable with crash-proof firmware.
Technical Features
- Interface: 2 Port T1/E1/J1 PCI Express AFT card
- Compliance: Fully PCI 2.2 compliant and X1 PCI Express
- Voltage Compatibility: Autosense compatibility with 5V and 3.3V PCI busses
- Bus Type: Single synchronous PCI interface for all ports with 32-bit bus
- Form Factor: 2U compact design suitable for restricted chassis
- Dimensions: 120mm x 55mm
