Out of Stock

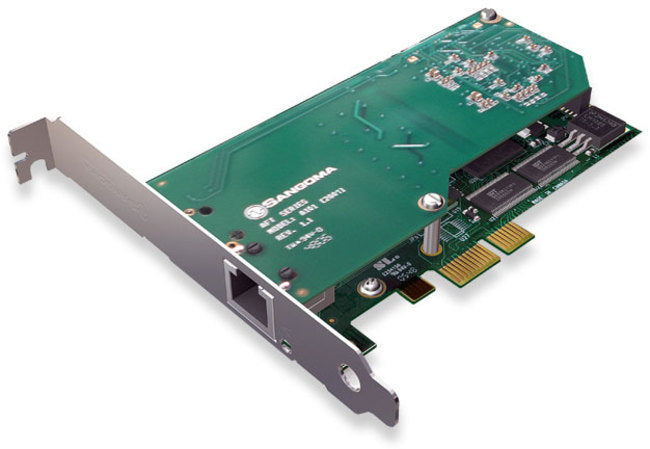

Sangoma A101E Single Port T1/E1/J1 PCIe Card

Name: Sangoma A101E Single Port T1/E1/J1 PCIe Card
Brand: Sangoma
SKU: A101E
Price: 503.29 GBP
Availability: OutOfStock

£503.29 GBP

£503.29 GBP ~~Regular price: £0.00 GBP~~

(VAT Incl.)

Shipping calculated at checkout.

Expansion Slot (PCI/PCI Express)
Hardware Feature (DSP Echo Cancellation)
Voice Capacity (Up to 30 Voice Calls)

Out of stock

EAN: 680031526108

SKU: A101E

Vendor: Sangoma

Order within xx hours for delivery on

Product Specification

SKU: 02-102021
Shop By Brand: Sangoma
UPC: 680031526115
Model: A101-KIT
MPN: A101-KIT
MSRP: $702.00
# of Digital Ports: 1
Digital Signaling Type: T1, E1, J1
Bus Type: PCI
Echo Cancellation: No
Voice Signaling Methods: CAS, ISDN PRI, PRI, MFC/R2, ATM, PPP, SS7, BSC, HDLC

Box Content

A101D PCI Card
RJ45 Cable(s)
2U Mounting Clips
Installation Guide
Warranty Card

Documents

Datasheet

Technical Features

Interface: One T1/E1 port with optimum PCI interface for high-performance voice and data applications
Compatibility: Supports Asterisk®, FreeSwitch™, Yate, and other open-source or proprietary PBX, Switch, IVR, and VoIP gateway applications
Hardware Platform: Uses Sangoma’s AFT base PCI card, fully compatible with all standard motherboards and PCI interrupt sharing
Form Factor: 2U design (120mm x 55mm) suitable for restricted chassis; includes RJ45 cables and 2U mounting clips for rack installations
FPGA Hardware: Intelligent, downloadable FPGA programming allows feature upgrades for voice/data functionalities
Voltage Compatibility: Autosense compatibility with 5V and 3.3V PCI busses
Line Decoding: Supports HDB3, AMI, and B8ZS
Framing: CRC-4, Non CRC4, ESF, SF, D4 — also compatible with Japan’s J1 standard
Power Consumption: PCI – 3W (0.6A @ 5V); PCI Express – 2.5W (0.76A @ 3.3V)
Operating Temperature: 0°C to 50°C

Sangoma A101E Single Port T1/E1/J1 PCIe Card

£503.29 GBP

£503.29 GBP ~~Regular price: £0.00 GBP~~

(VAT Incl.)

Overview

Choose the Sangoma A101D with Octasic's DSP hardware and certified algorithms to achieve carrier-grade echo cancellation and Voice Quality Enhancement functions on your open source or even proprietary telephone system. The Sangoma A101D is part of Sangoma's family of Advanced Flexible Telecommunications hardware product line - it uses the same high-performance PCI interface that is providing superior performance in critical systems all over the world.
