Out of Stock

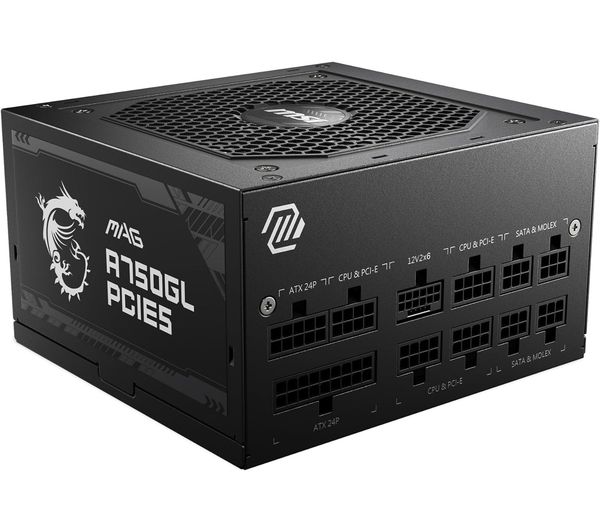

MSI 750W GOLD F/MODULAR MAG A750GL PCIE5

Name: MSI 750W GOLD F/MODULAR MAG A750GL PCIE5
Brand: MSI
SKU: MAG A750GL PCIE5
Price: 80.39 GBP
Availability: OutOfStock

£80.39 GBP

£80.39 GBP ~~Regular price:~~

(VAT Excl.)

Shipping calculated at checkout.

Short-circuit protection
Fully modular

Out of stock

EAN: 4711377087261

SKU: MAG A750GL PCIE5

Vendor: MSI

Order within xx hours for delivery on

Cooling

Fan diameter	12 cm
Number of fans	1 fan(s)
Cooling type	Active

Performance

On/off switch	Yes
Power supply unit (PSU) form factor	ATX
80 PLUS certification	80 PLUS Gold
Purpose	PC
ATX version	3.1
Harmonized System (HS) code	84733020

Design

Product colour	Black
Illumination	No

Power

Total power	750 W
Maximum input current (@220V)	4 A
AC input voltage	100 - 240 V
AC input frequency	47 - 63 Hz
Power Factor Correction (PFC) type	Active
Maximum input current (@110V)	8 A
Combined power (+3.3V)	110 W
Combined power (+12V)	744 W
Combined power (+5V)	110 W
Combined power (-12V)	3.6 W
Combined power (+5Vsb)	12.5 W
Max output current (+3.3V)	20 A
Max output current (+12V)	62 A
Max output current (+5V)	20 A
Max output current (-12V)	0.3 A
Max output current (+5Vsb)	2.5 A
Power protection features	Over current, Over power, Over voltage, Overheating, Short circuit
Efficiency	90%

Ports & interfaces

Motherboard power cable length	45 cm
Motherboard power connector	20+4 pin ATX
Number of SATA power connectors	8
Peripheral (Molex) power connectors (4-pin)	4
EPS power connector (8-pin)	No
PCI Express power connectors (6-pin)	0
PCI Express power connectors (6+2 pin)	3
PCI Express power connectors (8-pin)	0
CPU power connector (4+4 pin)	Yes
PCI Express connector	Yes
ATX Power connector (24-pin)	No
ATX power connector (20+4 pin)	No
Cabling type	Fully-Modular
EPS power connector (4+4 pin)	Yes
PCI Express power connectors (12+4 pin)	0
PCI Express power connectors (12-pin)	0

Weight & dimensions

Width	150 mm
Depth	140 mm
Height	86 mm

Packaging data

Package type	Box

MSI 750W GOLD F/MODULAR MAG A750GL PCIE5

£80.39 GBP

£80.39 GBP ~~Regular price:~~

(VAT Excl.)

In stock

Overview

The MAG series fights alongside gamers in pursuit of honour. With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability. It has an output port that is compliant with PCIe 5.0 and Intel PSDG (Power Supply Design Guide) ATX 3.0, also the MAG A750GL PCIE5 power supply can handle up to 2x total power excursion and 3x GPU power excursion.
