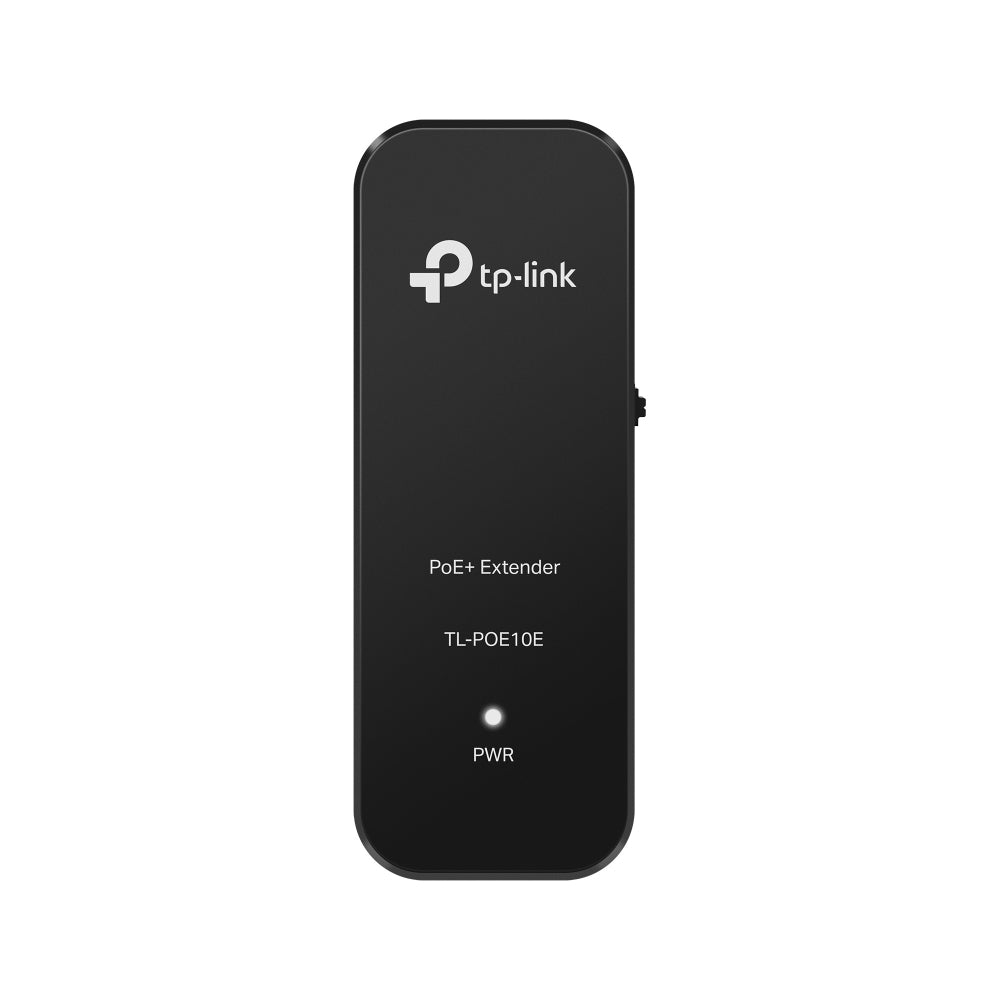

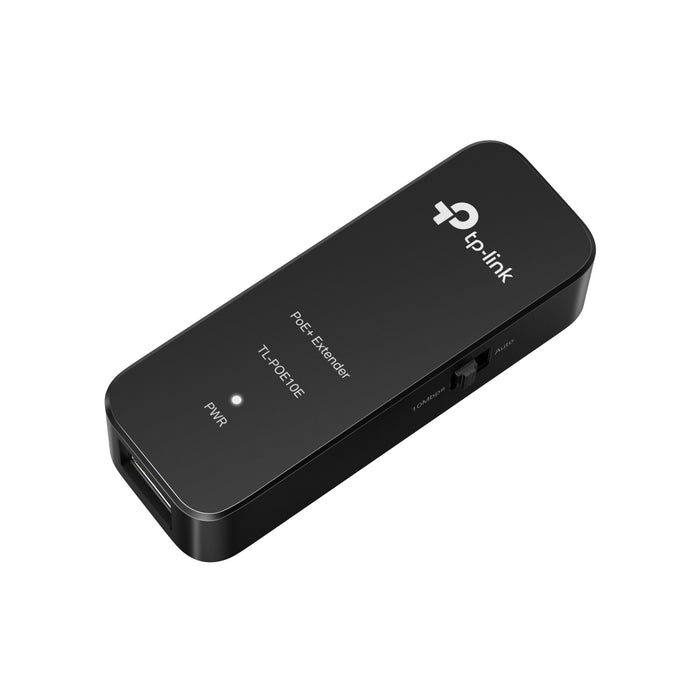

TP-LINK OMADA FST ETHERNET POE+EXTENDER

TP-LINK OMADA FST ETHERNET POE+EXTENDER

£14.09 GBP
Sale price: £14.09 GBP Regular price: £0.00 GBP
(VAT Incl.)
Shipping calculated at checkout.
  • Plug and Play
  • Supplies up to 20 W
In stock, 6 units
EAN: 4895252501902
SKU: 364630
Vendor: TP-LINK
Order within xx hours for delivery on
Quantity
  • Interface:
    1 × 10/100 Mbps RJ45 PoE IN Port
    1 × 10/100 Mbps RJ45 PoE OUT Port, up to 20 W
  • Network media: UTP/STP of Cat.5E or above (based on standards of connected devices)
  • Basic function:
    Compliance with 802.3af/at devices
    Up to 250 m data and power transmitting range under 10 Mbps mode
    Plug and Play
  • Dimensions (W x D x H): 2.33 × 0.85 × 0.52 in (71 × 26 × 16 mm)

• POE10E
• Installation Guide

Overview

The TP-Link POE10E Omada Fast Ethernet PoE+ Extender is a simple, unmanaged device designed to extend the reach of a Power over Ethernet (PoE) network connection beyond the standard 100-meter limit. It features two 10/100 Mbps RJ45 ports (one PoE In and one PoE Out) and is fully compliant with IEEE 802.3af/at standards. The extender draws power from the PoE source equipment, requiring no external power supply, and delivers up to 20 Watts of power to a connected powered device like an IP camera or access point. This plug-and-play solution can extend the connection an additional 100 meters at 100 Mbps, or up to 250 meters in 10 Mbps mode, making it ideal for long-distance surveillance applications.



Technical Features
  • Ports: 2 × 10/100 Mbps
  • Compliance: Works with 802.3af/at devices
  • Power supply: Provides up to 20 W, meeting the requirements of most IP cameras
  • PoE extension: Extends a PoE/PoE+ network connection an additional 100 m / 250 m (10 Mbps mode) from the PoE power sourcing equipment
  • Setup: Plug and Play, no configuration required
