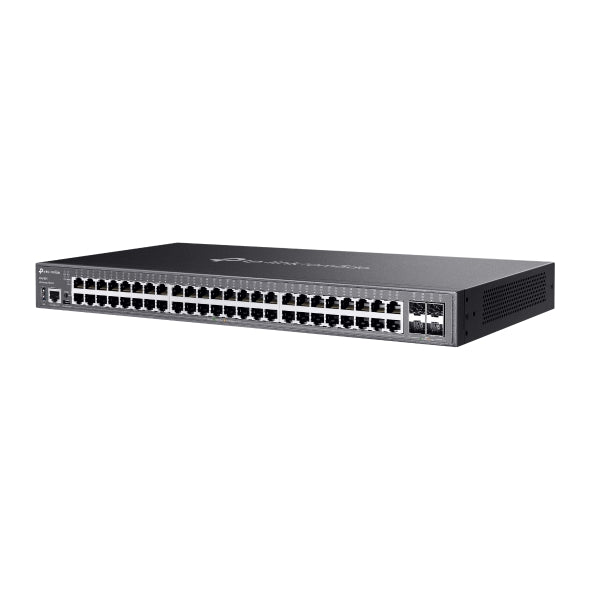

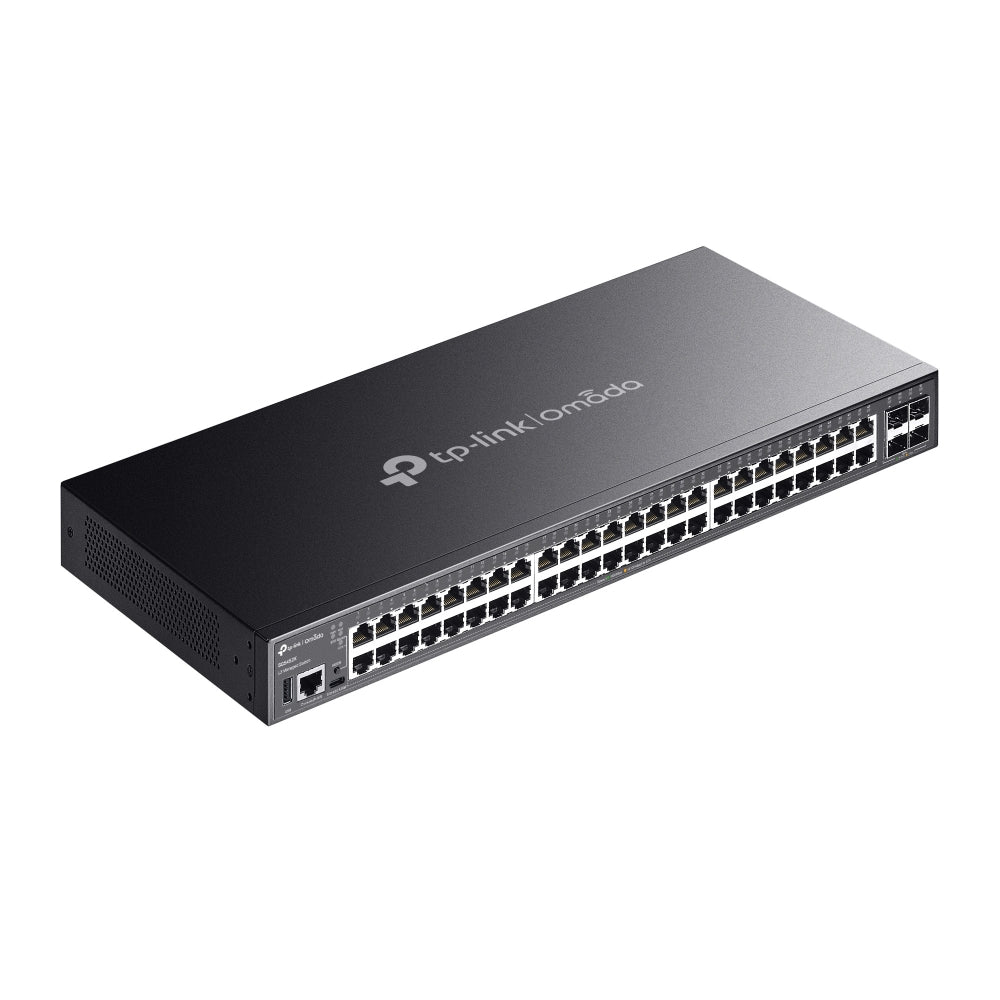

TP-Link Omada SG5452XMPP V1 - Switch - L3 Lite - Managed - 48 x 10 100 1000 4 x 10Gb Ethernet SFP - rack-mountable - PoE (770 W)

Name: TP-Link Omada SG5452XMPP V1 - Switch - L3 Lite - Managed - 48 x 10 100 1000 4 x 10Gb Ethernet SFP - rack-mountable - PoE (770 W)
Brand: TP-Link
SKU: SG5452XMPP
Price: 823.11 GBP
Availability: InStock

£823.11 GBP

£823.11 GBP ~~Regular price:~~

(VAT Excl.)

Shipping calculated at checkout.

Scalable Gigabit Networking

In stock, 1 unit

EAN: 8885020626490

SKU: SG5452XMPP

Vendor: TP-Link

Order within xx hours for delivery on

Management features

ARP inspection	Yes
Switch type	Managed
Web-based management	Yes
Quality of Service (QoS) support	Yes
Multicast support	Yes
Switch layer	L3
Cloud-managed	Yes

Ports & interfaces

SFP+ module slots quantity	4
Basic switching RJ-45 Ethernet ports quantity	48
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	48
Installed SFP+ modules quantity	0
Gigabit Ethernet (copper) ports quantity	48
USB 2.0 ports quantity	1
Console port	RJ-45
USB Type-C ports quantity	1

Network

Networking standards	IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x
VLAN support	Yes
Port mirroring	Yes
Number of VLANs	4000
Link aggregation	Yes
Broadcast storm control	Yes
10G support	Yes
Virtual LAN features	MAC address-based VLAN, Private VLAN, Protocol-based VLAN, Voice VLAN
IGMP snooping	Yes

Data transmission

Jumbo frames	9000
Packet buffer memory	12 MB
MAC address table	16000 entries
Switching capacity	176 Gbit/s
Store-and-forward	Yes
Jumbo frames support	Yes
Forwarding rate	130.94 Mpps

Security

IP-MAC-Port binding	Yes
Static port security	Yes
SSH/SSL support	Yes
Security algorithms	SNMP, SNMPv2, SNMPv3
MAC address filtering	Yes
Access Control List (ACL)	Yes
Password protection	Yes
DHCP features	DHCP relay, DHCP server

Design

Product colour	Black
Stackable	Yes
LED indicators	Yes
Rack mounting	Yes
Number of fans	3 fan(s)

Performance

Physical stacking (units)	4
Processor frequency	1200 MHz
Noise level	58.5 dB
Memory type	DRAM
Mean time between failures (MTBF)	275.277 h
Internal memory	2000 MB
Flash memory	512 MB
Firmware upgradeable	Yes
Processor manufacturer	ARM
Telnet	Yes
Built-in processor	Yes
Fanless	Yes

Power

Power consumption (max)	893.6 W
Power supply included	No
Surge protection voltage	6 kV
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Surge protection	Yes
Power source	AC

Power over Ethernet (PoE)

Power over Ethernet plus (PoE+) ports quantity	40
Total Power over Ethernet (PoE) budget	770 W
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) type supported	PoE+, PoE++ (4PPoE)
Power over Ethernet 4PPoE (PoE++) ports quantity	8

Other features

Management level	4
Bandwidth	88 Gbit/s

Operational conditions

Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 90%
Operating temperature (T-T)	-5 - 45 °C
Operating relative humidity (H-H)	10 - 90%
Heat dissipation	3047.18 BTU/h

Weight & dimensions

Width	440 mm
Depth	330 mm
Height	44 mm

Packaging content

Rack mount kit	Yes
Quick start guide	Yes
Cables included	AC

Technical details

Compliance certificates	CE, Federal Communications Commission (FCC), RoHS

TP-Link Omada SG5452XMPP V1 - Switch - L3 Lite - Managed - 48 x 10 100 1000 4 x 10Gb Ethernet SFP - rack-mountable - PoE (770 W)

£823.11 GBP

£823.11 GBP ~~Regular price:~~

(VAT Excl.)

In stock

Overview

The TP-Link Omada SG5452XMPP V1 is a versatile switch designed to meet the demanding needs of modern networks. With 48 10/100/1000 ports and 4 10Gb Ethernet SFP+ uplinks, it delivers performance and flexibility for high-speed connectivity. The unit supports features such as Layer 3 Lite switching, quality of service, and VLANs, which enhance traffic management, security, and network efficiency. Its stackable design allows for scalability, accommodating up to 4 units in a stack, making it suitable for growing network infrastructures. Equipped with a power budget of 770 W for PoE++, this switch efficiently powers connected devices while maintaining reliable operation in various environmental conditions.
