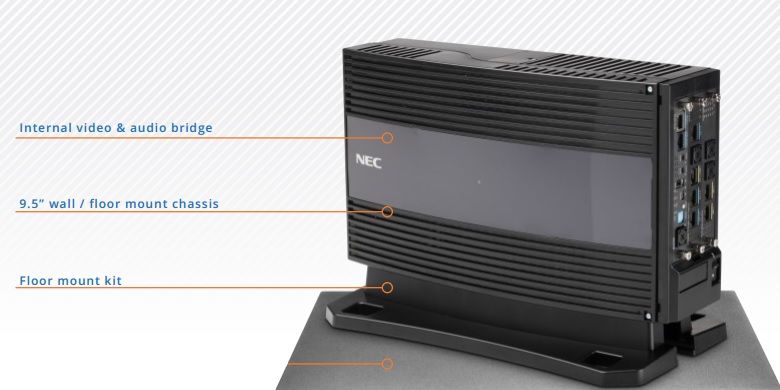

NEC SV9100 9.5 INCH CHASSIS

NEC SV9100 9.5 INCH CHASSIS

£254.44 GBP
Sale price: £254.44 GBP Regular price: £0.00 GBP
(VAT Incl.)
Shipping calculated at checkout.

Compact Power, Smart Communication

In stock, 2 units
EAN: BE113296
SKU: BE113296
Vendor: NEC
Order within xx hours for delivery on
Quantity
  • Product Type: Unified Communications System Chassis
  • Model: NEC SV9100 9.5-Inch Chassis (CHS2UG Gateway Chassis)
  • Form Factor: 9.5-inch Wall/Floor Mountable
  • Interface Slots: 3 Universal Card Slots
  • Supported Technologies: Analog, Digital & IP Telephony
  • TDM Extension Capacity: Up to 32 Extensions
  • IP Extension Capacity: Up to 896 IP Terminals (system dependent)
  • System Voltage: AC 100–240V, 50/60Hz
  • Dimensions: 369mm (W) × 111mm (D) × 215mm (H)
  • Weight: Approx. 4.5 kg
  • Operating Temperature: 0°C to 40°C
  • Mounting Options: Wall Mount or Floor Mount
  • NEC SV9100 9.5-Inch Chassis Unit
  • Power Supply Unit
  • Mounting Hardware Kit
  • Warranty Documentation

Overview

The NEC UNIVERGE SV9100 9.5-inch chassis is a space-efficient communication server built for small to medium business environments requiring reliable voice and unified communications capabilities. Designed for wall or floor mounting, this chassis supports modular interface cards that enable analog, digital, and VoIP connectivity in a single system. With three universal slots, it allows flexible expansion while maintaining a compact footprint ideal for offices with limited space. The system supports unified messaging, mobility solutions, SIP networking, and centralized management through web-based tools. Businesses can later migrate or expand into larger SV9100 configurations, protecting long-term investment while ensuring seamless scalability. The chassis supports both traditional telephony and modern IP endpoints, making it suitable for hybrid communication deployments.

Technical Features
  • Compact chassis designed for small business deployments
  • Modular blade architecture for flexible expansion
  • Supports unified communications and VoIP integration
  • Centralized web-based configuration and management
  • Hybrid support for analog, digital and IP endpoints
  • Upgradeable to larger SV9100 system configurations
  • Built-in support for mobility and UC applications
  • Energy-efficient and space-saving design
