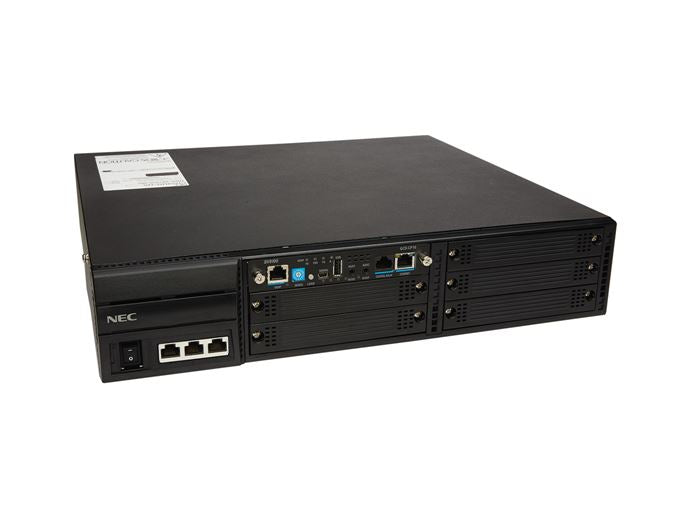

NEC SV9100 19 INCH CHASSIS

NEC SV9100 19 INCH CHASSIS

£306.70 GBP
Sale price: £306.70 GBP Regular price: £0.00 GBP
(VAT Incl.)
Shipping calculated at checkout.

Powering Business Communications

In stock, 3 units
EAN: BE112988
SKU: BE112988
Vendor: NEC
Order within xx hours for delivery on
Quantity
  • Product Type: Unified Communications System Chassis
  • Model: NEC SV9100 19-Inch Chassis (CHS2UG / BE112988)
  • Form Factor: 19-inch Rack Mountable (2U)
  • Universal Slots: 6 Card Slots per Chassis
  • Expansion: 1 Bus Slot for System Expansion
  • System Capacity: Up to 1,296 Ports (with expansion)
  • Supported Technologies: IP, Digital & Analog Telephony
  • Power Input: 100–240V AC, 50/60Hz
  • Dimensions (HxWxD): Approx. 88 × 430 × 390 mm
  • Empty Chassis Weight: Approx. 6.35 kg
  • Mounting Options: Rack, Wall, Floor or Stand Mount
  • NEC SV9100 19-Inch Chassis Unit
  • AC Power Cable
  • Rack Mount Brackets
  • Installation Hardware
  • Warranty Documentation

Overview

The NEC UNIVERGE SV9100 19-inch chassis is a scalable communication server enclosure built to support enterprise voice, unified communications, and networking applications. Designed for rack installation, it accommodates multiple interface and processor cards that enable analog, digital, and IP telephony integration within a single system. The chassis uses a modular blade architecture, allowing businesses to expand capacity as communication needs grow. It supports unified messaging, mobility solutions, VoIP connectivity, and collaboration tools while maintaining centralized system management. With stackable capability and support for multiple chassis configurations, it enables organizations to scale from small deployments to large multi-site environments efficiently.

Technical Features
  • Rack-stackable architecture for scalable deployments
  • Supports unified communications and VoIP integration
  • Modular blade design for flexible configuration
  • Centralized web-based system management
  • Supports analog, digital and SIP/IP endpoints
  • Expandable by linking multiple chassis together
  • Built-in support for voicemail and collaboration features
  • Enterprise-grade reliability for SMB and large offices
