MSI AM5 PRO B850-S EVO WIFI
Regular price
£130.63 GBP
Sale price:
£130.63 GBP
Regular price:
(VAT Excl.)
Shipping calculated at checkout.
- 2.5G LAN with Wi-Fi 6E Solution
In stock, 157 units
Internal I/O
| Number of M.2 (M) slots | 3 |
|---|---|
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Total number of SATA connectors | 4 |
| Front panel connector | Yes |
| Audio connector | Yes |
| Supported storage drive interfaces | M.2, SATA |
| USB 2.0 connectors | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| TPM connector | Yes |
| Power fan connector | Yes |
| Number of SATA connectors | 0 |
| Number of SATA III connectors | 4 |
| Number of SATA II connectors | 0 |
| Number of COM connectors | 1 |
| Front panel audio connector | Yes |
| CPU fan connector | Yes |
| Chassis intrusion connector | Yes |
| RGB LED pin header | Yes |
| Number of CPU fan connectors | 1 |
Technical details
| Motherboard chipset family | AMD |
|---|---|
| Motherboard chipset | AMD B850 |
| Parallel processing technology support | Not supported |
| On-board graphics card | No |
| HDMI version | 2.1 |
| Motherboard form factor | ATX |
| Component for | PC |
| Legal guarantee | 3 year(s) |
Audio
| Audio output channels | 7.1 channels |
|---|
Performance
| Number of HDDs supported | 4 |
|---|---|
| Supported storage drive types | HDD & SSD |
| RAID levels | 0, 1, 10 |
Processor
| Processor manufacturer | AMD |
|---|---|
| Compatible processor series | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Processor socket | Socket AM5 |
Memory
| Number of memory slots | 4 |
|---|---|
| Memory slots type | DIMM |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Dual-channel |
| Supported memory clock speeds | 8200,5600,4800 MHz |
| Maximum internal memory | 256 GB |
| Unbuffered memory | Yes |
| Supported memory clock speed (max) | 8200 MHz |
| ECC ?ompatibility | Non-ECC |
Storage controllers
| Number of storage drives supported | 7 |
|---|---|
| RAID support | Yes |
Rear panel I/O ports
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| DisplayPort version | 1.4 |
| USB 2.0 ports quantity | 4 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DVI-D ports quantity | 0 |
| DisplayPorts quantity | 1 |
Network
| Ethernet LAN | Yes |
|---|---|
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 7 (802.11be) |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
Features
| Power source type | ATX |
|---|---|
| Audio chip | Realtek ALC897 |
| Product colour | Black |
Expansion slots
| PCI Express x1 (Gen 3.x) slots | 1 |
|---|---|
| PCI Express x16 (Gen 5.x) slots | 1 |
| PCI Express x4 (Gen 4.x) slots | 1 |
| 1st M.2 largest key size | 2280 |
| 1st M.2 highest PCI Express generation | 5.0 |
| 2nd M.2 largest key size | 22110 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| 3rd M.2 largest key size | 2280 |
| 3rd M.2 highest PCI Express generation | 4.0 |
BIOS
| BIOS type | UEFI AMI |
|---|---|
| BIOS memory size | 512 Mbit |
| ACPI version | 6.5 |
| System Management BIOS (SMBIOS) version | 3.7 |
Weight & dimensions
| Width | 243.8 mm |
|---|---|
| Depth | 304.8 mm |
Packaging content
| Cables included | SATA |
|---|---|
| Screws included | Yes |
| Antenna included | Yes |
Documents
MSI AM5 PRO B850-S EVO WIFI
Regular price
£130.63 GBP
Sale price:
£130.63 GBP
Regular price:
(VAT Excl.)
Overview

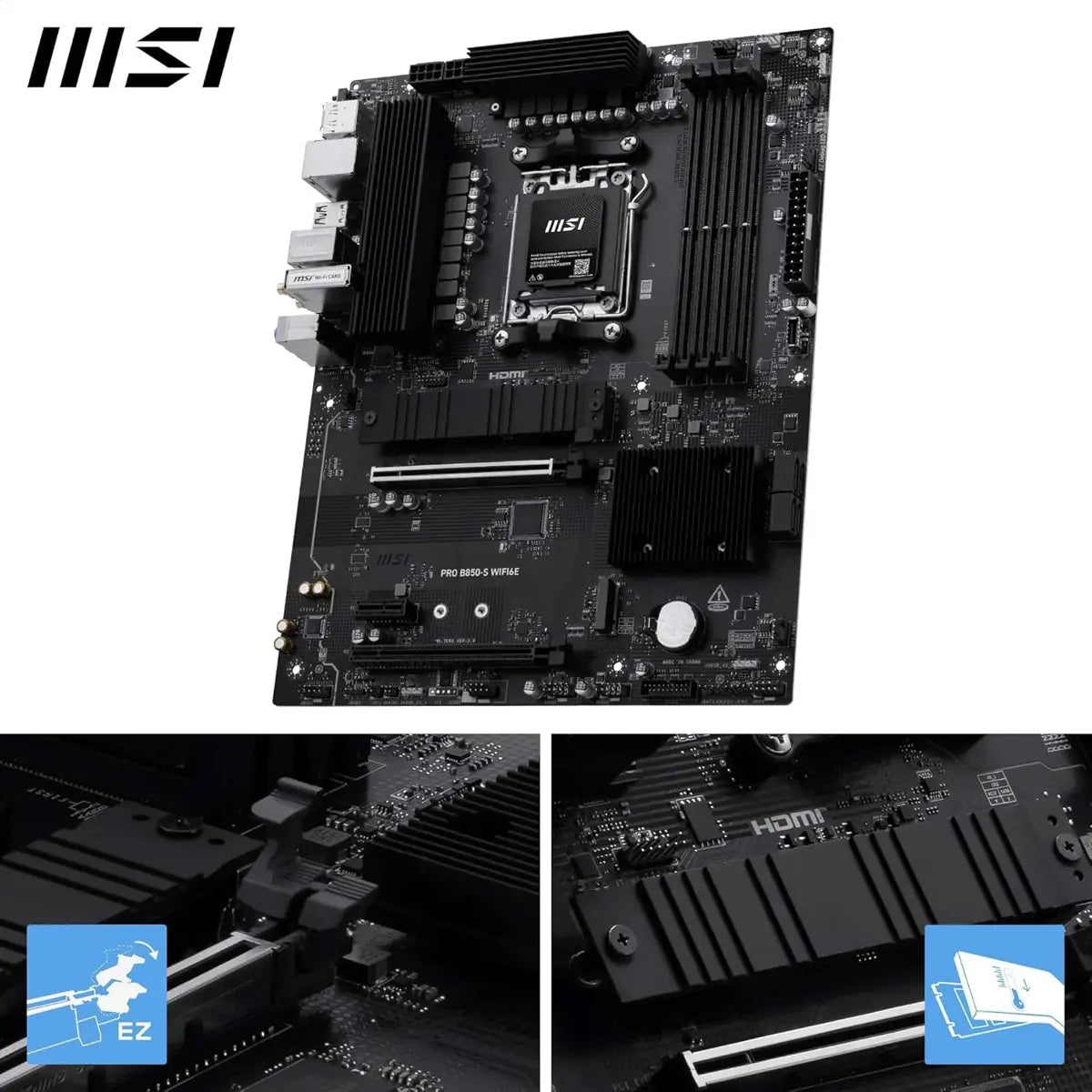

The MSI PRO B850-S EVO WIFI is a high-performance AM5 motherboard built for AMD Ryzen 9000, 8000, and 7000 series processors. It features a robust 12+2+1 power system and supports ultra-fast DDR5 memory speeds up to 8200+ MT/s. Connectivity is a major highlight, offering Wi-Fi 7, 5G LAN, and a PCIe 5.0 slot for next-gen graphics cards and SSDs. Designed for a seamless build experience, it includes EZ DIY features like tool-less M.2 heatsinks and a simplified PCIe release clip.
