MeetingBoard 65 Pro for Small and Medium Rooms, Manager Office
- Built-in Triple-eye Camera: 50MP
- Open Ecosystem: Flexible Conferencing on Multiple Platforms
- Powerful AI Enhanced Audio
- Powerful Camera AI Tracking
Product Specification
Box Content
Documents
Overview

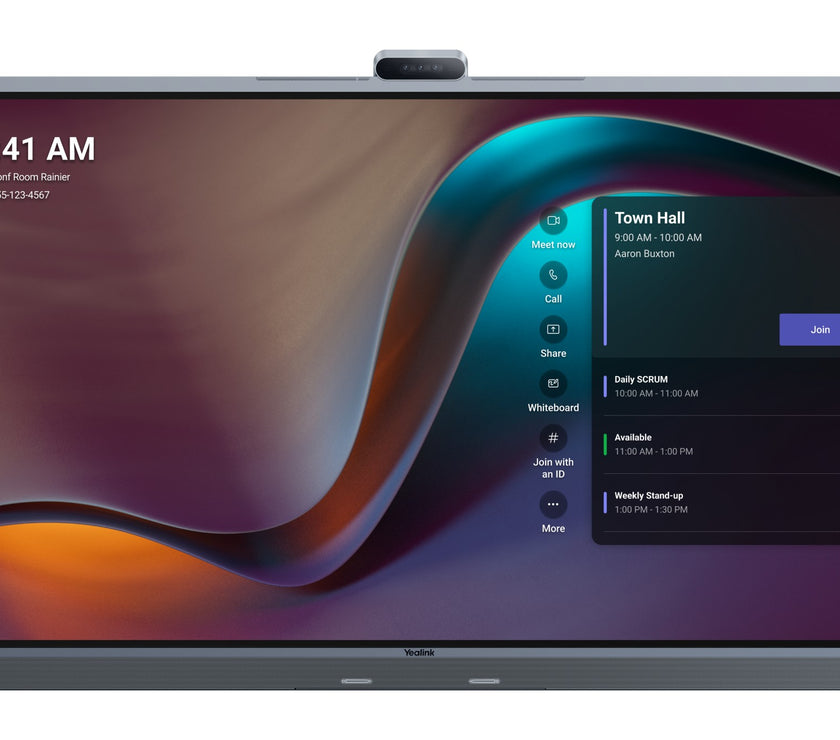

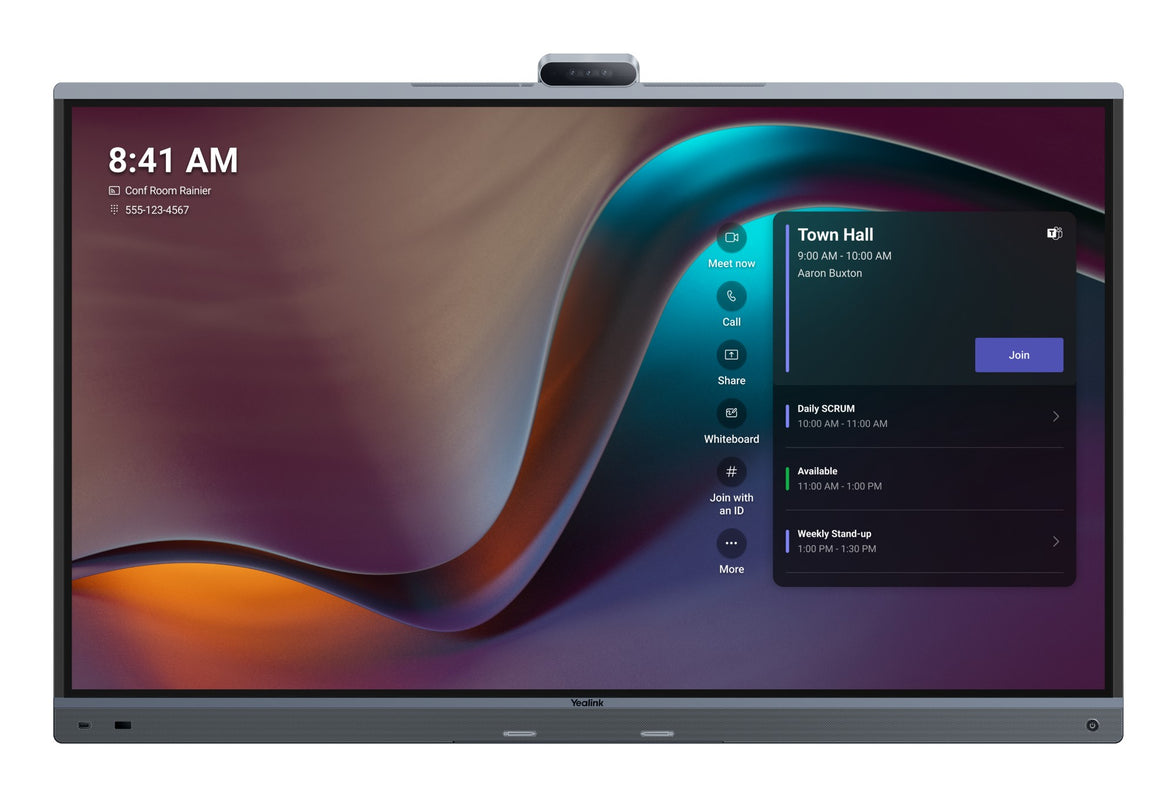

Yealink MB65PRO-A02 MeetingBoard Pro 65” is the latest all-in-one meeting device designed for small to medium rooms. This intelligent meeting device integrates video conferencing, HD wireless content sharing, and an electronic whiteboard, supporting up to 4K video call quality. It's all-in-one design and flexible mounting options offer easy installation and are perfect for seamless video conferencing. This product delivers cutting-edge audio and video communication capabilities, powered by advanced AI technology, ensuring crystal-clear sound and ultra-HD visuals. With intelligent full-duplex, IntelliFocus, and video fence, it redefines the video conferencing experience, bringing unparalleled clarity and efficiency to every meeting. The MeetingBoard Pro also supports native Teams and Zoom and is certified by both platforms.
Technical Features
- Display
- Size: 65 inch
- Anti-glare panel
- Resolution: 3840 x 2160
- Colour Gamut: 72% NTSC/99% sRGB
- Colour Depth: 1.07G (10bit)
- Contrast Ratio: 1200:1
- Brightness: 400 cd/m²
- Refresh Rate: 60 Hz
- Viewing Angle: 178°(H)/178°(V)
- System wake-up: Motion sensor
- Touch
- Touch Technology: Infrared
- Touch Height: 1.5 mm
- Touch Accuracy: ±1 mm
- Touch Points: 20 points
- Touch latency: 21 ms (Measured under yealink whiteboard)
- Four-level stylus

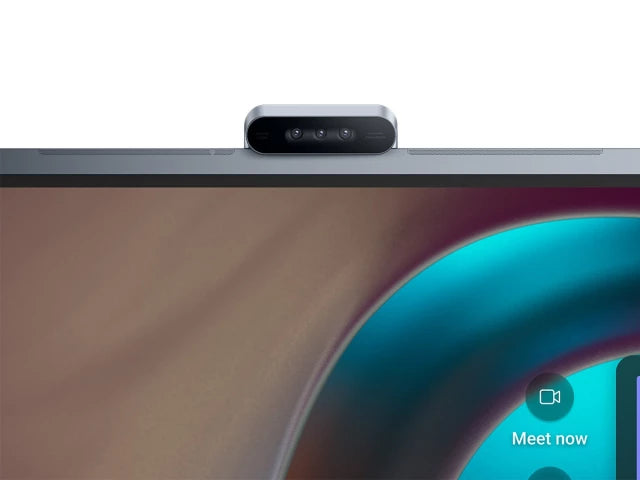

- Camera
- Max Resolution: Built-in triple 50MP camera
- Image Sensor: Sony Sensor X3
- Viewing angle: Wide-angle HFOV 98.2°
- PTZ type: Electronic pan-tilt
- Zoom/Digital zoom: 4x digital zoom
- Max resolution: 3840 x 2160
- Max frame rate: 60Hz
- Video output resolution: 3840 x 2160
- Autofocus: Supported
- Wide dynamic range: Supported
- High dynamic range imaging: Supported
- Exposure: Auto
- White balance: Auto/Manual/ATW
- Number of presets: 9
- Privacy shutter: Electric privacy shutter
- Optional Swappable optical zoom camera module: MB-12X Pro (8MP, Sony image sensor, 12x optical zoom, Lens angle: HFOV 90°, Horizontal rotation: ±100°, Vertical rotation: 0°/-90°)
- AI Smart Framing:
- Auto framing
- Speaker tracking
- Picture-in-picture (PIP)
- IntelliFocus
- Video fence
- Speakers
- Speakers: Stereo Speakers
- Frequency response: 90~20KHz
- Sensitivity: 87±3 dB SPL@0.5m, 1W
- Sampling rate: 48KHz
- Expansion output: Supports RCA output
- THD (Total Harmonic Distortion): at 20W, 1KHz, <5%
- Rated impedance: tweeter-4ohm, full-range speaker-8ohm
- Rated power: 30W
- Max power: 36W
- Microphones
- Built-in 16 MEMS microphone array
- Pickup distance: 12 meters full-duplex
- Signal-to-noise ratio: 70dB@1KHz
- Max sound pressure level: 130dB SPL
- Equivalent noise level: 24dB SPL
- Dynamic range: 24-130dB SPL
- Sensitivity: -38±1dBV/Pa
- Frequency response: 20Hz~20KHz
- Sampling rate: 48KHz
- Bit depth: 24-bit
- Expansion input: supports RCA input
- Video Resolution
- Lens resolution: supports up to 4K30fps
- Content sharing: supports up to 4K60fps (HDMI In) locally, and up to 4K15fps in meetings
- Content Sharing
- Wired screen sharing: HDMI In | VCH51
- Wireless screen sharing: AirPlay, Miracast, Wireless Presentation Pod (PA20)
- Audio Codec and Technology
- Yealink AI Audio 2.1
- Multi-channel echo cancellation processing
- Noise suppression technology
- Multi-channel reverberation cancellation technology
- Multi-channel acoustic echo cancellation
- Lip sync detection
- Automatic gain control
- Far-field full-duplex pickup technology
- Beamforming directional pickup technology
- CNG/PLC/AJB/De-Reverb
- Video Codec and Technology
- Video codecs: H.264 SVC, H.264 High Profile, H.264
- Network Protocols
- Wi-Fi 6: 2.4G & 5G dual-band, 802.11a/b/g/n/ac/ax, 2x2 MIMO
- Bluetooth 5.1
- TCP/IP (IPv4/IPv6), DHCP/Static IP
- HTTPS secure web access
