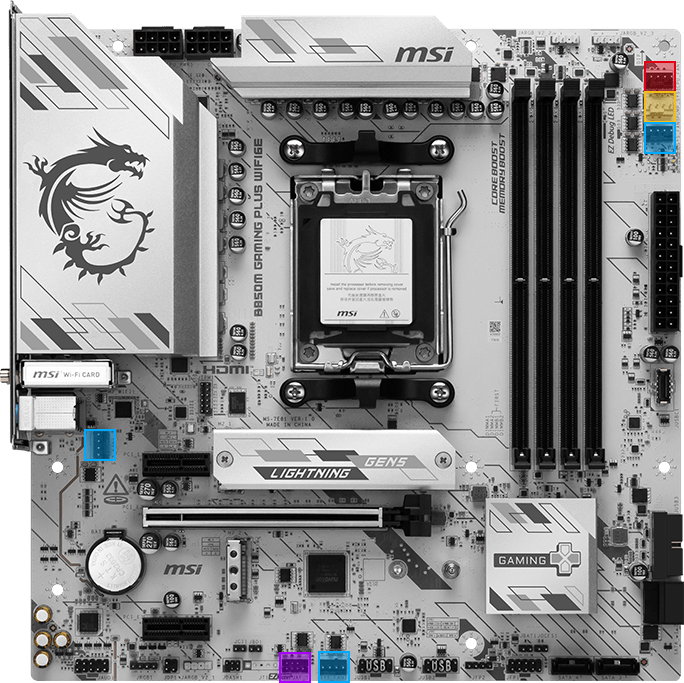

MSI AM5 B850M GAMING PLUS WIFI6E M-ATX

The MSI B850M GAMING PLUS WIFI6E delivers a balanced mix of performance, connectivity, and upgrade flexibility in a Micro-ATX form factor. Built on the AMD B850 chipset, it supports Ryzen 7000, 8000, and 9000 series processors alongside DDR5 memory speeds up to 8200+ MT/s through AMD EXPO overclocking support. The motherboard features a PCIe 5.0 x4 M.2 slot for ultra-fast NVMe SSDs, dual M.2 storage slots, and a reinforced PCIe graphics slot for modern GPUs. MSI equips the board with a 10+2+1 Duet Rail VRM power design, Extended Heatsink cooling, M.2 Shield Frozr, and Smart cooling features for stable gaming performance. Integrated Wi-Fi 6E, Bluetooth 5.3, and 2.5G LAN provide reliable high-speed networking for gaming and streaming setups. Community feedback frequently praises the clean layout, stable BIOS, and strong value for compact Ryzen gaming systems, especially when paired with Ryzen 5 and Ryzen 7 processors.

• Chipset: AMD B850
• CPU Socket: AM5
• Supported CPUs: AMD Ryzen 9000 / 8000 / 7000 Series
• Form Factor: Micro-ATX
• Memory Support: 4 x DDR5 DIMM Slots
• Maximum Memory Capacity: 256GB
• Memory Speed Support: DDR5 8200+ MT/s (OC)
• Memory Technology: AMD EXPO Support
• Power Design: 10+2+1 Duet Rail VRM
• Graphics Slot: 1 x PCIe 4.0 x16
• Expansion Slots: 2 x PCIe 3.0 x1
• M.2 Slots: 2 x M.2 NVMe Slots
• Primary Storage Slot: PCIe 5.0 x4 M.2
• SATA Ports: 4 x SATA 6Gb/s
• LAN: Realtek 2.5GbE Ethernet
• Wireless Connectivity: Wi-Fi 6E + Bluetooth 5.3
• Rear USB: USB 10Gbps Type-C, USB 10Gbps Type-A, USB 5Gbps Type-A
• Display Outputs: HDMI 2.1, DisplayPort 1.4
• Audio: Realtek ALC897 7.1 Channel HD Audio
• Cooling Features: Extended Heatsink & M.2 Shield Frozr
