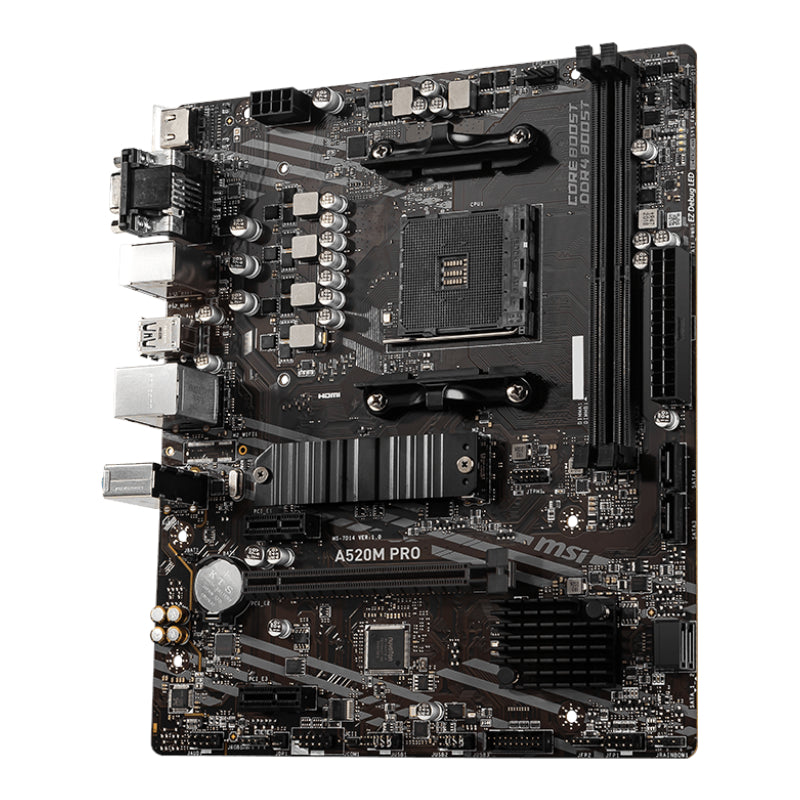

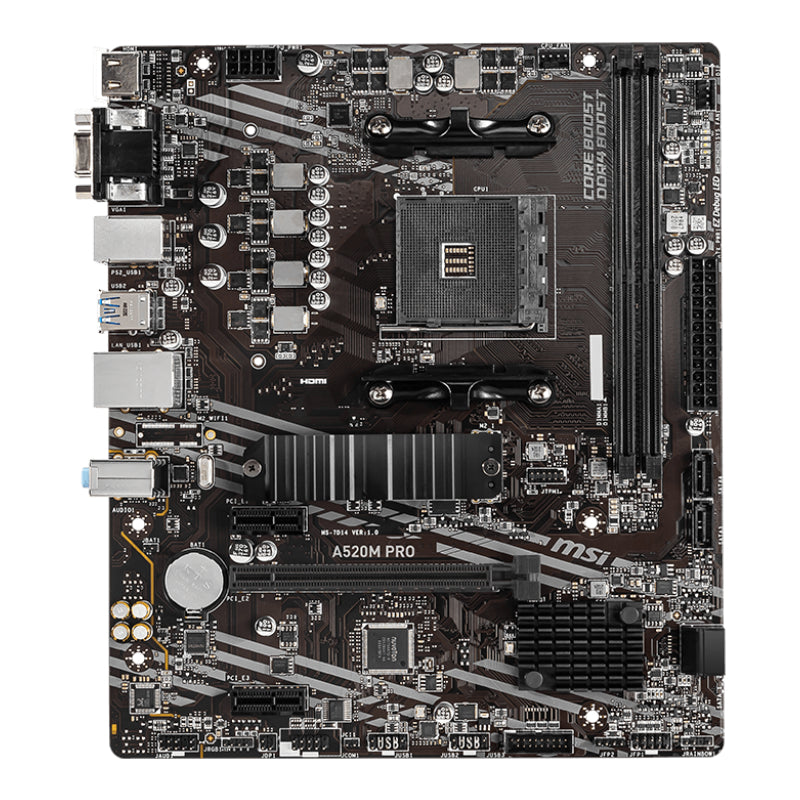

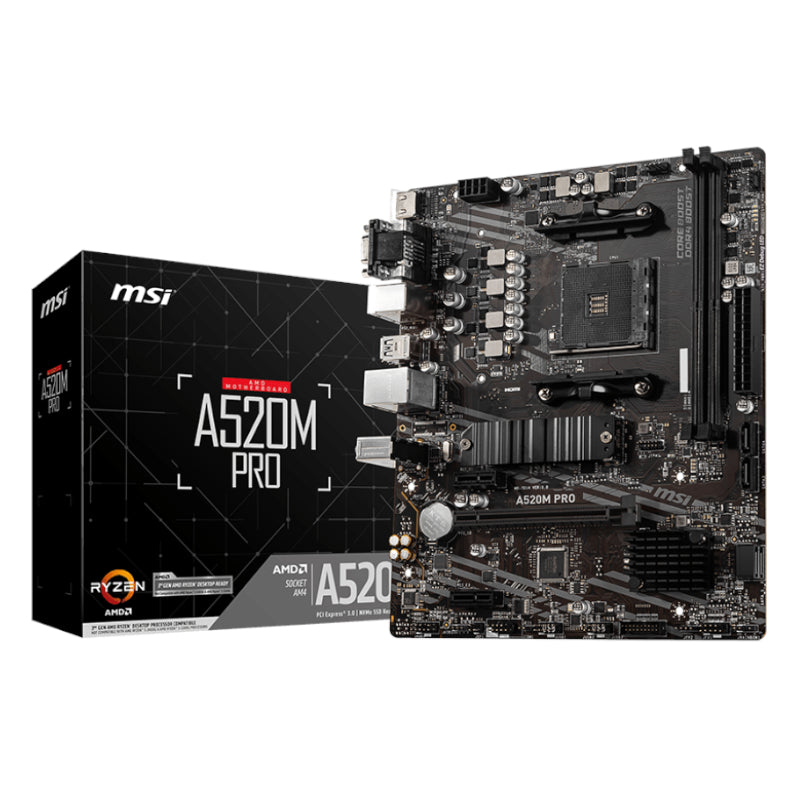

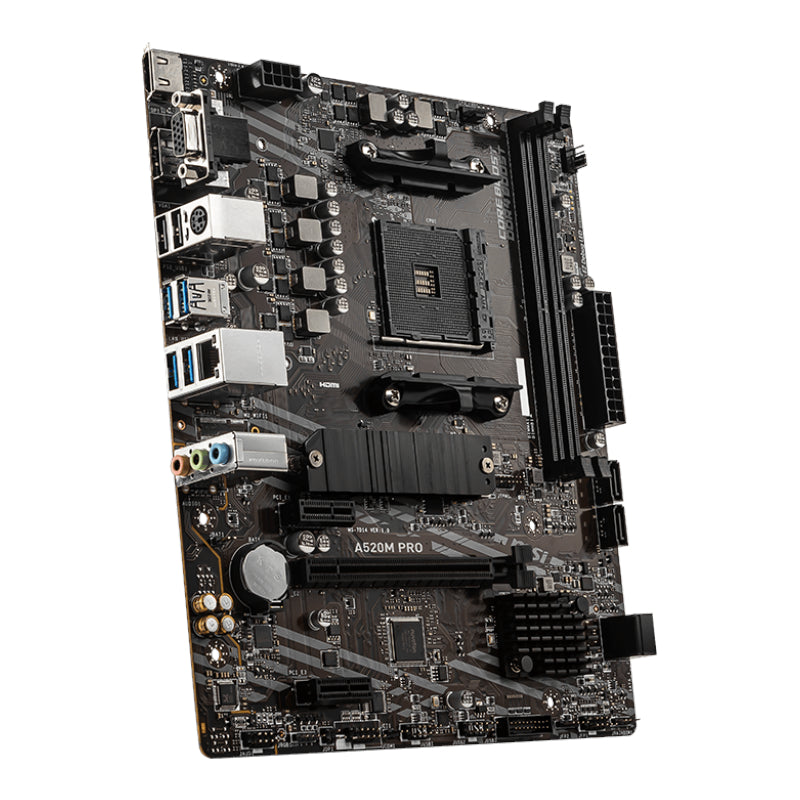

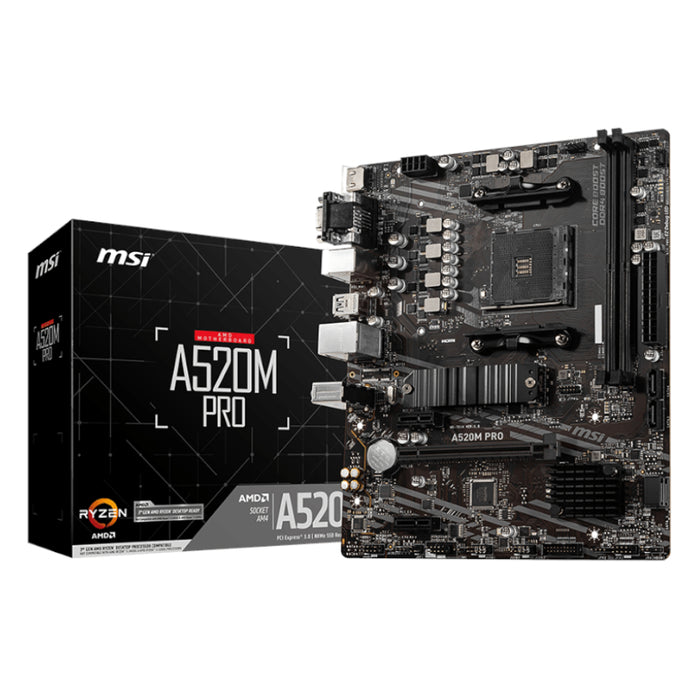

MSI AM4 A520M PRO M-ATX

Name: MSI AM4 A520M PRO M-ATX
Brand: MSI
SKU: A520M PRO
Price: 59.14 GBP
Availability: InStock

£59.14 GBP

£59.14 GBP ~~Regular price: £0.00 GBP~~

(VAT Incl.)

Shipping calculated at checkout.

Turbo M.2
2oz Thickened Copper PCB

In stock, 7 units

EAN: 4719072755492

SKU: A520M PRO

Vendor: MSI

Order within xx hours for delivery on

Product Specification

Memory Channel: Dual
DIMM Slots: 2
Max Memory: 64 GB
PCI-E x16: 1
PCI-E Generation: Gen3
PCI-E x1: 2
SATA III Ports: 4
M.2 Slot: 1
TPM Header: 1
RAID Support: 0/1/10
LAN: Realtek® RTL8111H Gigabit LAN
USB 3.2 (Front): 2 (Gen 1, Type A)
USB 3.2 (Rear): 4 (Gen 1, Type A)
USB 2.0 (Front): 4
USB 2.0 (Rear): 2 (Type A)
Serial Ports (Front): 1
Audio (Rear): Realtek® ALC892/ALC897 Codec
DisplayPort: 1
HDMI: 1
VGA: 1
DirectX: 12
Form Factor: M-ATX
Operating System: Windows® 10 64-bit support

Box Content

MSI A520M PRO AM4 mATX Motherboard – Black x1
SATA cables x2
I/O Shield x1
Driver DVD x1
Quick Install Guide x1

Documents

Technical Features

Processor Support: Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series and 3000 G-Series processors
Memory Support: Supports DDR4 Memory, up to 4600 (OC) MHz
Storage: Turbo M.2 running at PCI-E Gen3 x4 for NVMe SSD performance
Power Design: Core Boost with premium layout and digital power design for multi-core performance and stability
Memory Technology: DDR4 Boost for pure data signals and improved stability
PCB Design: 2oz Thickened Copper PCB for improved heat dissipation and reliability
Audio: Audio Boost for studio-grade sound quality

MSI AM4 A520M PRO M-ATX

£59.14 GBP

£59.14 GBP ~~Regular price: £0.00 GBP~~

(VAT Incl.)

Overview

MSI PRO Series motherboards are designed to satisfy any professional workflow. Elevate your listening pleasure and enjoy extreme sound quality. Moreover, with years of experience in creating performance-enhancing tools that are easy to use, only the highest quality applications are at your disposal. The extensive features let you fine-tune your system to deliver reliable maximum performance. Stay connected with Intel® LAN, optimized for stable internet throughput ideal for championship-level online plays.
