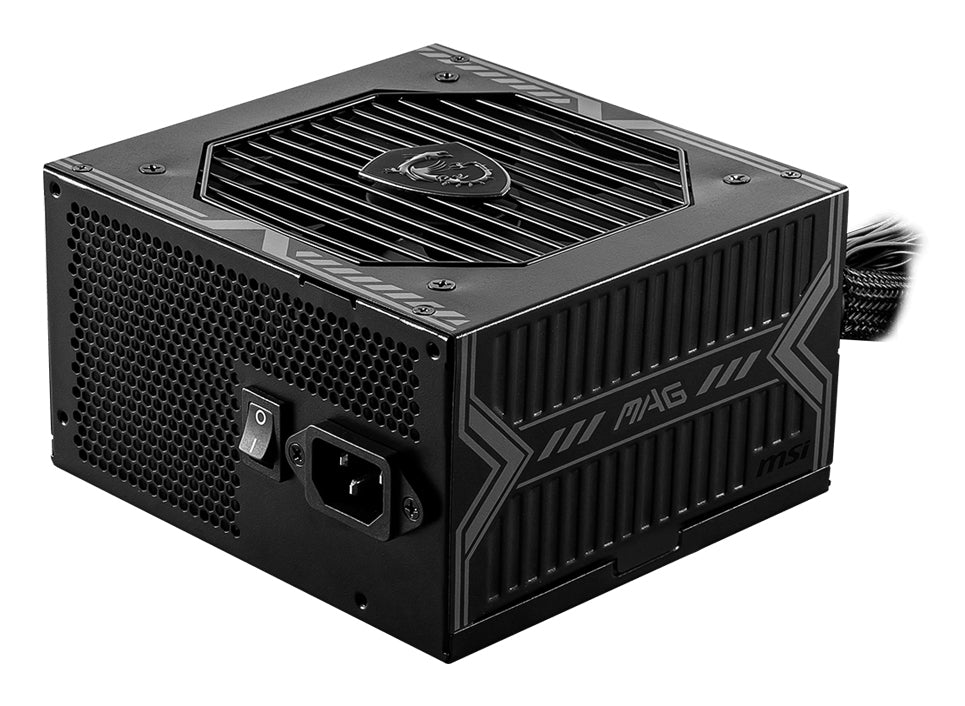

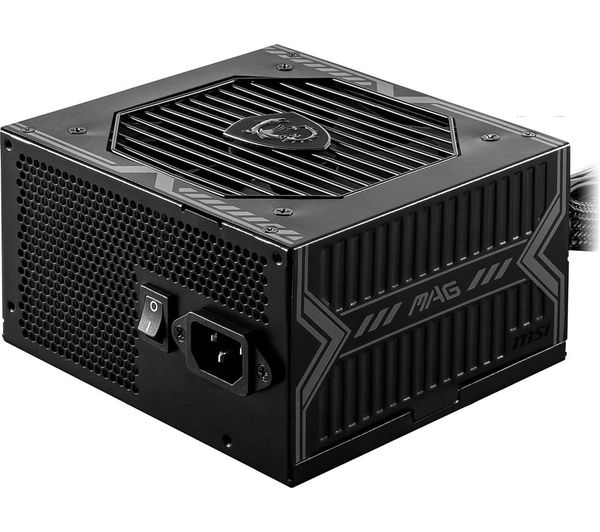

MSI 550W BRONZE STANDARD MAG A550BN

Name: MSI 550W BRONZE STANDARD MAG A550BN
Brand: MSI
SKU: MAG A550BN
Price: 35.38 GBP
Availability: OutOfStock

£35.38 GBP

£35.38 GBP ~~Regular price:~~

(VAT Excl.)

Shipping calculated at checkout.

Over Current Protection
Sleeve Bearing Fan

Out of stock

EAN: 4719072870485

SKU: MAG A550BN

Vendor: MSI

Order within xx hours for delivery on

Cooling

Fan diameter	12 cm
Number of fans	1 fan(s)
Cooling type	Active

Performance

On/off switch	Yes
Power supply unit (PSU) form factor	ATX
80 PLUS certification	80 PLUS Bronze
Purpose	PC
Harmonized System (HS) code	84733020

Design

Product colour	Black
Illumination	No

Power

Total power	550 W
Maximum input current (@220V)	4 A
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power Factor Correction (PFC) type	Active
Maximum input current (@110V)	8 A
Combined power (+3.3V)	110 W
Combined power (+12V)	546 W
Combined power (+5V)	110 W
Combined power (-12V)	3.6 W
Combined power (+5Vsb)	12.5 W
Max output current (+3.3V)	20 A
Max output current (+12V)	45.5 A
Max output current (+5V)	20 A
Max output current (-12V)	0.3 A
Max output current (+5Vsb)	2.5 A
Power protection features	Over current, Over power, Over voltage, Overheating, Short circuit
Efficiency	85%

Ports & interfaces

Motherboard power cable length	60 cm
Motherboard power connector	20+4 pin ATX
Number of SATA power connectors	5
Peripheral (Molex) power connectors (4-pin)	2
EPS power connector (8-pin)	No
PCI Express power connectors (6+2 pin)	2
CPU power connector (4+4 pin)	Yes
PCI Express connector	Yes
Floppy drive power connector	1
Floppy disk drive connector	Yes
ATX Power connector (24-pin)	No
ATX power connector (20+4 pin)	No
Cabling type	Non-Modular
EPS power connector (4+4 pin)	Yes

Weight & dimensions

Width	150 mm
Depth	140 mm
Height	86 mm

Documents

Datasheet

MSI 550W BRONZE STANDARD MAG A550BN

£35.38 GBP

£35.38 GBP ~~Regular price:~~

(VAT Excl.)

In stock

Overview

The MSI MAG A550BN is a budget-friendly 550W power supply unit (PSU) designed for entry-level and mid-range PC builds. It is popular for its 80 PLUS Bronze certification, which ensures up to 85% energy efficiency, and its reliable DC-DC circuit design that provides stable voltage output.
