Lanview by Logon 19" 42U Rack Cabinet 800 x 800mm Data Line

Name: Lanview by Logon 19" 42U Rack Cabinet 800 x 800mm Data Line
Brand: Lanview
SKU: RDL42U88BL
Price: 773.0 GBP
Availability: OutOfStock

£773.00 GBP

£773.00 GBP ~~Regular price:~~

(VAT Excl.)

Shipping calculated at checkout.

Double Glass Door
Free-Standing

Out of stock

EAN: 5420016846259

SKU: RDL42U88BL

Vendor: Lanview

Order within xx hours for delivery on

Product Specification

Size (Imperial): 48.3 cm (19")
Frame Type: Closed
Rack Capacity: 42U
International Protection (IP) Code: IP20
Back Door Construction: Steel
Front Door Construction: Glass / Steel
Side Panel Construction: Steel

Box Content

Fully Assembled Frame
Front Door
Rear Door
Side Panels
Adjustable Feet
Cable Entry Module
Accessory Kit

Documents

Datasheet

Technical Features

Rubber-Edged Sliding Entry: Bottom chassis wide cable entry with sliding module and rubber edges for secure, dust-proof cable routing
Vertical Integration: Designed to support vertical cable manager modules for managing large cable volumes
Tie-Up Side Brackets: Specialized side brackets for precise upward and downward cable routing and fixing
Heavy-Duty Load: Maximum static weight capacity of 2000 kg
Adjustable Mounting: 19" installation rails fully adjustable through cabinet depth
Structural Strength: Reinforced with side brackets and additional cube omega support points
Multi-Point Locking: Handle-locking front door with barrel-locking rear door and split side panels
Specialized Doors: 4mm break-resistant, tempered, anti-static smoke-colored glass front door with metal frame

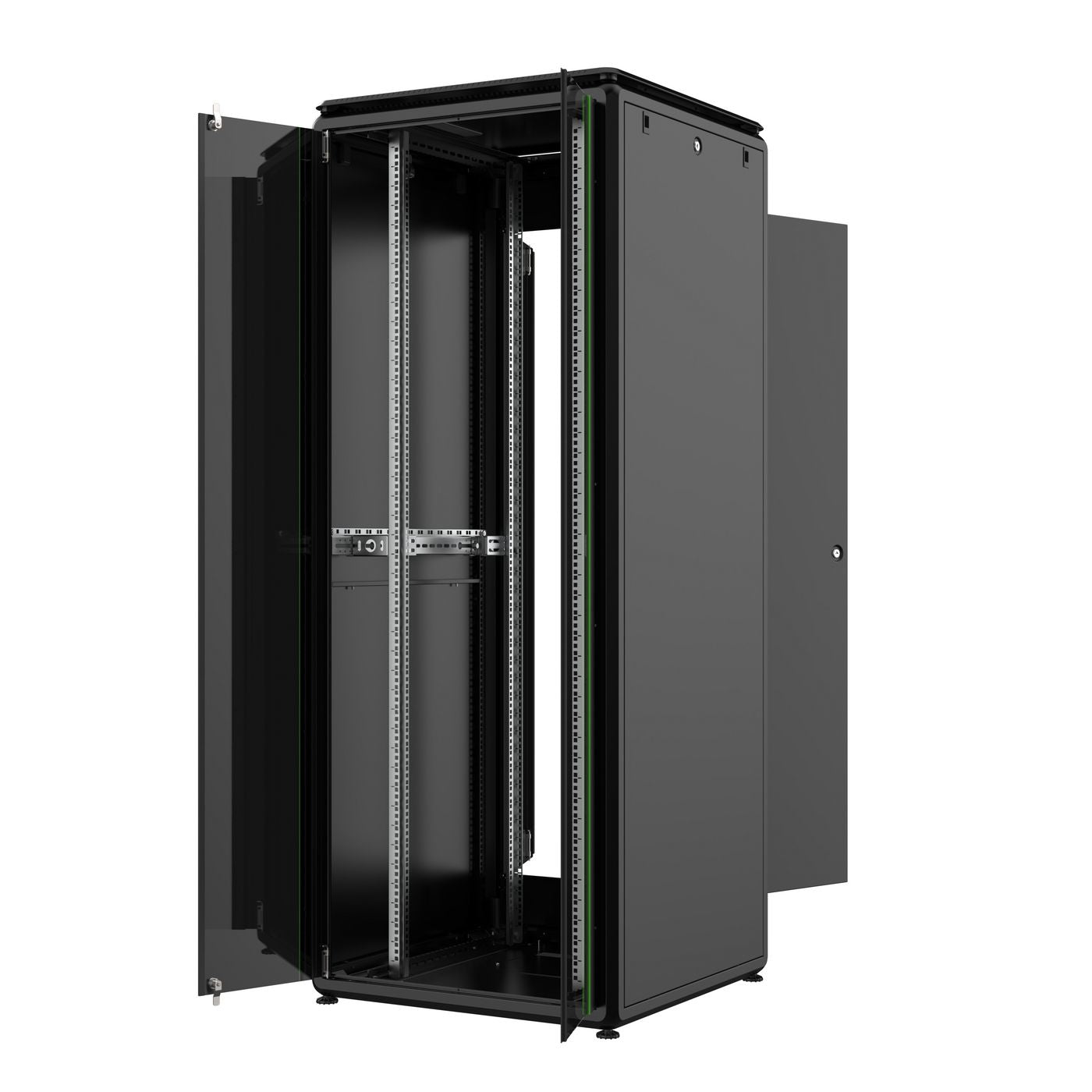

360-Degree Access: Vertically split, fully removable side panels for maintenance access
IP20 Rating: Protection against solid objects larger than 12.5mm
Passive Cooling: Passive airflow design with provision for optional fan units
Environmental Protection: Dust brush at cable entry points to minimize particle ingress

Lanview by Logon 19" 42U Rack Cabinet 800 x 800mm Data Line

£773.00 GBP

£773.00 GBP ~~Regular price:~~

(VAT Excl.)

Overview

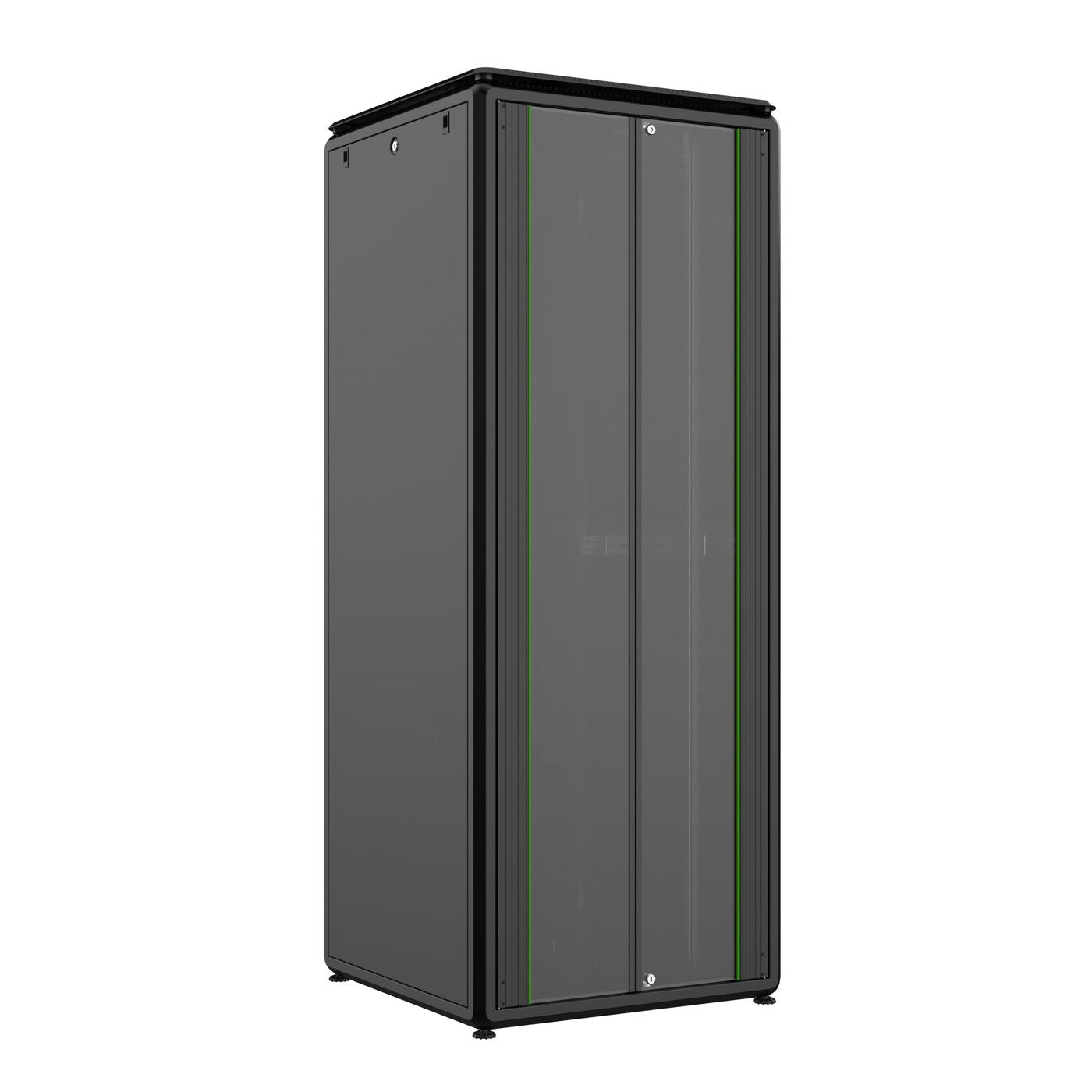

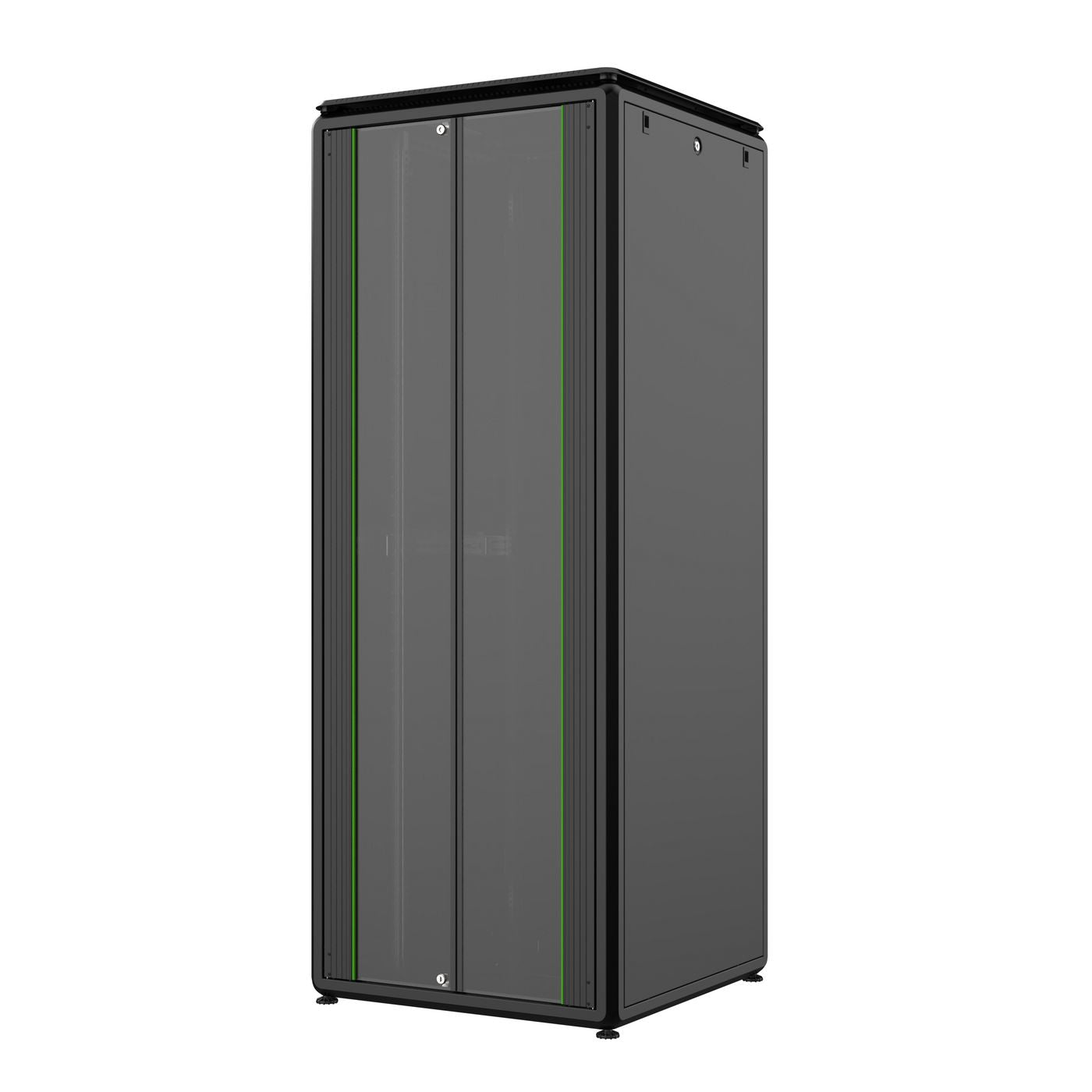

The Lanview by Logon 19" 42U Rack Cabinet (RDL42U88BL) is a robust, free-standing enclosure designed for professional data and network cabling environments. It features an 800 x 800mm footprint and a total height of 2053mm, providing 42U of space with a high static load capacity of up to 2000 kg. The design prioritizes accessibility with vertically split, removable side panels and a lockable tempered glass front door. For cable organization, it includes a wide, rubber-edged sliding entry at the bottom to ensure tidy wiring and a dust-proof seal.
