J5CREATE DUAL HDMI VIDEO CAPTURE

Name: J5CREATE DUAL HDMI VIDEO CAPTURE
Brand: J5CREATE
SKU: JVA06-N
Price: 105.47 GBP
Availability: InStock

£105.47 GBP

£105.47 GBP ~~Regular price: £0.00 GBP~~

(VAT Incl.)

Shipping calculated at checkout.

LED activity indicator
Flexible audio connection

In stock, 10 units

EAN: 4712795085563

SKU: JVA06-N

Vendor: J5CREATE

Order within xx hours for delivery on

Product Specification

Interface type: USB-C 3.0
Video input: HDMI input, HDMI output
Model: j5create JVA06-N
Digital video capture speed: 60 frames per second
Dimensions (WxDxH): 13.46 cm x 6.37 cm x 1.84 cm
Weight: 172 g
Device type: Video capture adapter
Minimum operating temperature: 0 °C
Maximum operating temperature: 45 °C
Width: 13.46 cm
Depth: 6.37 cm

Box Content

j5create JVA06-N - video capture adapter - USB-C 3.0

Documents

Technical Features

Video input: Dual HDMI input for capturing 2 channels
Recording interface: Full HD video and audio high performance record/playback through USB-C 3.1 Gen1
Capture quality: Uncompressed 1080p @ 60 FPS capture via HDMI 1.3a
Loop out: Supports 1080p 60 HDMI loop out (PGM out)
Screen modes: 6 screen mode configurations with PIP (Picture in Picture) and PBP (Picture by Picture)
Controls: Easily switch between different screen modes and adjust transition effects with built-in buttons | Directly activate Chroma Key features | Adjustable segmented window arrangements in PBP mode
Audio: Flexible audio connection via HDMI or external audio with 3.5 mm mic-in and speaker out | 3 individual audio mixer on/off switches supported | 3 channel volume indicators
Mounting: Easy DSLR attachment with 2 cold shoe adapters (included)
Power: Supports USB-C Power Delivery 3.0
Standard: UVC standard, plug & play
Indicators: LED activity indicator | HDMI IN | USB Link | Volume Unit

J5CREATE DUAL HDMI VIDEO CAPTURE

£105.47 GBP

£105.47 GBP ~~Regular price: £0.00 GBP~~

(VAT Incl.)

Overview

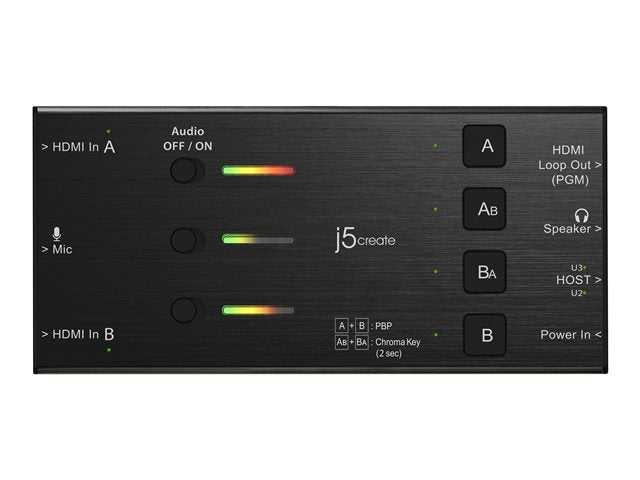

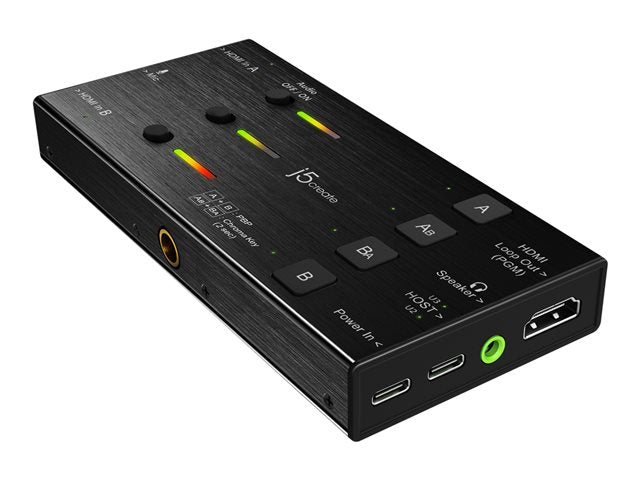

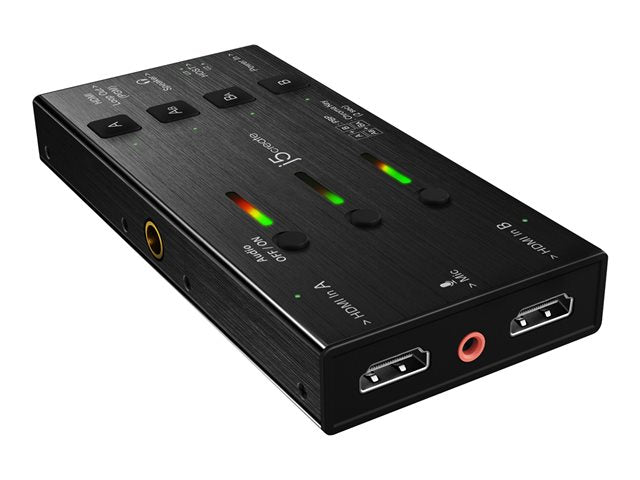

The JVA06 Dual HDMI Video Capture allows users to capture uncompressed 1080p video from two HDMI sources simultaneously and customize the content in real time. Whether you're live streaming or recording, there are six screen mode configurations available, including PIP (Picture in Picture) and PBP (Picture by Picture) displays. You can quickly adjust the display settings and transitions with the built-in buttons on the device. The JVA06 also features a Chroma Key application allowing users to drop in a new background image.
