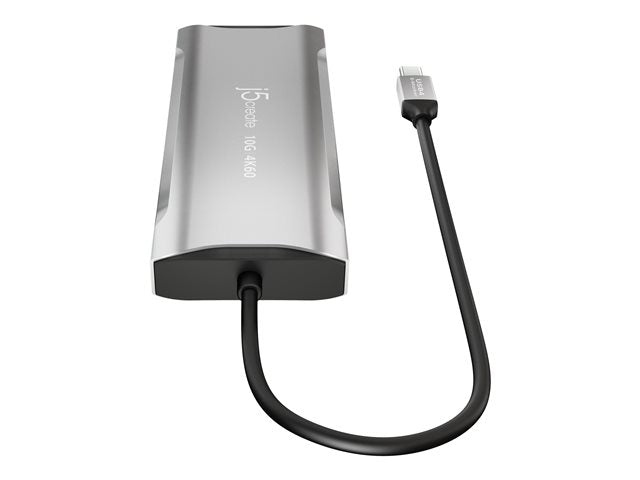

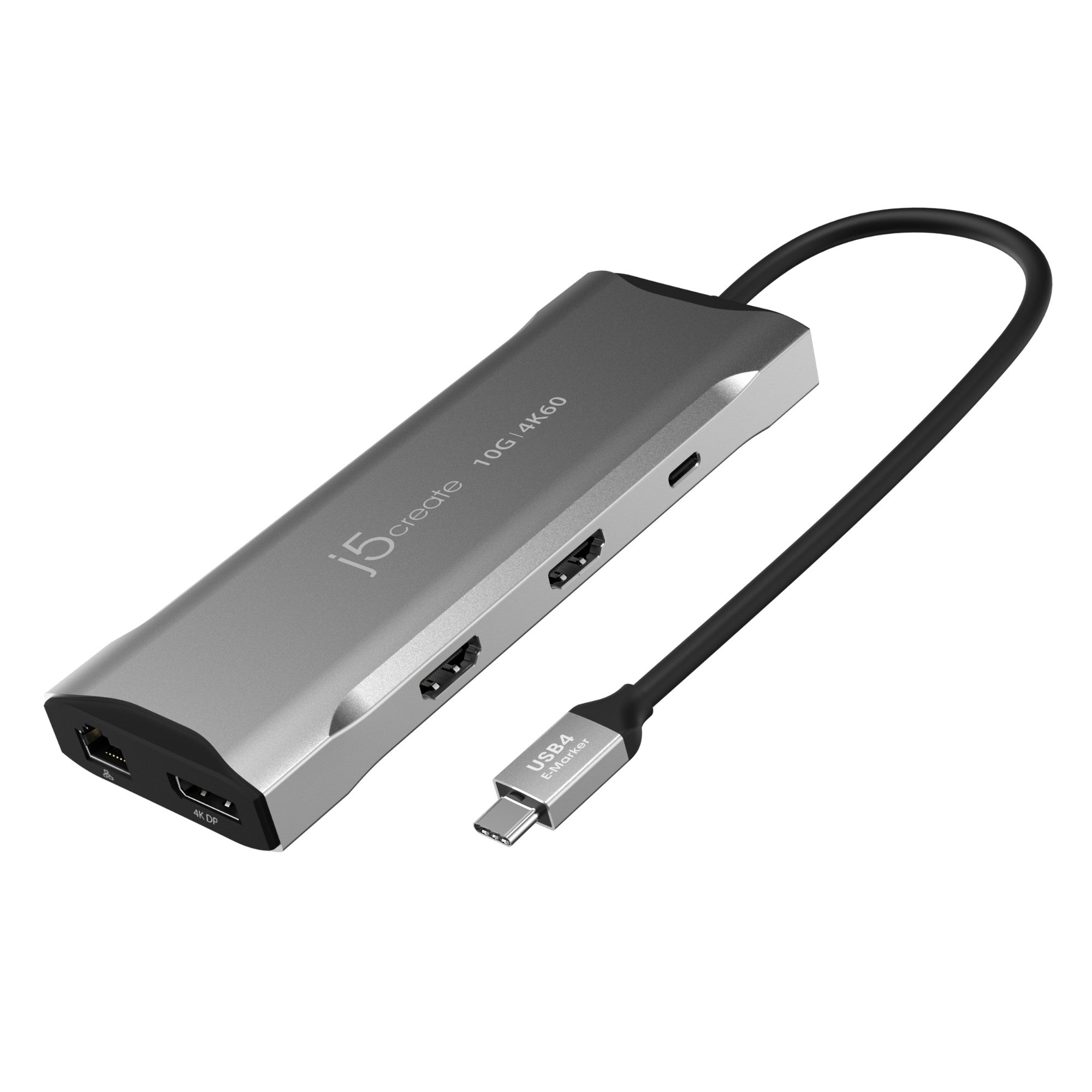

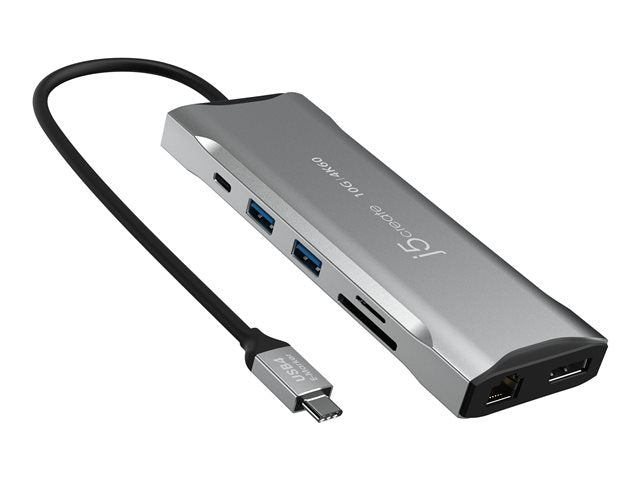

J5CREATE 4K60 ELITE USB-C TRIPLE-MONITOR

J5CREATE 4K60 ELITE USB-C TRIPLE-MONITOR

£72.46 GBP
Sale price: £72.46 GBP Regular price: £0.00 GBP
(VAT Incl.)
Shipping calculated at checkout.
  • Dynamic Power Delivery
  • High-resolution support
In stock, 5 units
EAN: 4712795086324
SKU: JCD397-N
Vendor: J5CREATE
Order within xx hours for delivery on
Quantity
  • Docking interface: USB-C / USB4 / Thunderbolt 3 / Thunderbolt 4
  • Model: j5create JCD397-N
  • Product type: Mini-dock
  • Weight: 123.5 g
  • Dimensions: Width 5.5 cm, Depth 1.7 cm, Height 14.8 cm
  • Min operating temperature: -1 °C
  • Max operating temperature: 41 °C
  • Video max resolution: 3840 x 2160 - 60 Hz / 3840 x 2160 - 30 Hz (Triple Display 2 x HDMI / DisplayPort) / 2560 x 1440 - 144 Hz (HDMI only) / 1920 x 1080 - 240 Hz (DisplayPort 1.4 only)
  • Networking: Ethernet, Fast Ethernet, Gigabit Ethernet
  • j5create JCD397-N - mini-dock - USB-C / USB4 / Thunderbolt 3

Overview

Equipped with an advanced USB-C E-Mark chip, this multi-monitor mini dock is compatible with USB4 hosts and devices, featuring everything you need, from triple video outputs to 10Gbps USB ports, as well as 100W Power Delivery pass-through charging. This USB-C mini dock supports DisplayPort 1.4 and Multi-Stream Transport (MST), giving you the ability to create a dual or triple 4K workstation with two HDMI and a DisplayPort output. It provides three USB SuperSpeed 10 Gbps ports (2 USB-C and 1 USB Type-A) for peripheral connectivity or downstream charging, an SD & microSD 4.0 memory card reader/writer to manage your media files, and a Gigabit Ethernet port to access a wired network. It also supports Power Delivery 3.0, providing up to 100W pass-through charging to power the connected peripherals and charge your host laptop with a USB-C power adapter.

Technical Features
  • Compatibility: Advanced USB-C E-Mark chip integrates USB4, Thunderbolt 3 and Thunderbolt 4 compatibility
  • Backward compatibility: Backward compatible with USB 3.1/3.2
  • USB ports: Three SuperSpeed USB 10Gbps downstream ports (1 USB-C and 2 Type-A) to connect peripherals
  • Power delivery: Charge and power connected laptop and peripherals with 100W Power Delivery
  • Card reader: SD & microSD 4.0 memory card reader/writer for media storage and transfer
  • Networking: Easily add a wired network connectivity with the Gigabit Ethernet port
  • Setup: Plug-and-play, no driver installation required
  • Display support: Extending one display up to 3840 x 2160 @ 60, easily switch to a higher refresh rate of 2560 x 1440 @ 144 via HDMI or 1920 x 1080 @ 240 via DP Port to enjoy your gaming under Windows OS
  • Multi-display support: Supports dual 4K 60 Hz or triple 4K 30 Hz (2 HDMI and 1 DisplayPort) on compatible USB-C laptops with DisplayPort 1.4 alt mode with MST support*
