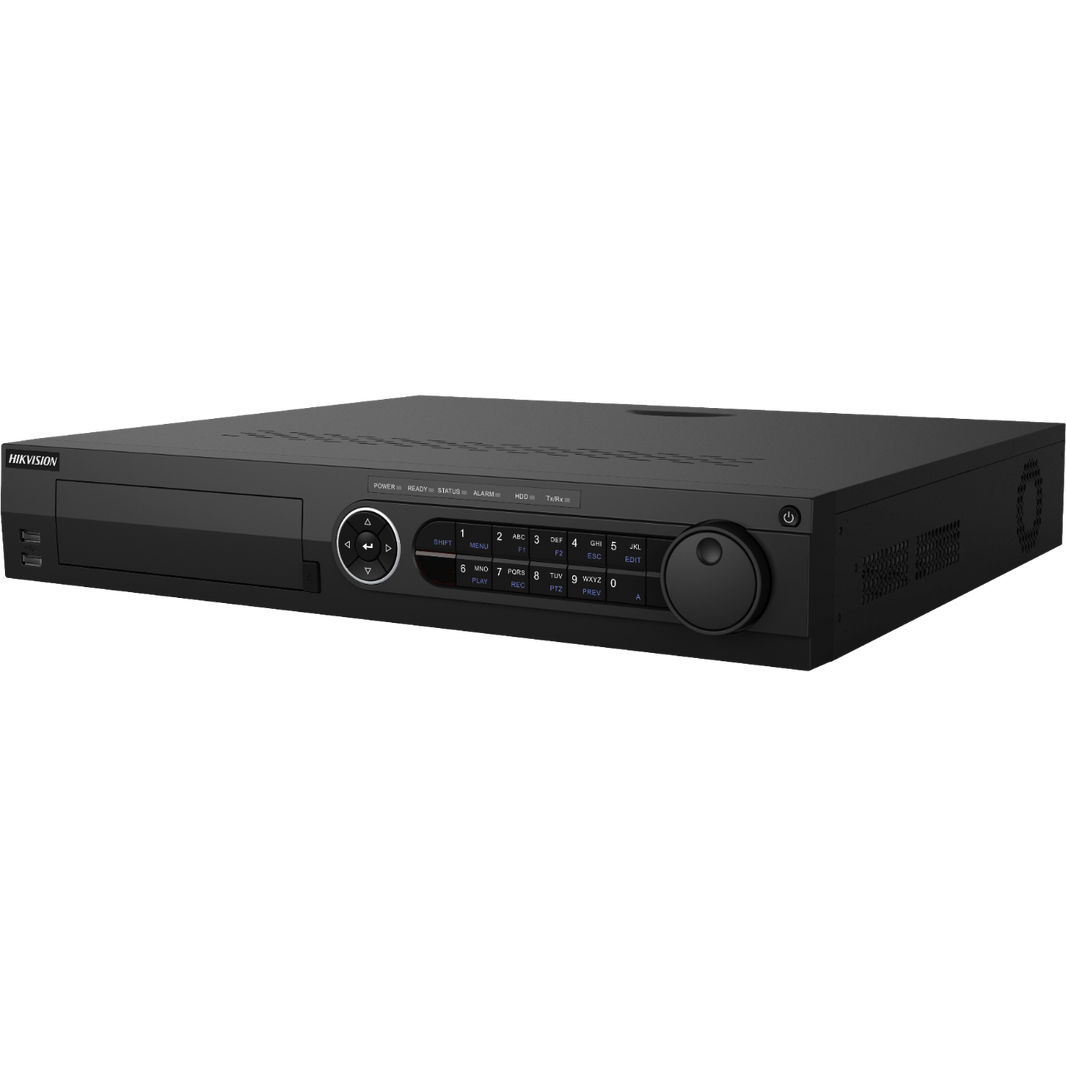

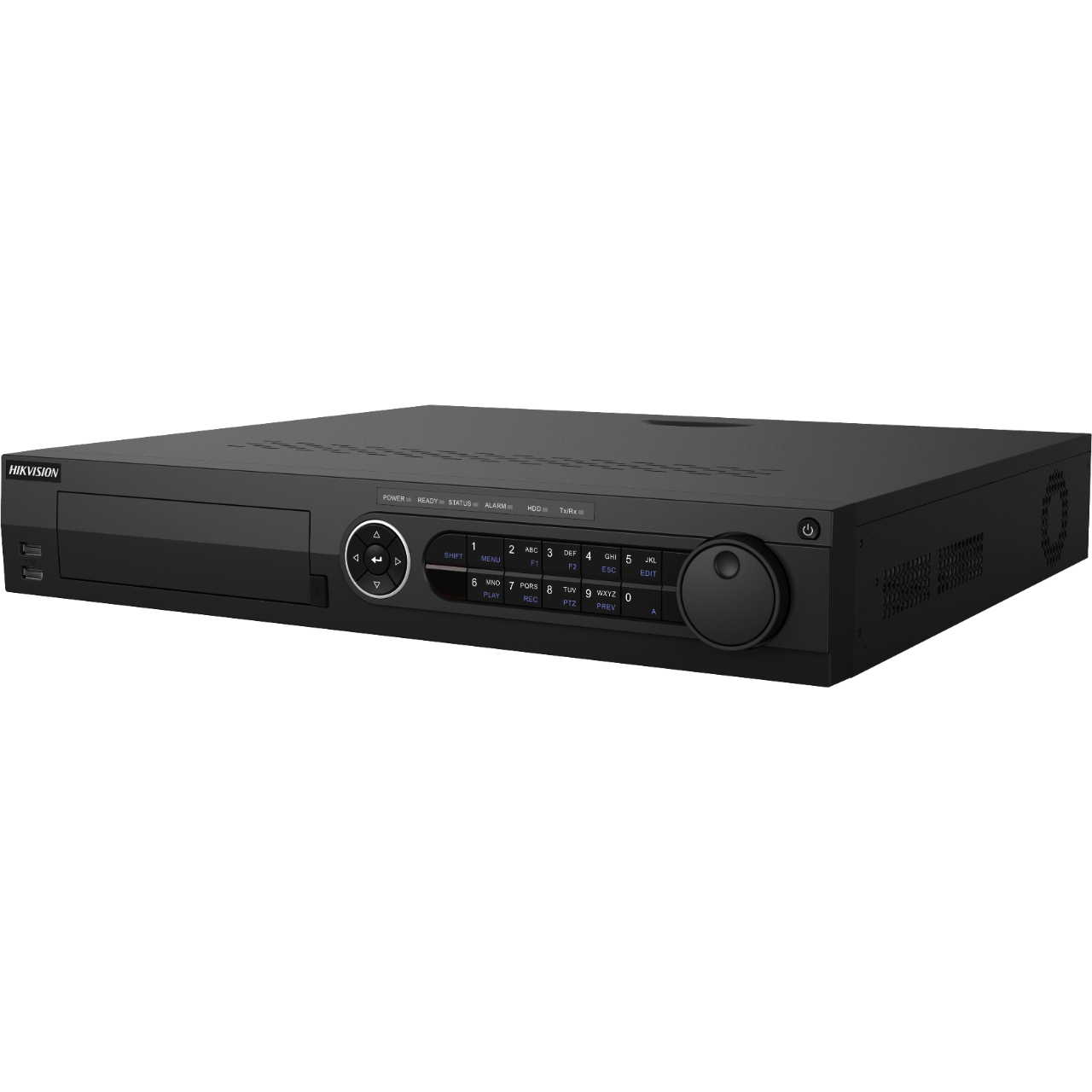

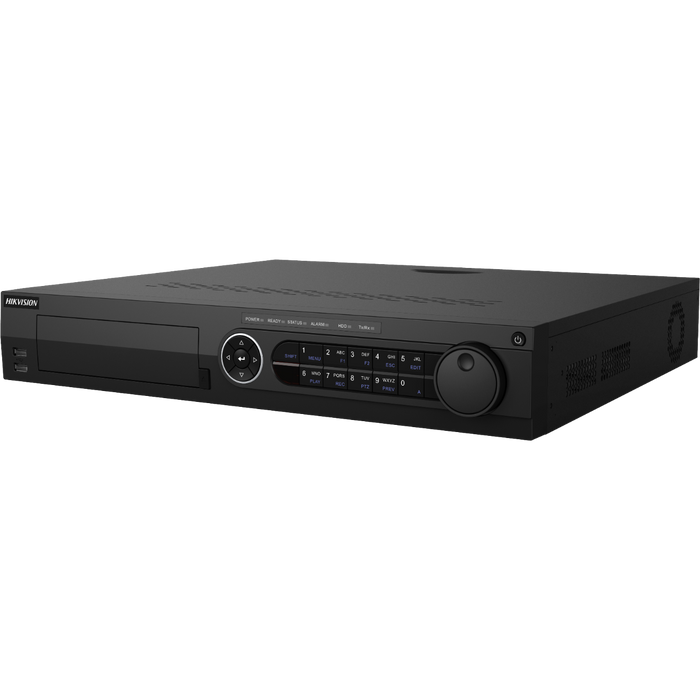

Hikvision IDS-7316HQHI-M4/S

Name: Hikvision IDS-7316HQHI-M4/S
Brand: Hikvision
SKU: 300228078
Price: 445.02 GBP
Availability: InStock

£445.02 GBP

£445.02 GBP ~~Regular price: £0.00 GBP~~

(VAT Incl.)

Shipping calculated at checkout.

Robust Multi?Channel CCTV Recorder

In stock, 1 unit

EAN: 6931847176617

SKU: 300228078

Vendor: Hikvision

Order within xx hours for delivery on

Product Specification

Supports 16 analog + hybrid IP camera inputs
4 SATA interfaces for high‑capacity storage (up to 48 TB total)
AcuSense deep learning motion detection and perimeter protection
Efficient H.265+/H.265/H.264+ compression to reduce storage needs
Simultaneous HDMI (4K) and VGA video output
POS data overlay support for retail environments
Advanced network protocols (Hik‑Connect, DDNS, ONVIF, HTTPS, etc.)
Alarm input/output support for external sensors and devices
USB 3.0 and USB 2.0 interfaces for backup and control
Supports remote viewing for up to 128 users

Box Content

1 × Hikvision iDS‑7316HQHI‑M4/S DVR unit
1 × Power Adapter / Cord
1 × USB Mouse

Documents

Technical Features

<ul>
<li>Brand: Hikvision</li>
<li>Model: iDS?7316HQHI?M4/S</li>
<li>Device Type: Hybrid DVR (AHD/TVI/HDCVI/CVBS + IP)</li>
<li>Analog Video Inputs: 16 BNC (HDTVI/AHD/HDCVI/CVBS)</li>
<li>IP Camera Inputs: Up to 20 channels (Hybrid configuration)</li>
<li>Recording Compression: H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264</li>
<li>Max Encode Resolution (Analog): 3K / 5?MP Lite / 4?MP (varies by channel)</li>
<li>Video Outputs: 1 × HDMI (up to 4K @30Hz), 1 × VGA</li>
<li>Audio Inputs/Outputs: 4?ch RCA / 2?ch RCA</li>
<li>Two?Way Audio: 1?ch RCA</li>
<li>Network Ports: 2 × RJ45 10/100/1000 Mbps</li>
<li>USB Ports: 2 × USB 2.0 (front), 1 × USB 3.0 (rear)</li>
<li>Storage Interfaces: 4 × SATA (up to 12?TB per disk), 1 × eSATA</li>
<li>Alarm I/O: 16 inputs / 4 outputs</li>
<li>Serial Interfaces: RS?232, RS?485</li>
<li>Max User Connections: 128</li>
<li>Total Bandwidth: 240?Mbps</li>
<li>Power Supply: 100?240?VAC, 50/60?Hz</li>
<li>Operating Temp: ?10?°C to +55?°C</li>
<li>Dimensions: 445 × 390 × 70?mm</li>
<li>Weight: ? 5?kg (without HDD)</li>
</ul>

Hikvision IDS-7316HQHI-M4/S

£445.02 GBP

£445.02 GBP ~~Regular price: £0.00 GBP~~

(VAT Incl.)

Overview

The Hikvision iDS?7316HQHI?M4/S is a powerful hybrid DVR that combines traditional analog CCTV channels with IP camera support, making it suitable for large surveillance systems in commercial and residential settings. It supports up to 16 analog camera inputs and expandable IP inputs (up to ~20 channels depending on configuration), all recorded with efficient H.265+/H.265/H.264+ compression. Featuring AcuSense motion detection and perimeter protection for reduced false alarms and rapid event search, it offers simultaneous HDMI (up to 4K), VGA, and CVBS outputs for flexible monitoring. The DVR includes 4 SATA interfaces for high?capacity storage (up to 12?TB per HDD), POS overlay support, and remote access capabilities over standard network protocols. With advanced networking, audio, alarm I/O, and USB interfaces, it’s ideal for comprehensive multi?camera security installations.
