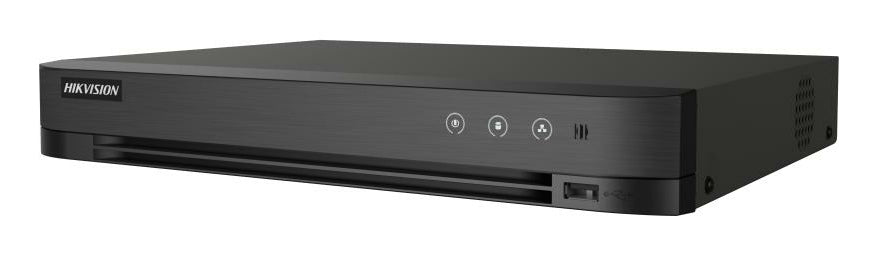

Hikvision iDS-7204HUHI-M1/XT/4A+4/1ALM

Name: Hikvision iDS-7204HUHI-M1/XT/4A+4/1ALM
Brand: Hikvision
SKU: iDS-7204HUHI-M1/XT
Price: 132.96 GBP
Availability: InStock

£132.96 GBP

£132.96 GBP ~~Regular price: £0.00 GBP~~

(VAT Incl.)

Shipping calculated at checkout.

4K Capability
Audio over Coax

In stock, 5 units

EAN: iDS-7204HUHI-M1/XT

SKU: iDS-7204HUHI-M1/XT

Vendor: Hikvision

Order within xx hours for delivery on

Product Specification

Human/Vehicle Analysis: Up to 4-ch
Facial Recognition: Supported
Face Picture Library: Up to 16 face picture libraries
Face Picture Comparison: Comparison and search; 2-ch comparison alarm (HD analog camera)
IP Video Input: 4-ch (up to 8-ch), each up to 8 MP
Analog Video Input: 4-ch BNC (1.0 Vp-p, 75 Ω), supports coaxitron
HDMI Output: 1-ch up to 2K (2560 × 1440)/60Hz; also 1920 × 1080, 1280 × 1024, 1280 × 720 @ 60Hz
VGA Output: 1-ch up to 1920 × 1080/60Hz; also 1280 × 1024, 1280 × 720 @ 60Hz
Simultaneous Output: HDMI and VGA simultaneous output supported

Box Content

1 × Hikvision Pro Series DVR
1 × Power Adapter
1 × Wired USB Mouse
SATA Accessory Kit
HDD Screws
Terminal Blocks
Documentation

Documents

Datasheet

Technical Features

4K Capability: Supports up to 8 MP recording on Channel 1 and 5 MP on other channels
Hybrid Flexibility: Connects up to 4 analog cameras plus up to 8 IP cameras (enhanced mode)
AcuSense Technology (AI): Deep learning distinguishes humans and vehicles from other motion, reducing false alarms
Perimeter Protection: Line crossing and intrusion detection on all 4 analog channels
Facial Recognition: Face picture comparison and search on 2 channels
Compression: H.265 Pro+ for reduced bandwidth and storage usage
Storage Capacity: Single SATA interface supporting hard drives up to 10 TB
Audio over Coax: Transmits video and audio via a single coaxial cable with compatible cameras
Alarm I/O: 4 alarm inputs and 1 alarm output for external sensors and devices

Hikvision iDS-7204HUHI-M1/XT/4A+4/1ALM

£132.96 GBP

£132.96 GBP ~~Regular price: £0.00 GBP~~

(VAT Incl.)

Overview

The Hikvision iDS-7204HUHI-M1/XT/4A+4/1ALM is a high-performance 4-channel AcuSense DVR designed to record analog cameras at up to 8 MP (4K) resolution. It uses deep-learning algorithms to provide advanced human and vehicle detection, significantly reducing false alarms from pets or moving leaves. The unit supports up to 8 IP camera channels in enhanced mode and features H.265 Pro+ compression to maximize storage efficiency on its single SATA drive. Additionally, it includes integrated alarm inputs/outputs and supports Audio over Coax, making it a versatile hub for professional-grade security setups.
