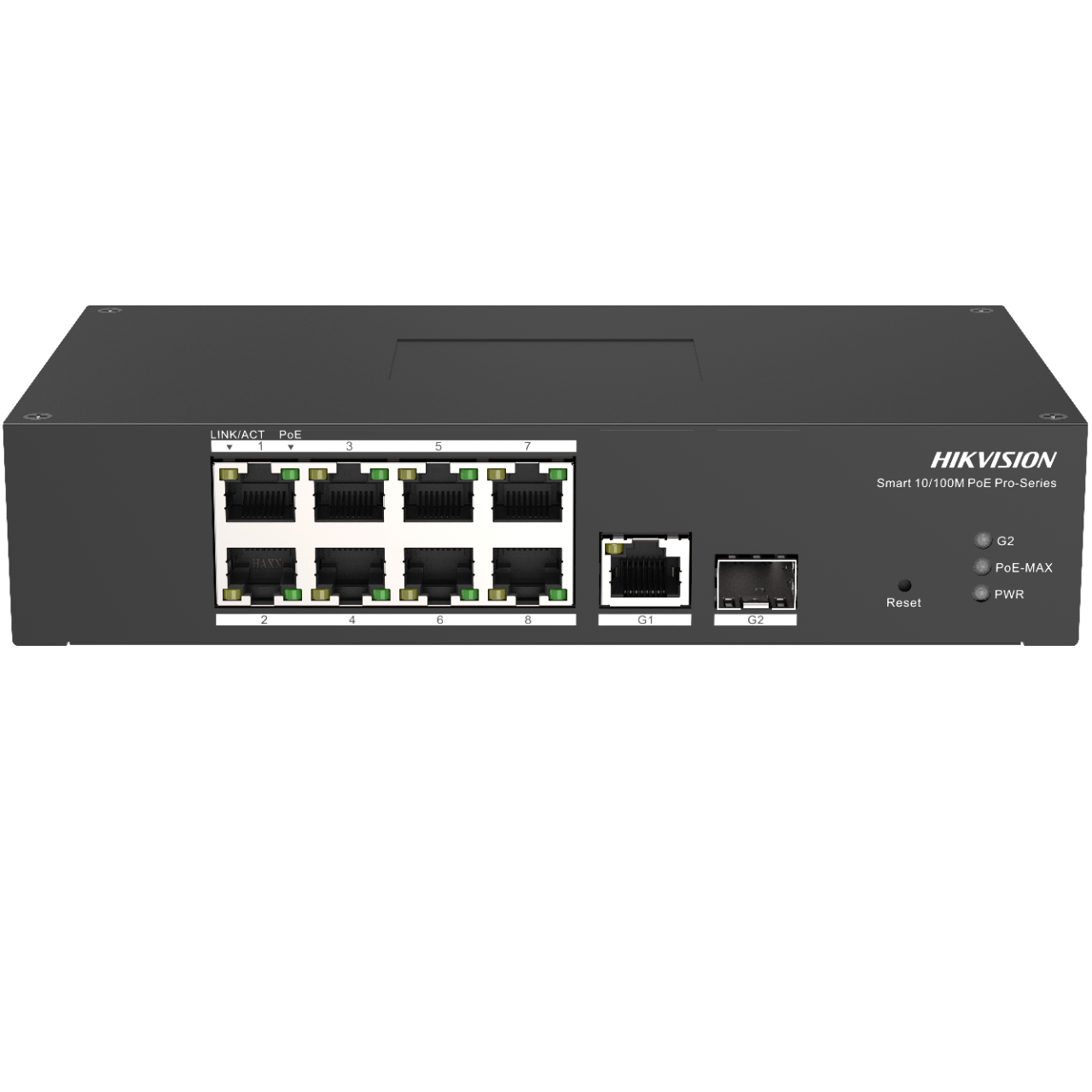

Hikvision DS-3T1310P-SI/HS

Name: Hikvision DS-3T1310P-SI/HS
Brand: Hikvision
SKU: 301802343
Price: 117.56 GBP
Availability: InStock

£117.56 GBP

£117.56 GBP ~~Regular price: £0.00 GBP~~

(VAT Incl.)

Shipping calculated at checkout.

Visualized topology management
Network health monitor

In stock, 1 unit

EAN: 6931847175481

SKU: 301802343

Vendor: Hikvision

Order within xx hours for delivery on

Product Specification

Shell: Metal material
Net Weight: 0.6 kg (1.3 lb)
Gross Weight: 1.2 kg (2.6 lb)
Dimensions (W × H × D): 197.00 mm × 114.20 mm × 42.20 mm (7.70'' × 4.40'' × 1.60'')
Operating Temperature: -30 °C to 65 °C (-22 °F to 149 °F)
Storage Temperature: -40 °C to 85 °C (-40 °F to 185 °F)
Operating Humidity: 5% to 95% (no condensation)
Relative Humidity: 5% to 95% (no condensation)
Power Supply: 48VDC, 2.5A
Installation Mode: Desk-Mounted, Rail
Max. Power Consumption: 120 W
Power Consumption in Idle: 10 W
Surge Protection: 6 kV

Box Content

HIKVISION DS-3T1310P-SI/HS

Documents

Datasheet

Technical Features

Topology management: Visualized topology management
Network monitoring: Network health monitor
Layer 2 features: PoE watchdog, STP/RSTP, VLAN, SNMP, QoS, ERPS, etc.
Operating temperature: -30°C to 65°C wide temperature range in harsh environment

Hikvision DS-3T1310P-SI/HS

£117.56 GBP

£117.56 GBP ~~Regular price: £0.00 GBP~~

(VAT Incl.)

Overview

The Hikvision DS-3T1310P-SI/HS is an 8-port smart managed PoE switch specifically engineered for stable operation in extreme industrial conditions. It features 8 Fast Ethernet PoE ports with a 110 W total power budget, alongside two gigabit uplinks (one RJ45 and one SFP) for flexible high-speed connectivity. Built with a durable IP40-rated metal shell, the device functions reliably across a wide temperature spectrum from -30°C to 65°C. Advanced software capabilities include a PoE watchdog to automatically restart unresponsive cameras, long-range transmission up to 300 meters, and visualized topology management. It further enhances network security and performance through Layer 2 features such as VLAN segmentation, Quality of Service (QoS) prioritization, and 6 kV surge protection.
